• Donaldson Head Assembly, Hmk04 Duramax - Donaldson P166862
1 1

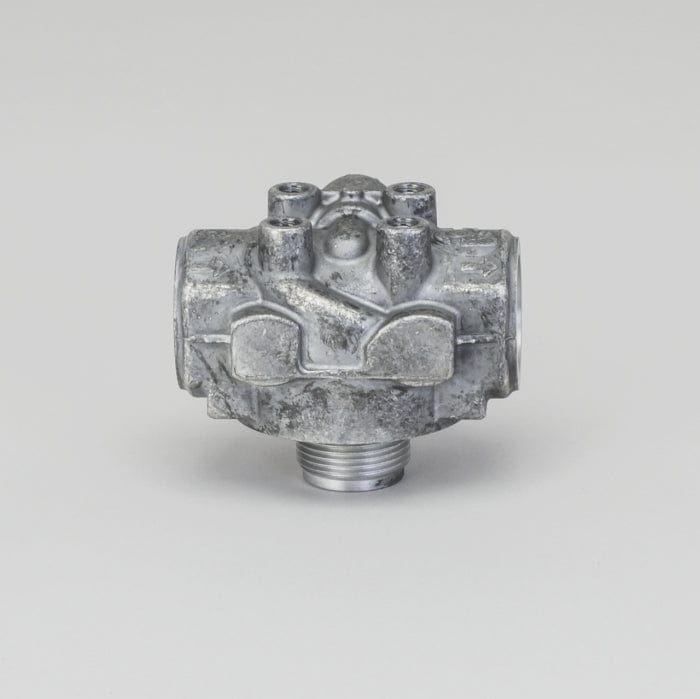

Head Assembly, Hmk04 Duramax - Donaldson P166862

Head Assembly, Hmk04 Duramax - Donaldson P166862

£81.19
£81.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166862

Head Assembly, Hmk04 Duramax
Length 4.00 inch (101.6 mm)
Height 3.38 inch (85.85 mm)
Inlet Size SAE-16
Outlet Size SAE-16
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HMK04/24
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 101.6 mm (4.00 inch)
  • Height: 85.85 mm (3.38 inch)
  • Inlet Size: SAE-16
  • Outlet Size: SAE-16
  • Filter-to-Head Thread: 1 3/8-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Series: HMK04/24
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.135 m (5.40 inch)
  • Packaged Weight: 0.690 kg (1.52 lb)
  • Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330018026

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DITCH WITCH 149642A
KAWASAKI 4276070050
KAWASAKI ZZP166862
SELLICK EQPT LTD 133277
