• Donaldson Head Assembly, Hmk04 Duramax - Donaldson P166387
1 1

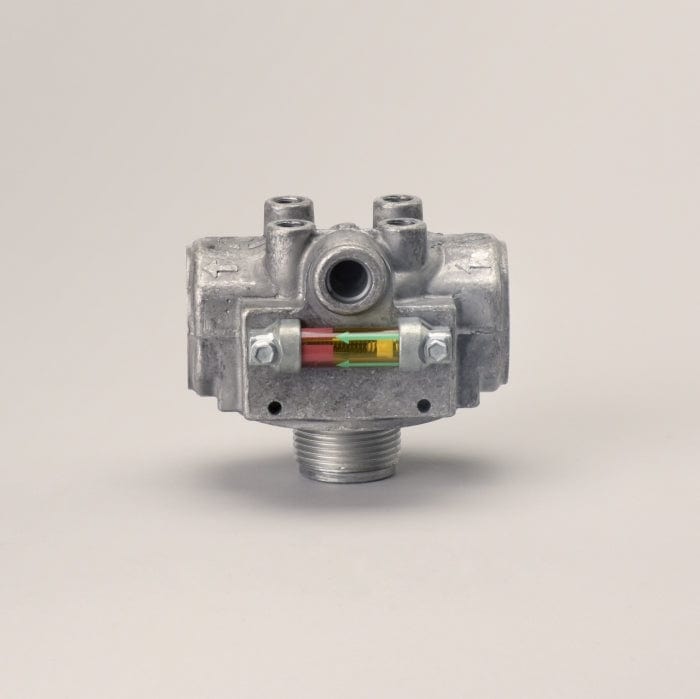

Head Assembly, Hmk04 Duramax - Donaldson P166387

Head Assembly, Hmk04 Duramax - Donaldson P166387

£87.23
£87.23
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166387

Head Assembly, Hmk04 Duramax
Length 4.00 inch (101.6 mm)
Height 3.39 inch (86 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 101.6 mm (4.00 inch)
  • Height: 86 mm (3.39 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: 1 3/8-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK04/24
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.098 m (3.90 inch)
  • Packaged Width: 0.110 m (4.40 inch)
  • Packaged Height: 0.115 m (4.60 inch)
  • Packaged Weight: 0.747 kg (1.65 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330017753

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AMERICAN CRANE CORPORATION 1183960
GEHL P472404
GRADALL VA22610001
GRADALL VA31160019
SKYJACK 138397A
THOMAS 42557
