• Donaldson Head Assembly, Hmk04 Duramax - Donaldson P166088
1 1

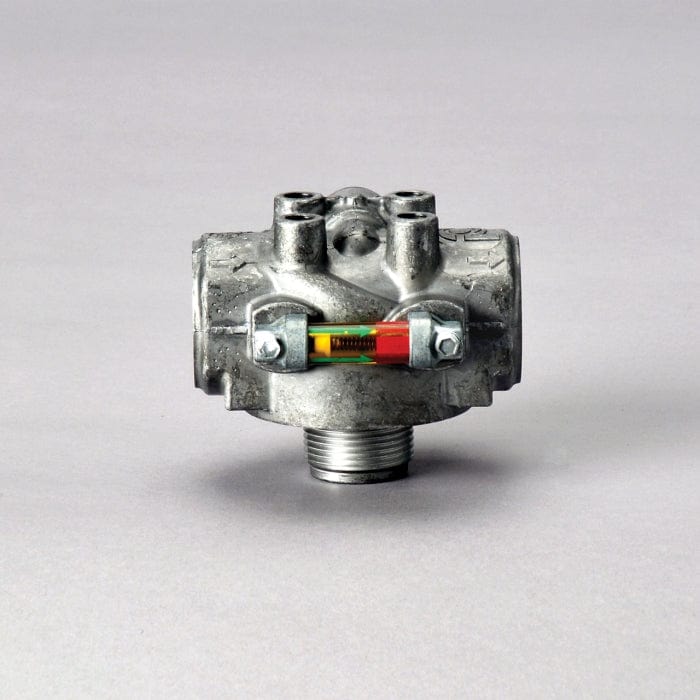

Head Assembly, Hmk04 Duramax - Donaldson P166088

Head Assembly, Hmk04 Duramax - Donaldson P166088

£151.95
£151.95
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P166088

Head Assembly, Hmk04 Duramax
Length 4.00 inch (101.6 mm)
Height 3.38 inch (85.85 mm)
Inlet Size SAE-16
Outlet Size SAE-16
Filter-to-Head Thread 1 3/8-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 25 psi (1.7 bar)
Series HMK04/24
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 101.6 mm (4.00 inch)
  • Height: 85.85 mm (3.38 inch)
  • Inlet Size: SAE-16
  • Outlet Size: SAE-16
  • Filter-to-Head Thread: 1 3/8-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 1.7 bar (25 psi)
  • Series: HMK04/24
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.095 m (3.80 inch)
  • Packaged Width: 0.115 m (4.60 inch)
  • Packaged Height: 0.108 m (4.30 inch)
  • Packaged Weight: 0.745 kg (1.64 lb)
  • Packaged Volume: 0.001 m3 (0.04 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330017616

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS COPCO 371974
CEDARAPIDS 0420030075
CLAAS 578464
CLAAS 5781360
CMI 002008551000
CMI 28551
CMI 2008551000
EUCLID 11036312
KERSHAW 715929
MORBARK 26838863
TRACKMOBILE 1083082
VME 11036312
VME VOE11036312
VOLVO VOE11036312
VOLVO 11036312
WAGNER MINING EQUIPMENT 371974
WALGAHN-MOTORENTECHN 00811020
WALGAHN-MOTORENTECHN 811020
