• Donaldson Head Assembly, Hmk03 Duramax - Donaldson P170773
1 1

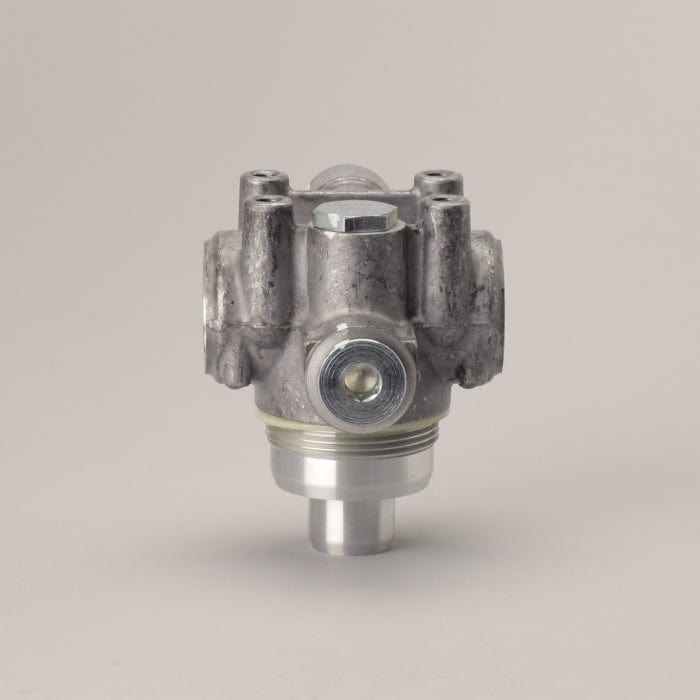

Head Assembly, Hmk03 Duramax - Donaldson P170773

Head Assembly, Hmk03 Duramax - Donaldson P170773

£129.19
£129.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P170773

Head Assembly, Hmk03 Duramax
Length 3.38 inch (85.85 mm)
Height 4.22 inch (107.19 mm)
Inlet Size SAE-12
Outlet Size SAE-12
Filter-to-Head Thread 2-12 UN
Bypass Valve Yes
Bypass Valve Setting LR 51 psi (3.5 bar)
Series HMK03
Brand Duramax®
View full details

Specifications

Attributes

  • Length: 85.85 mm (3.38 inch)
  • Height: 107.19 mm (4.22 inch)
  • Inlet Size: SAE-12
  • Outlet Size: SAE-12
  • Filter-to-Head Thread: 2-12 UN
  • Bypass Valve: Yes
  • Bypass Valve Setting LR: 3.5 bar (51 psi)
  • Series: HMK03
  • Brand: Duramax®

Packaged Dimensions

  • Packaged Length: 0.120 m (4.80 inch)
  • Packaged Width: 0.118 m (4.70 inch)
  • Packaged Height: 0.140 m (5.60 inch)
  • Packaged Weight: 0.676 kg (1.49 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 133320
  • HTS Code: 8421999099
  • UPC Code: 742330020487

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AG CHEM EQUIPMENT 35903
AGCO WR35903
ASTEC UNDERGROUND 306606011
CLARK 062827441
CLARK P170773016140
CLARK 62827441
ENGINE DISTRIBUTORS INC 21870605
GEHL 242320
INGERSOLL RAND FLTR0730
MORBARK 26838862
NILFISK-ADVANCE INCORPORATED 56419253
VERMEER 163632184
WILMAR 35903
