• Donaldson Head Assembly, Bulk Fluid - Donaldson P570330
1 1

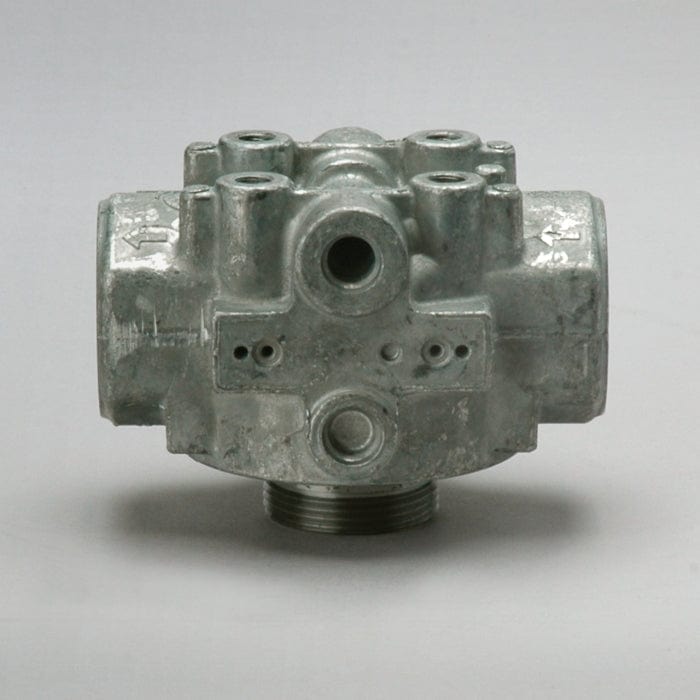

Head Assembly, Bulk Fluid - Donaldson P570330

Head Assembly, Bulk Fluid - Donaldson P570330

£268.88
£268.88
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P570330

Head Assembly, Bulk Fluid
Thread Size 1"3/4 -12 UN 2A
Width 5.03 inch (127.76 mm)
Height 3.63 inch (92.2 mm)
Inlet Size 1 1/4 NPT
Outlet Size 1 1/4 NPT
Bypass Valve No
Brand Bulk Filtration
Primary Application Use with 2 differential pressure indicators
View full details

Specifications

Attributes

  • Thread Size: 1\3/4 -12 UN 2A
  • Width: 127.76 mm (5.03 inch)
  • Height: 92.2 mm (3.63 inch)
  • Inlet Size: 1 1/4 NPT
  • Outlet Size: 1 1/4 NPT
  • Bypass Valve: No
  • Brand: Bulk Filtration
  • Primary Application: Use with 2 differential pressure indicators

Packaged Dimensions

  • Packaged Length: 0.118 m (4.70 inch)
  • Packaged Width: 0.118 m (4.70 inch)
  • Packaged Height: 0.140 m (5.60 inch)
  • Packaged Weight: 1.060 kg (2.34 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421999099
  • UPC Code: 742330201343

Operation

Maintenance

Health And Safety
