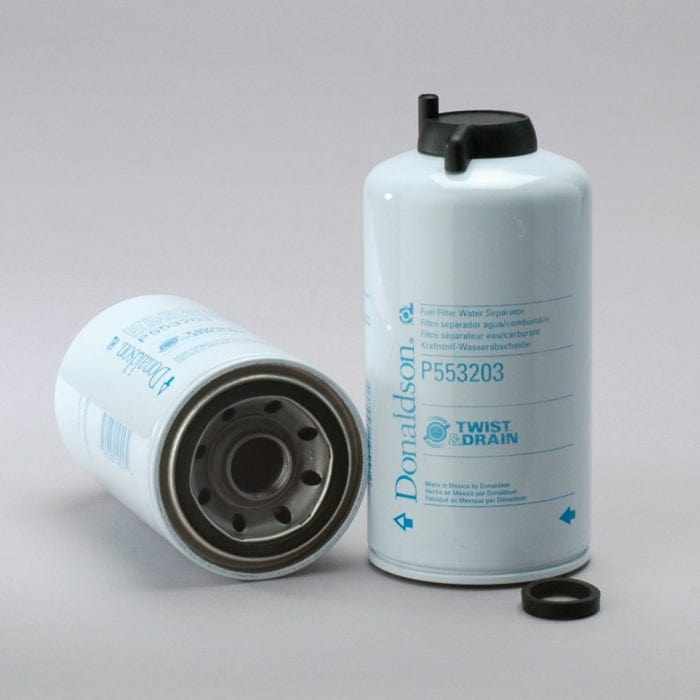

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553203

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553203

£18.92
£18.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P553203

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-14 UN
Length 7.61 inch (193.3 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 4 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose
Primary Application RACOR S3203
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-14 UN
  • Length: 193.3 mm (7.61 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Primary Application: RACOR S3203

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.197 m (7.87 inch)
  • Packaged Weight: 0.574 kg (1.27 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-04
  • HTS Code: 8421230090
  • UPC Code: 742330195574

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 95433
BIG A 95443
CATERPILLAR 1466694
THERMO KING 115948
VMC FS555003
VMC FF555003
