• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553202
1 1

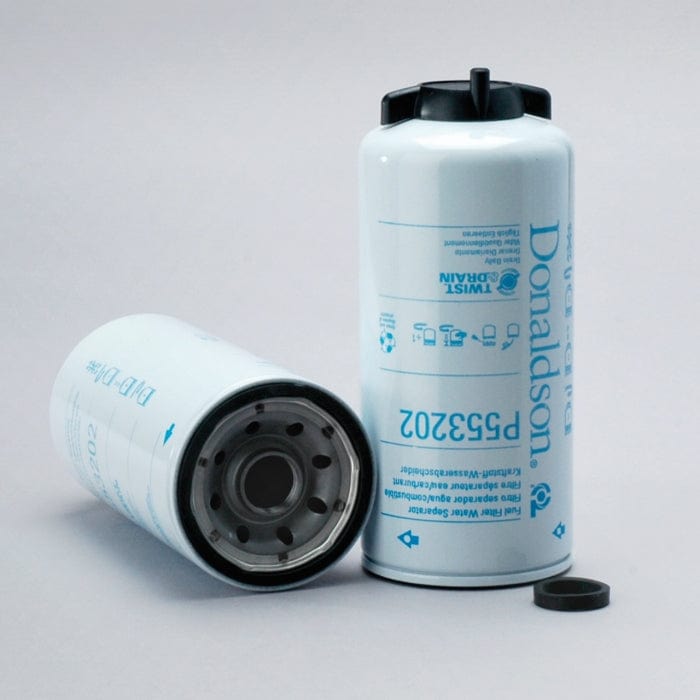

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553202

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P553202

£18.37
£18.37
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P553202

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 3.66 inch (93 mm)
Thread Size 1-12 UN
Length 8.64 inch (219.5 mm)
Gasket OD 3.39 inch (86.2 mm)
Gasket ID 3.05 inch (77.5 mm)
Efficiency 99% 23 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95.00 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Primary Application RACOR S3202
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 1-12 UN
  • Length: 219.5 mm (8.64 inch)
  • Gasket OD: 86.2 mm (3.39 inch)
  • Gasket ID: 77.5 mm (3.05 inch)
  • Efficiency 99%: 23 micron
  • Efficiency Test Std: SAE J1985
  • Emulsified H2O Efficiency: 95.00 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Primary Application: RACOR S3202

Packaged Dimensions

  • Packaged Length: 0.096 m (3.85 inch)
  • Packaged Width: 0.091 m (3.65 inch)
  • Packaged Height: 0.216 m (8.65 inch)
  • Packaged Weight: 0.590 kg (1.30 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-04
  • HTS Code: 8421230090
  • UPC Code: 742330195567

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 95442
FORD 9576P555020
FREIGHTLINER DNP555020
FREIGHTLINER DNP555002
NEW FLYER INDUSTRIES LTD S3202
PREVOST CAR 19500501
UNITED CENTRAL INDUSTRIAL SUPP 688892
VERMEER 77157001
VMC FS555002
XCMG 800101500

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CHEVROLET FORWARD - TRUCK - ISUZU 6HK1T -
CHEVROLET KODIAK - TRUCK - ISUZU 7.8L DURAMAX -
CHEVROLET KODIAK - TRUCK - CHEVROLET 7.2L -
