• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551329
1 1

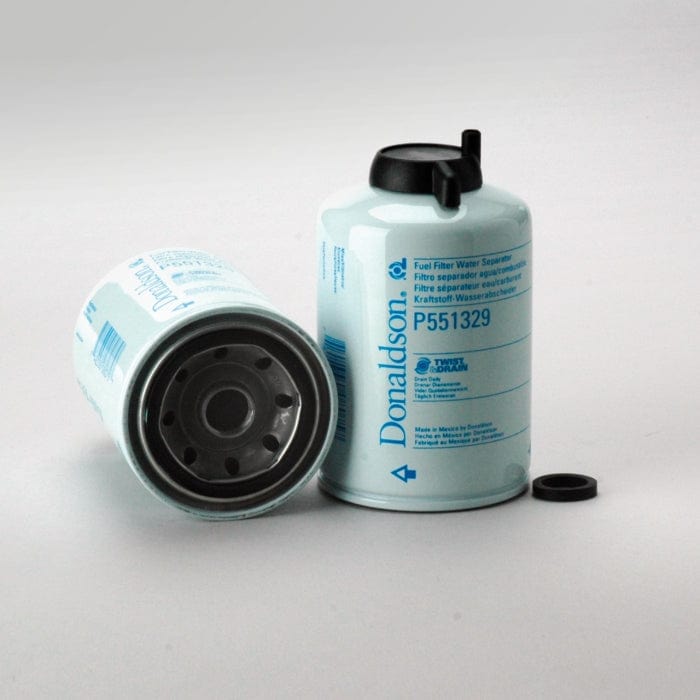

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551329

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551329

£13.75
£13.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551329

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 3.66 inch (93 mm)
Thread Size 13/16-18 UN
Length 6.11 inch (155.3 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 13 micron
Efficiency Test Std SAE J1488, J1985
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 80 psi (5.5 bar)
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 93 mm (3.66 inch)
  • Thread Size: 13/16-18 UN
  • Length: 155.3 mm (6.11 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 13 micron
  • Efficiency Test Std: SAE J1488
  • J1985:
  • Emulsified H2O Efficiency: 95.00 Percent
  • Collapse Burst: 5.5 bar (80 psi)
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.093 m (3.70 inch)
  • Packaged Height: 0.155 m (6.20 inch)
  • Packaged Weight: 0.572 kg (1.26 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330080757

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO T1068
AG CHEM EQUIPMENT 709936
AGCO 709936
AGCO 3903410
AGCO 72501531
AMERICAN MOTORS CORPORATION SFF1280
AMERICAN PARTS 95357
AMMANN 49501000015
AUSTOFT 180412
B R LEE INDUSTRIES 34883
BARKO HYDRAULICS 53501140
BARKO HYDRAULICS MB1992366
BENATI 1821125
BIG A 95357
BITELLI 225059
BLAW KNOX 16400300
BLAW KNOX 0016400300
BLAW KNOX 9014000300
BLOUNT 30003070
BLOUNT 30003063
BLOUNT 538241
BOBCAT 1992366
BOBCAT 1992366B
BOMAG 31780206
BOMAG 31780219
BOSCH-REXROTH RC048
BOSCH-REXROTH 0986AF6048
CASE/CASE IH 903410
CASE/CASE IH J930942
CASE/CASE IH J925274
CASE/CASE IH J903410
CASE/CASE IH A774701
CASE/CASE IH V88833
CASE/CASE IH A77470
CASE/CASE IH 84476807
CATERPILLAR 538241
CATERPILLAR 3I2132
CATERPILLAR 3I1178
CATERPILLAR 30003063
CATERPILLAR 30003070
CEDARAPIDS 459300011003
CEDARAPIDS 459300011003SUB
CHAMPION ROAD 36846
CHINA LOCAL VF1812
CLARK 913556
CLEVELAND 33357
COOPERS FSW4141
CROSLAND 5007
CUMMINS 53C0051
CUMMINS 3935274
CUMMINS 3890063
CUMMINS 3890706
CUMMINS 11E170210
CUMMINS 3903410
CUMMINS 4093730
CUMMINS 3925274
CUMMINS 3930942
DEZZI 350027
DMT CORPORATION 531004
DONGFENG 1125N010
DRESSER 161623
DYNAPAC 900827
DYNAPAC 212374
DYNAPAC 211032
DYNAPAC 4700900827
EXMAN SFF1280
FIAAM FT5360
FIAT 75208274
FIAT V88833
FIAT 76107829
FIL ZP525
FORD F3HZ9162A
FORD 9576P550439
FORD V88833
FRANKLIN 1507033
FREIGHTLINER DNP550439
FREIGHTLINER DNP551329
FURUKAWA 161623
GALION 161623
GEHL L97074
GRADALL 77383819
GRADALL VA22600030A
GREYFRIARS 852S
GROVE 9414100789
GROVE 9414100805
HAVAM HD0257
HIGHPOWEREQUIPMENT FS1280
HITACHI L76107829
HITACHI 76107829
HITACHI 76192505
HITACHI 3930942
HITACHI 75208274
HOUGH 161623
HYDRO-AX 8606007
HYUNDAI 11E170210
INGERSOLL RAND 88122551
INGERSOLL RAND 59728196
INGERSOLL RAND 35374669
INGERSOLL RAND 57150849
INTERNATIONAL 161623
INTRUPA IF6011
JCB 332Y3163
JCB 02910150
JCB 02910150A
JCB 2910150
JOHN DEERE F413331
KAWASAKI YE3903410
KNECHT KC191
KOBELCO YN50VU0001D2
KOEHRING 8320253
KOEHRING 31780206
KOEHRING 207840
KOMATSU 6732716120
KOMATSU CUFS1280
KOMATSU 6742015065
KOMATSU 16123
KOMATSU 161623
KOMATSU CU3903410
KRALINATOR FS366
LBX COMPANY LLC 124978
LINK BELT 3A15893
LINK BELT C8H0078
LIUGONG 53C0051
LIUGONG SP105625
LIUGONG C3930942
LOESING 025089
LOESING 25089
M.D.F. SARL MDF7533180401
MACK 2191P551329
MANITOU 473728
MANITOU 473725
MASSEY FERGUSON 3621278M1
MASSEY FERGUSON 1076748M1
MASSEY FERGUSON 1076748M2
MASSEY FERGUSON 1072418M1
MCCORMICK MCJ925274
MORBARK 29215328
NEW HOLLAND 75208274
NEW HOLLAND 8961100068
NEW HOLLAND V88833
NEW HOLLAND 25850
NEW HOLLAND LBF1280
NEW HOLLAND 86991002
NEW HOLLAND 83977314
NISSAN/UD TRUCKS 3196204010
OMARK MATERIAL HANDLING 538241
ONAN 1492259
ONAN 1492250
ONAN 1492582
ORENSTEIN & KOPPEL 1465437
P & H 1046Z571
PETTIBONE LL1189114
ROMAN CBOS3410
ROSCO 34883
SAMSUNG 9991203410
SAMSUNG A77470S1
SAMSUNG 991203410
SAMSUNG 3903410
SANDVIK 69038413
SCHWING 83570068
STEIGER 331158T1
SULLAIR 88290005192
TATA 278609119903
TAYLOR 4026941
TEREX 6000008
TEREX K2650575
TEREX 15270824
TFMC T47764
TIMBERJACK 8413330
TIMBERJACK 841333000
TIMBERJACK 413831
TIMBERJACK 413331
TORO 012701940
TORO 951364
TORO 12701940
TORQUIP 76107829
TROJAN 4614878
UNITED CENTRAL INDUSTRIAL SUPP 688456
VALMET 1992366
VALMET 81028800
VAPORMATIC VPD6030
VERMEER 220162023
VERMEER 107611001
VERSATILE 00088833
VERSATILE 88833
VMC FF551329
VMC FS551329
VOLKSWAGEN 2RK127177B
VOLVO 43923093
VOLVO 912O3410
VOLVO 991203410
VOLVO 36846
WALGAHN-MOTORENTECHN 811908
WALGAHN-MOTORENTECHN 00811908
WHITE 303437582
YALE 4614878
YUTONG BUS 112500007
ZETTELMEYER 22854649
