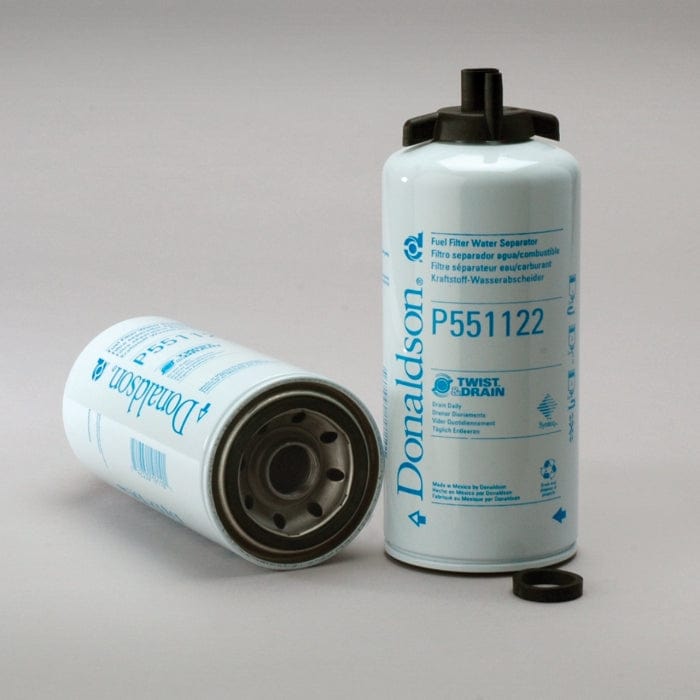

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551122
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551122
Regular price
£22.45
Regular price
Sale price
£22.45
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551122
Fuel Filter, Water Separator Spin-On Twist&Drain| Stand Pipe | Yes Y/N |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 9.03 inch (229.4 mm) |
| Gasket OD | 2.8 inch (71 mm) |
| Gasket ID | 2.4 inch (61 mm) |
| Efficiency 99% | 10 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Composite |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Stand Pipe: Yes Y/N
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 229.4 mm (9.03 inch)
- Gasket OD: 71 mm (2.8 inch)
- Gasket ID: 61 mm (2.4 inch)
- Efficiency 99%: 10 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95 Percent
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Composite
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.090 m (3.60 inch)
- Packaged Height: 0.228 m (9.10 inch)
- Packaged Weight: 0.506 kg (1.12 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330191101
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TF1029 | |
| AMERICAN MOTORS CORPORATION | SFS4749 | |
| AMERICAN MOTORS CORPORATION | FI15170 | |
| BOSCH-REXROTH | BFE072 | |
| CASE/CASE IH | J800394 | |
| CEDARAPIDS | 459300016506 | |
| CHINA LOCAL | VF2819 | |
| CUMMINS | 3800394 | |
| CUMMINS | 3944269 | |
| CUMMINS | J800394 | |
| EXMAN | FI15170 | |
| EXMAN | SFS4749 | |
| HYUNDAI | 11NA70010 | |
| INGERSOLL RAND | 22177711 | |
| KOMATSU | 6744716040 | |
| MANITOWOC | 4136520 | |
| MCCORMICK | 707153A1 | |
| MITSUBISHI | MB504749 | |
| TEREX | 15500391 | |
| VMC | FS551122 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO EAGLE 8600 | - | SPRAYER | EAGLE | - EAGLE 8600 | - |
| CASE/CASE IH MX240 | - | TRACTOR | MX SERIES | CUMMINS QSC8.3 | - |
| CASE/CASE IH MX270 | - | TRACTOR | MX SERIES | CUMMINS QSC8.3 | - |
| CASE/CASE IH STX325 | - | TRACTOR | STX SERIES | CUMMINS ISL | - |
| CUMMINS ISC | - | ENGINE | - | - ISC | - |
| CUMMINS ISL | - | ENGINE | - | - ISL | - |
| CUMMINS QSC8.3 | - | ENGINE | - | - QSC8.3 | - |
| FREIGHTLINER CONDOR | - | TRUCK | - | CUMMINS ISC | - |
| FREIGHTLINER FLD | - | TRUCK | - | CUMMINS ISL | - |
| FREIGHTLINER M2 | - | TRUCK | - | CUMMINS ISC | - |
| GROVE RT9000E | - | CRANE MOBILE | - | - RT9000E | - |
| GROVE TMS700E | - | CRANE MOBILE | - | - TMS700E | - |
| GROVE TMS760E | - | CRANE MOBILE | - | - TMS760E | - |
| HYUNDAI HL770-7 | - | LOADER WHEELED | HL SERIES | CUMMINS QSC8.3 | - |
| HYUNDAI R360LC-7 | - | EXCAVATOR TRACKED | ROBEX | CUMMINS QSC8.3 | - |
| KENWORTH T800B | - | TRUCK | - | CUMMINS ISL | - |
| MACK GRANITE | - | TRUCK | - | CUMMINS ISL | - |
| MANITOWOC 777 | - | CRANE TRACKED | - | CUMMINS QSC8.3 | - |
| MCCORMICK ZTX230 | - | TRACTOR | ZTX SERIES | CUMMINS QSC8.3 | TIER 2 |
| MCCORMICK ZTX260 | - | TRACTOR | ZTX SERIES | CUMMINS QSC8.3 | TIER 2 |
| MCCORMICK ZTX280 | - | TRACTOR | ZTX SERIES | CUMMINS QSC8.3 | TIER 2 |
| NEW HOLLAND FR9040 | - | HARVESTER | FR SERIES | IVECO CURSOR 9 | - |
| NEW HOLLAND FR9050 | - | HARVESTER | FR SERIES | IVECO CURSOR 13 | - |
| NEW HOLLAND FR9060 | - | HARVESTER | FR SERIES | IVECO CURSOR 13 TCD | - |
| NEW HOLLAND FR9080 | - | HARVESTER | FR SERIES | CATERPILLAR C18 | - |
| NEW HOLLAND FR9090 | - | HARVESTER | FR SERIES | IVECO VECTOR 8 | - |
| PETERBILT 320 | - | TRUCK | - | CUMMINS ISC | - |
| PETERBILT 320 | - | TRUCK | - | CUMMINS ISL | - |
| PETERBILT 330 | - | TRUCK | - | CUMMINS ISC | - |
| PETERBILT 335 | - | TRUCK | - | CUMMINS ISC | - |
| PETERBILT 335 | - | TRUCK | - | CUMMINS ISM | - |
| PETERBILT 357 | - | TRUCK | - | CUMMINS ISC | - |
| PETERBILT 357 | - | TRUCK | - | CUMMINS ISL | - |
| PETERBILT 357 | - | TRUCK | - | CUMMINS ISM | - |
| PETERBILT 378 | - | TRUCK | - | CUMMINS ISM | - |
| PETERBILT 379 | - | TRUCK | - | CUMMINS ISC | - |
| PETERBILT 379 | - | TRUCK | - | CUMMINS ISL | - |
| PETERBILT 379 | - | TRUCK | - | CUMMINS ISM | - |
| PETERBILT 379 | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 379X | - | TRUCK | - | CUMMINS ISC | - |
| PETERBILT 379X | - | TRUCK | - | CUMMINS ISL | - |
| PETERBILT 379X | - | TRUCK | - | CUMMINS ISM | - |
| PETERBILT 379X | - | TRUCK | - | CUMMINS ISX | - |
| PETERBILT 385 | - | TRUCK | - | CUMMINS ISL | - |
| PETERBILT 385 | - | TRUCK | - | CUMMINS ISM | - |
| PETERBILT 387 | - | TRUCK | - | CUMMINS ISM | - |
| STERLING ACTERRA | - | TRUCK | - | CUMMINS ISC | - |
| STERLING LT7500 | - | TRUCK | - | CUMMINS ISC | - |
| STERLING M8500 | - | TRUCK | - | CUMMINS ISC | - |
| STERLING MT7500 | - | TRUCK | - | CUMMINS ISC | - |
| TEREX HC275 | - | CRANE MOBILE | - | - HC275 | - |
