• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551077
1 1

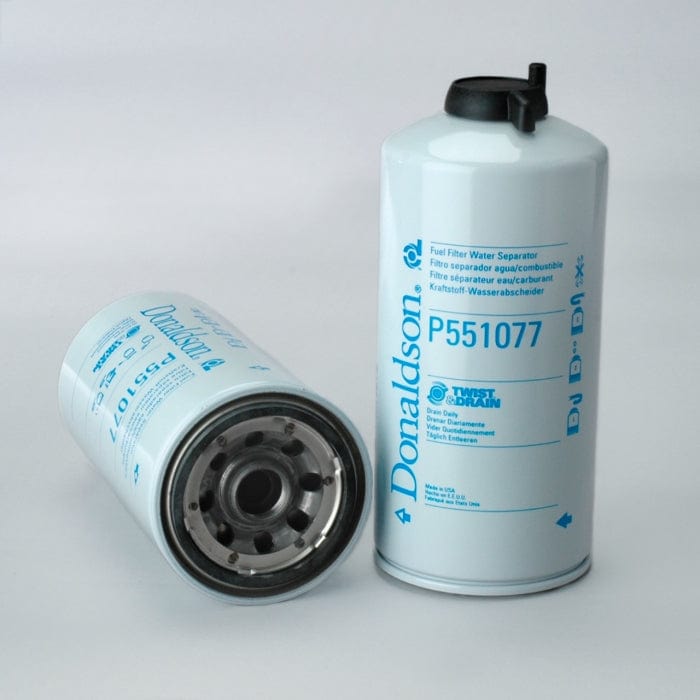

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551077

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551077

£40.72
£40.72
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551077

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 9.60 inch (243.8 mm)
Gasket OD 3.48 inch (88.4 mm)
Gasket ID 3.17 inch (80.4 mm)
Efficiency 99% 30 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Primary Application RACOR R120P
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 243.8 mm (9.60 inch)
  • Gasket OD: 88.4 mm (3.48 inch)
  • Gasket ID: 80.4 mm (3.17 inch)
  • Efficiency 99%: 30 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Primary Application: RACOR R120P
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.108 m (4.30 inch)
  • Packaged Width: 0.108 m (4.30 inch)
  • Packaged Height: 0.245 m (9.80 inch)
  • Packaged Weight: 1.008 kg (2.22 lb)
  • Packaged Volume: 0.003 m3 (0.11 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330201732

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AGCO 539269D1
ATLAS 2914823600
ATLAS COPCO 16260347 Twist and drain option. Use with P550865 is sensor port is needed.
DONGFENG FS19816
LIUGONG 53C0436
TEREX 45056112

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
BOVA DD130-430XE 2005 BUS SYNERGY DAF XE315C -
BOVA DD130-480XE 2005 BUS SYNERGY DAF XE355C -
BOVA DD138-430XE 2005 BUS SYNERGY DAF XE315C -
BOVA DD138-480XE 2005 BUS SYNERGY DAF XE355C -
BOVA FHD10-340XE 2001 BUS FUTURA DAF XE250C1 -
