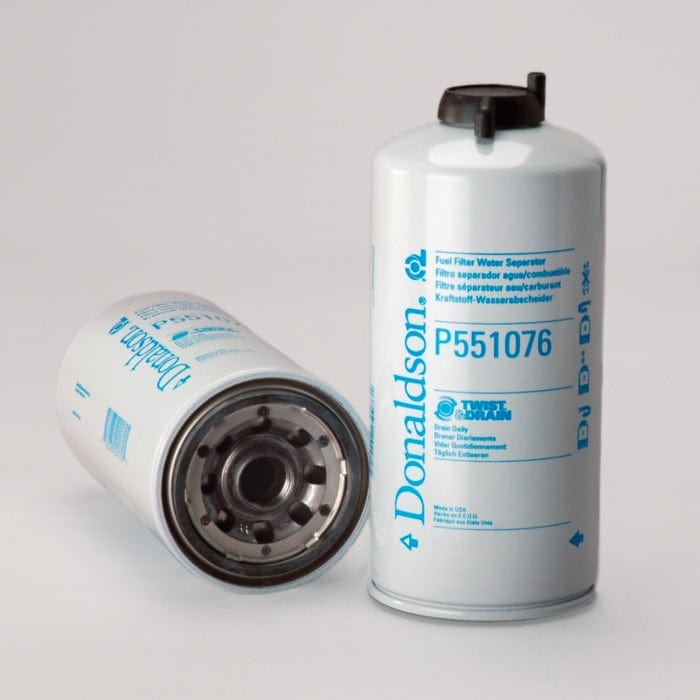

• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551076
1 1

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551076

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551076

£36.55
£36.55
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551076

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 9.59 inch (243.7 mm)
Gasket OD 3.48 inch (88.4 mm)
Gasket ID 3.17 inch (80.4 mm)
Efficiency 99% 10 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose, Meltblown
Primary Application RACOR R120T
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 243.7 mm (9.59 inch)
  • Gasket OD: 88.4 mm (3.48 inch)
  • Gasket ID: 80.4 mm (3.17 inch)
  • Efficiency 99%: 10 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Meltblown:
  • Primary Application: RACOR R120T
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.105 m (4.20 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.243 m (9.70 inch)
  • Packaged Weight: 0.985 kg (2.17 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330201725

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DONGFENG 4102H1510
VOLVO 11110189
VOLVO VOE11110189

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
DONGFENG EQ1061T40D5 - TRUCK - DONGFENG CY4102BZLQ -
DONGFENG EQ1062T40D5 - TRUCK - DONGFENG CY4102BZQ -
GOLDEN DRAGON XML6700 - BUS - DONGFENG CY4102BZLQ -
LONGGONG SLK6600 - BUS - DONGFENG CY4102BZQ -
