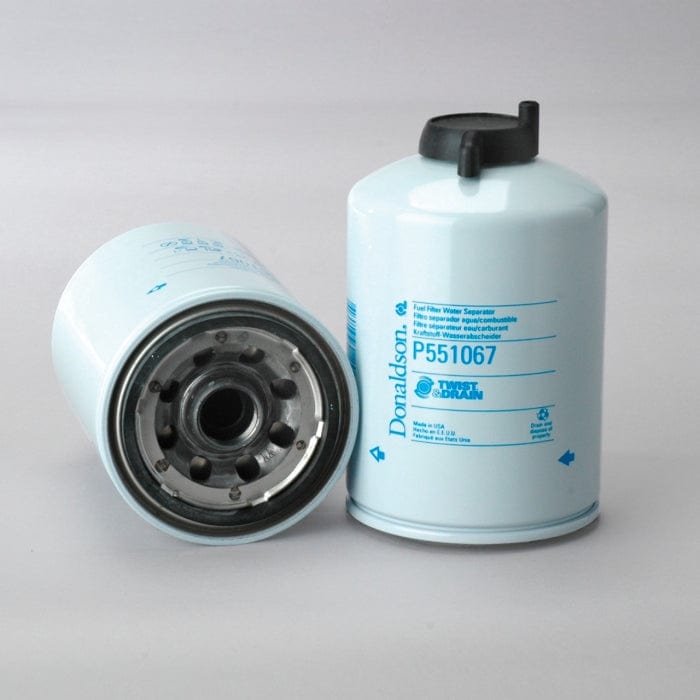

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551067

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551067

£32.48
£32.48
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551067

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 6.81 inch (173.1 mm)
Gasket OD 3.48 inch (88.4 mm)
Gasket ID 3.17 inch (80.4 mm)
Efficiency 99% 30 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 173.1 mm (6.81 inch)
  • Gasket OD: 88.4 mm (3.48 inch)
  • Gasket ID: 80.4 mm (3.17 inch)
  • Efficiency 99%: 30 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.240 m (9.60 inch)
  • Packaged Width: 0.209 m (8.35 inch)
  • Packaged Height: 0.174 m (6.95 inch)
  • Packaged Weight: 0.826 kg (1.82 lb)
  • Packaged Volume: 0.009 m3 (0.32 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330201701

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS 2914807000
CLAAS 11342140
GREYFRIARS 883S
GROVE 04157422
GROVE 4157422
KOBELCO VH23390E0020T
MAN 51125030066
PREVOST CAR 19500494
SCANIA 1393640

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
DOPPSTADT 200 - TRACTOR TRAC MERCEDES-BENZ OM 906 LA -
JOHN DEERE 9650 STS - COMBINE 9050 STS SERIES JOHN DEERE 6081H -
JOHN DEERE 9750 STS - COMBINE 9050 STS SERIES JOHN DEERE 6081H -
MERCEDES-BENZ OF 1418 - BUS - MERCEDES-BENZ OM 904 -
SETRA S313UL MULTI CLASS 2000 BUS S/SG 300 SERIES MERCEDES-BENZ OM 457 HLA -
SETRA S315GT COMFORT CLASS 2000 BUS S/SG 300 SERIES MERCEDES-BENZ OM 457 HLA -
SETRA S315NF MULTI CLASS 2000 BUS S/SG 300 SERIES MERCEDES-BENZ OM 457 HLA -
SETRA S315UL MULTI CLASS 2000 BUS S/SG 300 SERIES MERCEDES-BENZ OM 457 HLA -
SETRA S319NF MULTI CLASS 2000 BUS S/SG 300 SERIES MERCEDES-BENZ OM 457 HLA -
SETRA S319UL MULTI CLASS 2000 BUS S/SG 300 SERIES MERCEDES-BENZ OM 457 HLA -
