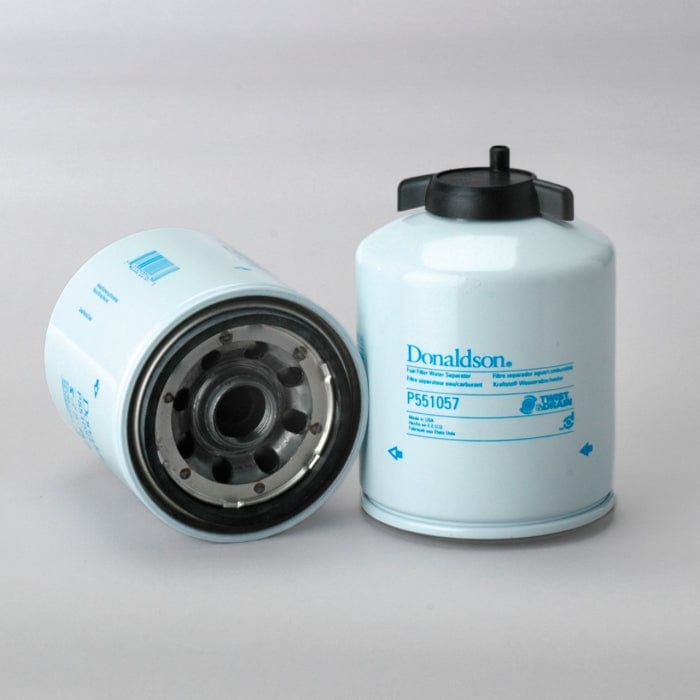

• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551057
1 1

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551057

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551057

£32.64
£32.64
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551057

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 5.79 inch (147.1 mm)
Gasket OD 3.48 inch (88.4 mm)
Gasket ID 3.17 inch (80.4 mm)
Efficiency 99% 30 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Composite
Primary Application RACOR R60P
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 147.1 mm (5.79 inch)
  • Gasket OD: 88.4 mm (3.48 inch)
  • Gasket ID: 80.4 mm (3.17 inch)
  • Efficiency 99%: 30 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Composite
  • Primary Application: RACOR R60P
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.158 m (6.30 inch)
  • Packaged Weight: 0.745 kg (1.64 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330201671

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
ATLAS 2914807100
BOMBARDIER 921144764
CATERPILLAR 3I2075
DAIMLER A3760927001KZ
DEUTZ 6007001619005
EXMAN 234011630
EXMAN FC11090
EXXEL PTY LTD 141424038
EXXEL PTY LTD 14240038
FIAT F1HZ9365A
FREIGHTLINER DNP550730
FREIGHTLINER ABPS3225P
GREYFRIARS 857S
HINO 234011441A
HINO 234011440A
HINO 234011630
HINO 234011441
HINO 234011440
INGERSOLL RAND 51949378
JCB 32925218
NEW HOLLAND 7840136
NEW HOLLAND 84989840
RENAULT VI 8200102609
VOLVO 20381204
