• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551056
1 1

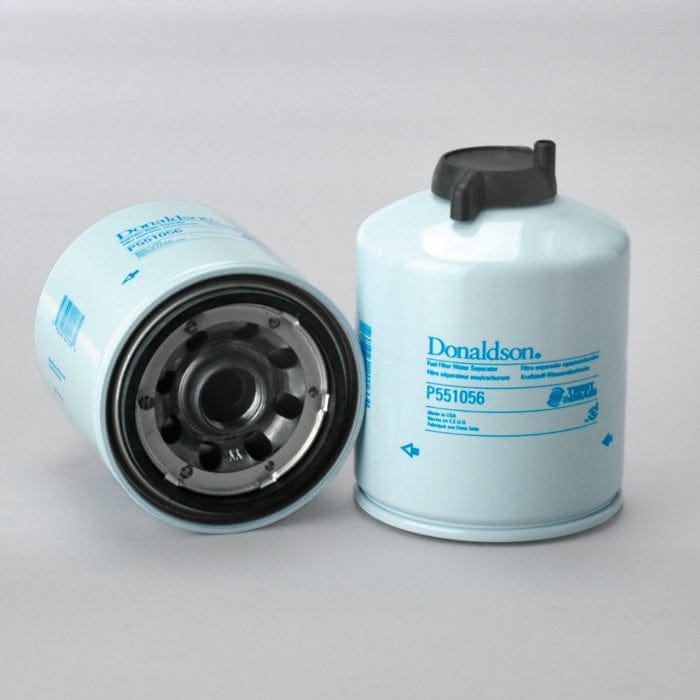

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551056

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551056

£31.05
£31.05
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551056

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 5.79 inch (147.1 mm)
Gasket OD 3.48 inch (88.4 mm)
Gasket ID 3.17 inch (80.4 mm)
Efficiency 99% 10 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose, Meltblown
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 147.1 mm (5.79 inch)
  • Gasket OD: 88.4 mm (3.48 inch)
  • Gasket ID: 80.4 mm (3.17 inch)
  • Efficiency 99%: 10 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Meltblown:
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.106 m (4.25 inch)
  • Packaged Width: 0.105 m (4.20 inch)
  • Packaged Height: 0.149 m (5.95 inch)
  • Packaged Weight: 0.745 kg (1.64 lb)
  • Packaged Volume: 0.002 m3 (0.06 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069095-02
  • HTS Code: 8421230090
  • UPC Code: 742330201664

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BURKEEN 16Z09
CASE/CASE IH 1809623C1
CASE/CASE IH 1811491C91
CASE/CASE IH 1816568C91
CASE/CASE IH 1813104C91
CATERPILLAR 3I1672
CATERPILLAR 3I1210
CHINA LOCAL STCX960
FREIGHTLINER DNP553375
GILLIG 8240863000
INGERSOLL RAND 52296878
INTERNATIONAL 1685159C1
INTERNATIONAL 1816568C91
INTERNATIONAL 1813104C91
NEW HOLLAND 7840136
NEW HOLLAND 84446332
NEW HOLLAND 87803210
NEW HOLLAND 87802929
STEWART & STEVENSON 280323
UNITED CENTRAL INDUSTRIAL SUPP 688776

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
FREIGHTLINER M2 - TRUCK - CATERPILLAR C11 -
FREIGHTLINER M2 - TRUCK - CATERPILLAR C13 -
FREIGHTLINER M2 - TRUCK - CATERPILLAR C7 -
FREIGHTLINER M2 - TRUCK - CATERPILLAR C9 -
