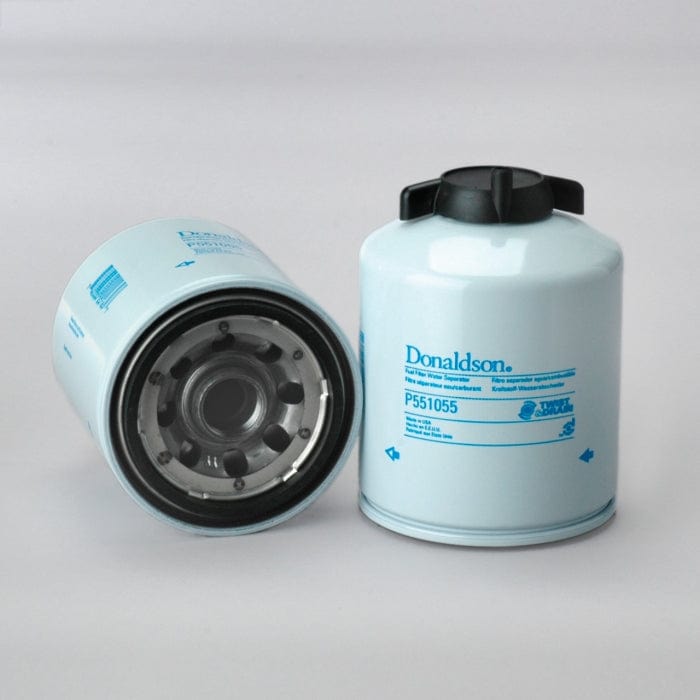

• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551055
1 1

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551055

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551055

£30.19
£30.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551055

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 5.79 inch (147.1 mm)
Gasket OD 3.48 inch (88.4 mm)
Gasket ID 3.17 inch (80.4 mm)
Efficiency 99% 4 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 95 Percent
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose, Meltblown
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 147.1 mm (5.79 inch)
  • Gasket OD: 88.4 mm (3.48 inch)
  • Gasket ID: 80.4 mm (3.17 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Meltblown:
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.099 m (3.94 inch)
  • Packaged Width: 0.099 m (3.94 inch)
  • Packaged Height: 0.148 m (5.91 inch)
  • Packaged Weight: 0.783 kg (1.73 lb)
  • Packaged Volume: 0.001 m3 (0.05 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330201657

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
FREIGHTLINER S3225
WESTERN STAR TRUCK S3225
