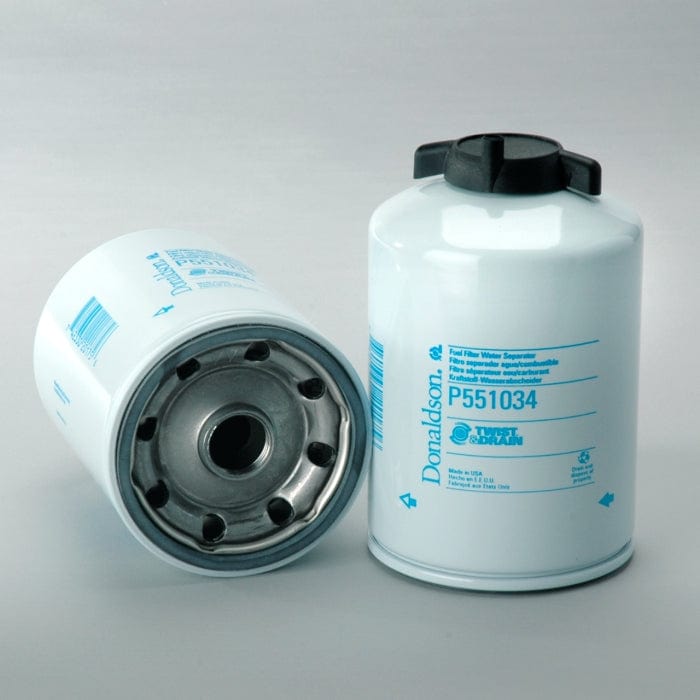

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551034

Attributes

• Outer Diameter: 107.3 mm (4.22 inch)
• Thread Size: 1-14 UN
• Length: 173.1 mm (6.81 inch)
• Gasket OD: 99 mm (3.90 inch)
• Gasket ID: 90.3 mm (3.56 inch)
• Efficiency 99%: 10\n micron
• Efficiency Test Std: SAE J1488
• J1985:
• Emulsified H2O Efficiency: 95 Percent
• Collapse Burst: 6.9 bar (100 psi)
• Type: Water Separator
• Style: Spin-On
• Brand: Twist&Drain™
• Media Type: Cellulose
• Primary Application: RACOR S3226T
• Notes: Not for Marine Applications

Packaged Dimensions

• Packaged Length: 0.105 m (4.20 inch)
• Packaged Width: 0.105 m (4.20 inch)
• Packaged Height: 0.175 m (7.00 inch)
• Packaged Weight: 0.808 kg (1.78 lb)
• Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

• Country of Origin: Mexico
• NMFC Code: 069100-06
• HTS Code: 8421230090
• UPC Code: 742330201756
