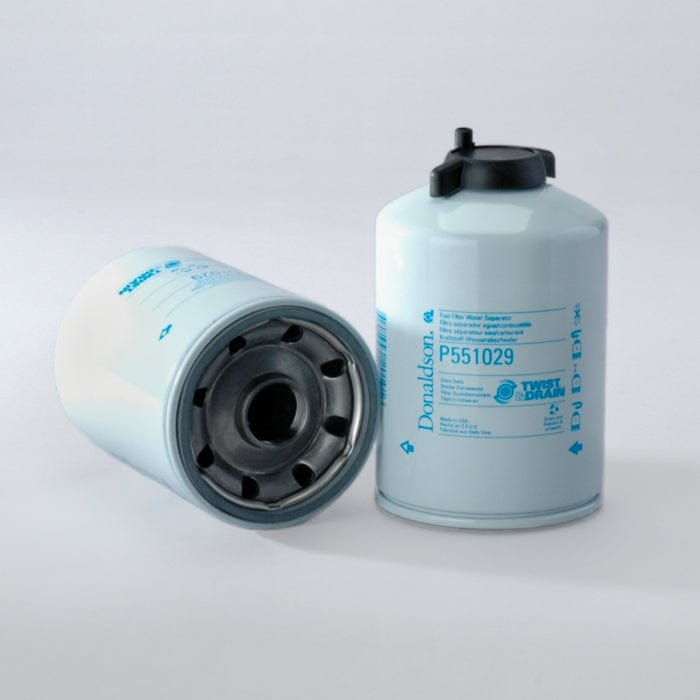

• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551029
1 1

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551029

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551029

£38.39
£38.39
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551029

Fuel Filter, Water Separator Spin-On Twist&Drain
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: M30 x 1.5
  • Length: 173 mm (6.81 inch)
  • Gasket OD: 99 mm (3.90 inch)
  • Gasket ID: 90.3 mm (3.56 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: SAE J1488
  • J1985:
  • Emulsified H2O Efficiency: 95.00 Percent
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.106 m (4.25 inch)
  • Packaged Width: 0.106 m (4.25 inch)
  • Packaged Height: 0.172 m (6.88 inch)
  • Packaged Weight: 0.840 kg (1.85 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330201916

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
MACK 483GB477M
VMC FF554477
VMC FS554477

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
MACK CV713 - TRUCK - MACK ASET AMI -
MACK CV713 - TRUCK - MACK ASET AI -
MACK MR690P - TRUCK - MACK ASET AMI -

Operation

Maintenance

Health And Safety
