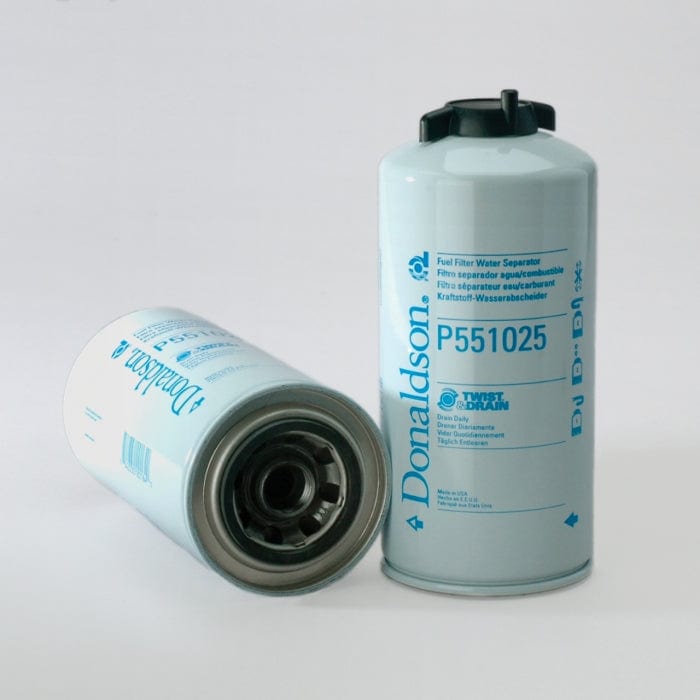

• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551025
1 1

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551025

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551025

£45.70
£45.70
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551025

Fuel Filter, Water Separator Spin-On Twist&Drain
Outer Diameter 4.22 inch (107.3 mm)
Thread Size 1-14 UN
Length 9.60 inch (243.8 mm)
Gasket OD 2.83 inch (72 mm)
Gasket ID 2.44 inch (62 mm)
Efficiency 99% 4 micron
Efficiency Test Std SAE J1488, J1985
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 100 psi (6.9 bar)
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 107.3 mm (4.22 inch)
  • Thread Size: 1-14 UN
  • Length: 243.8 mm (9.60 inch)
  • Gasket OD: 72 mm (2.83 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Efficiency 99%: 4 micron
  • Efficiency Test Std: SAE J1488
  • J1985:
  • Emulsified H2O Efficiency: 95.00 Percent
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.106 m (4.25 inch)
  • Packaged Width: 0.106 m (4.25 inch)
  • Packaged Height: 0.238 m (9.50 inch)
  • Packaged Weight: 1.044 kg (2.30 lb)
  • Packaged Volume: 0.003 m3 (0.10 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330201640

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
SOLARIS BUS 112142040

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
JOHN DEERE 9200 - TRACTOR 9000 SERIES JOHN DEERE 6125H -
JOHN DEERE 9300 - TRACTOR 9000 SERIES JOHN DEERE 6125H -
JOHN DEERE 9300T - TRACTOR TRACKED 9000 SERIES JOHN DEERE 6125H -
JOHN DEERE 9400 - TRACTOR 9000 SERIES JOHN DEERE 6125H -
JOHN DEERE 9400T - TRACTOR TRACKED 9000 SERIES JOHN DEERE 6125H -
