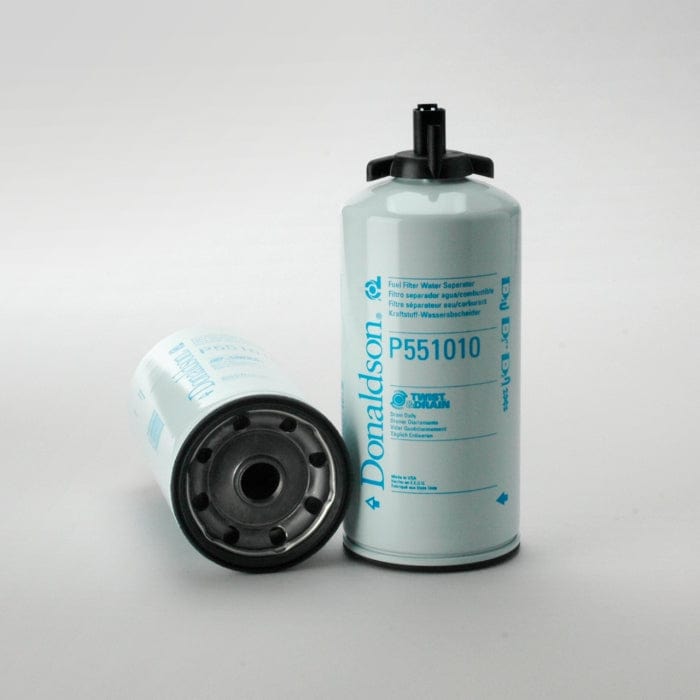

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551010
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551010
Regular price
£44.19
Regular price
Sale price
£44.19
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551010
Fuel Filter, Water Separator Spin-On Twist&Drain| Stand Pipe | Yes Y/N |
| Outer Diameter | 4.22 inch (107.3 mm) |
| Thread Size | 1-14 UN |
| Length | 10.36 inch (263.2 mm) |
| Gasket OD | 3.86 inch (98 mm) |
| Gasket ID | 3.54 inch (90 mm) |
| Efficiency 99% | 20 micron |
| Emulsified H2O Efficiency | 85 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Cellulose |
| Primary Application | DEUTSCH 2 PIN WIF SENSOR |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Stand Pipe: Yes Y/N
- Outer Diameter: 107.3 mm (4.22 inch)
- Thread Size: 1-14 UN
- Length: 263.2 mm (10.36 inch)
- Gasket OD: 98 mm (3.86 inch)
- Gasket ID: 90 mm (3.54 inch)
- Efficiency 99%: 20 micron
- Emulsified H2O Efficiency: 85 Percent
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Cellulose
- Primary Application: DEUTSCH 2 PIN WIF SENSOR
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.108 m (4.33 inch)
- Packaged Width: 0.108 m (4.33 inch)
- Packaged Height: 0.266 m (10.63 inch)
- Packaged Weight: 1.037 kg (2.29 lb)
- Packaged Volume: 0.003 m3 (0.12 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330201800
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 3222343171 | |
| ATLAS COPCO | 2914866400 | |
| BUCYRUS | V012938 | |
| CATERPILLAR | 1R0769 | P550900 is Standard T&D Alternative |
| CATERPILLAR | 1R0771 | |
| CATERPILLAR | 1R0770 | P550900 is Standard T&D Alternative |
| CATERPILLAR | 3261642 | P550900 is Standard T&D Alternative |
| CATERPILLAR | 3261641 | P550900 is Standard T&D Alternative |
| CATERPILLAR | 1R0781 | P550900 is Standard T&D Alternative |
| CATERPILLAR | 4238521 | P550900 is Standard T&D Alternative |
| CHINA LOCAL | STCX771B | |
| CHINA LOCAL | STCX769A | |
| CHINA LOCAL | STCX769B | |
| CHINA LOCAL | STCX770 | |
| CHINA LOCAL | STCX771A | |
| SANDVIK | 9120287 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO DM45 | - | DRILLING EQUIPMENT | - | CATERPILLAR C18 | - |
| BUCYRUS SKF 11 | - | DRILLING EQUIPMENT | - | - SKF 11 | - |
| CATERPILLAR 325CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 345DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 349D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 349DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 777G | - | HAUL TRUCK | - | CATERPILLAR C32 | - |
| CATERPILLAR D10R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3412E | - |
| CATERPILLAR D8R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
| WIRTGEN W 2000 | 1999 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C15 ATAAC | - |
| WIRTGEN W 2100 | 2004 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C18 ATAAC | - |
| WIRTGEN W 220 | 2012 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C18 ATAAC | - |
| WIRTGEN WR 250 | 2013 | ROAD STABILIZER | WR SERIES | CATERPILLAR C18 ATAAC | - |
