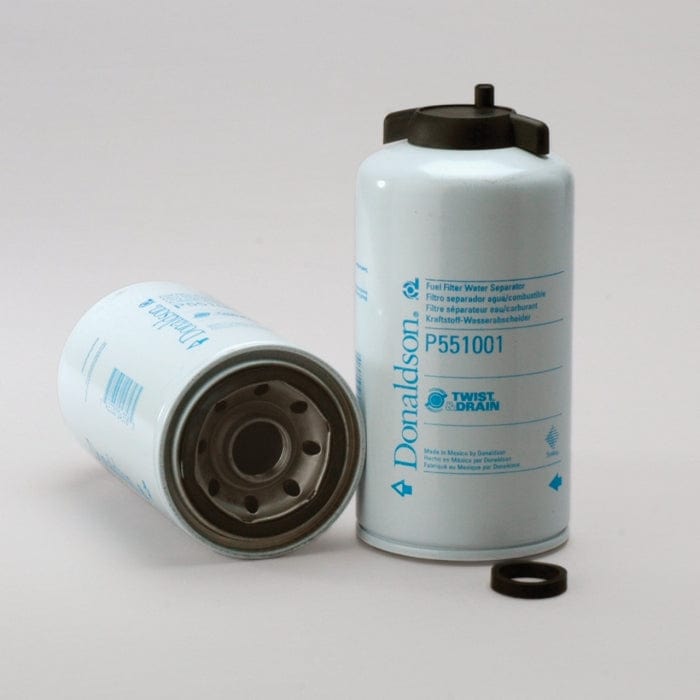

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551001
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551001
Regular price
£17.76
Regular price
Sale price
£17.76
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551001
Fuel Filter, Water Separator Spin-On Twist&Drain| Stand Pipe | Yes Y/N |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 7.6 inch (193.1 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 10 micron |
| Efficiency Test Std | SAE J1985, J905 |
| Emulsified H2O Efficiency | 95 Percent |
| Collapse Burst | 41 psi (2.8 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Cellulose |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Stand Pipe: Yes Y/N
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 193.1 mm (7.6 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 10 micron
- Efficiency Test Std: SAE J1985
- J905:
- Emulsified H2O Efficiency: 95 Percent
- Collapse Burst: 2.8 bar (41 psi)
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Cellulose
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.093 m (3.70 inch)
- Packaged Width: 0.093 m (3.70 inch)
- Packaged Height: 0.193 m (7.70 inch)
- Packaged Weight: 0.613 kg (1.35 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330043585
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95005 | |
| BIG A | 95407 | |
| BIG A | 95378 | |
| CASE/CASE IH | 47387534 | |
| CASE/CASE IH | 335341A1 | |
| CUMMINS | 3413084 | |
| DAEWOO | 65125035016 | |
| DOOSAN | 65125035016 | |
| DOOSAN | 65125035016B | |
| IMPERIAL | 04FS1001 | |
| JOHN DEERE | AT77587 | |
| KRALINATOR | FS345 | |
| VMC | FS551001 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CASE/CASE IH BEARCAT | - | TRACTOR | - | - BEARCAT | - |
| CASE/CASE IH COUGAR | - | TRACTOR | - | - COUGAR | - |
| CASE/CASE IH CS280 | - | TRACTOR | - | - CS280 | - |
| CASE/CASE IH CS325 | - | TRACTOR | - | - CS325 | - |
| CASE/CASE IH CS360 | - | TRACTOR | - | - CS360 | - |
| CASE/CASE IH SM325 | - | TRACTOR | - | - SM325 | - |
| DAEWOO DX500LC | - | EXCAVATOR TRACKED | - | DAEWOO DE12TIS | - |
| DAEWOO DX500LCG | - | EXCAVATOR TRACKED | - | DAEWOO DE12TIS | - |
| DOOSAN DH450 | - | EXCAVATOR COMPACT | - | DOOSAN D2848T | - |
| DOOSAN MEGA 160 | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58 | - |
| DOOSAN MEGA 160TC | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58 | - |
| DOOSAN MEGA 200-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | TIER 1 & 2 |
| DOOSAN MEGA 200-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TI | TIER 1 & 2 |
| DOOSAN MEGA 200TC-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | - |
| DOOSAN MEGA 200TC-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TI | - |
| DOOSAN MEGA 250-III | - | LOADER WHEELED | MEGA SERIES | DOOSAN D1146T | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB1146T | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN D1146T | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DB58TIS | - |
| DOOSAN MEGA 250-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE08TIS | - |
| DOOSAN MEGA 300-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE12TIA | TIER 1 |
| DOOSAN MEGA 300-V | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE08TIS | - |
| DOOSAN MEGA 400-III | - | LOADER WHEELED | MEGA SERIES | DOOSAN D2366T | - |
| DOOSAN MEGA 400-III PLUS | - | LOADER WHEELED | MEGA SERIES | DOOSAN DE12TI | - |
| DOOSAN SOLAR 130LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58T | - |
| DOOSAN SOLAR 140LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 170LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58T | - |
| DOOSAN SOLAR 170W-III | - | EXCAVATOR WHEELED | SOLAR SERIES | DOOSAN D1146N | - |
| DOOSAN SOLAR 175LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 180W-V | - | EXCAVATOR WHEELED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 200W-III | - | EXCAVATOR WHEELED | SOLAR SERIES | DOOSAN D1146N | - |
| DOOSAN SOLAR 210W-V | - | EXCAVATOR WHEELED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 220LC-III | - | EXCAVATOR WHEELED | SOLAR SERIES | DOOSAN D1146N | - |
| DOOSAN SOLAR 220LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TI | - |
| DOOSAN SOLAR 220LL | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TI | - |
| DOOSAN SOLAR 225 | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 225LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 225LL | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 225NLC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 255LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB58TIS | - |
| DOOSAN SOLAR 290LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB1146TI | - |
| DOOSAN SOLAR 290LL | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB1146TI | - |
| DOOSAN SOLAR 300LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB08TIS | - |
| DOOSAN SOLAR 300LL | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DB08TIS | - |
| DOOSAN SOLAR 420LC-V | - | EXCAVATOR TRACKED | SOLAR SERIES | DOOSAN DE12TIS | - |
| HYSTER H800 | - | FORKLIFT | - | CUMMINS M11 | - |
| INTERNATIONAL 9000 SERIES | - | TRUCK | - | CUMMINS N14 | - |
| INTERNATIONAL 9400 | - | TRUCK | - | CUMMINS N14 | - |
| INTERNATIONAL 9900I | - | TRUCK | - | CUMMINS N14 | - |
| JOHN DEERE 762A | - | SCRAPER | - | - 762A | - |
| JOHN DEERE 762B | - | SCRAPER | - | - 762B | - |
| JOHN DEERE 862 | - | SCRAPER | - | - 862 | - |
| JOHN DEERE 862B | - | SCRAPER | - | - 862B | - |
| PETERBILT 379 | - | TRUCK | - | CUMMINS N14 | - |
