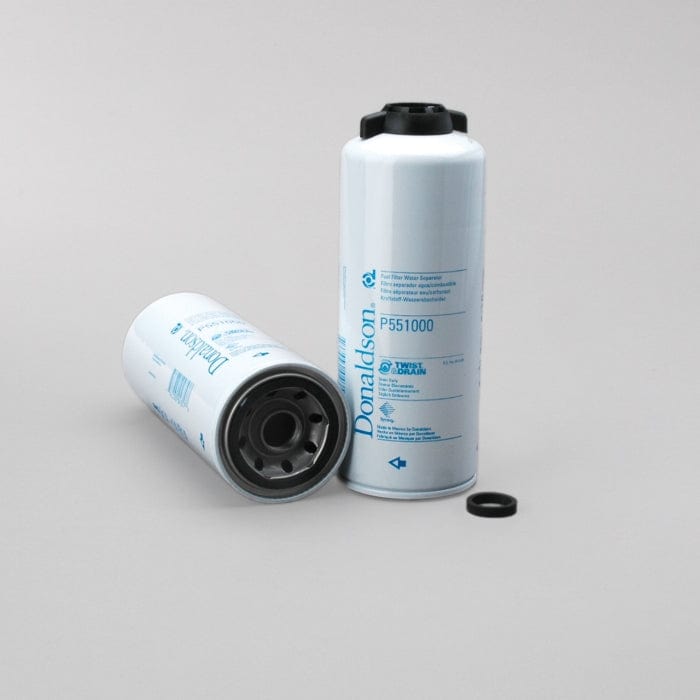

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551000
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P551000
Regular price
£20.48
Regular price
Sale price
£20.48
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551000
Fuel Filter, Water Separator Spin-On Twist&Drain| Stand Pipe | Yes Y/N |
| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 9.92 inch (252 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 10 micron |
| Efficiency Test Std | SAE J1488, J1985 |
| Emulsified H2O Efficiency | 96 Percent |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Composite |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Stand Pipe: Yes Y/N
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 252 mm (9.92 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 10 micron
- Efficiency Test Std: SAE J1488
- J1985:
- Emulsified H2O Efficiency: 96 Percent
- Collapse Burst: 5.2 bar (75 psi)
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Composite
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.276 m (11.02 inch)
- Packaged Weight: 0.798 kg (1.76 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Poland
- HTS Code: 8421230090
- UPC Code: 742330043578
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1292 | |
| AGCO | 72515622 | |
| AMERICAN MOTORS CORPORATION | SFF1000 | |
| AMERICAN PARTS | 95406 | |
| ATLAS COPCO | 5541709800 | |
| BIG A | 95431 | |
| BIG A | 95406 | |
| BLOUNT | 10064607 | |
| CASE/CASE IH | 84557707 | |
| CASE/CASE IH | J329289 | |
| CASE/CASE IH | 91756080 | |
| CATERPILLAR | 10064607 | |
| CATERPILLAR | 3I2113 | |
| CATERPILLAR | 2568753 | |
| CEDARAPIDS | 459300015901 | |
| CHINA LOCAL | VF2822 | |
| COMPAIR | 9826250880001 | |
| COOPERS | FSW4140 | |
| CUMMINS | 3843750 | |
| CUMMINS | 3161407 | |
| CUMMINS | 3329289 | |
| CUMMINS | 3889716 | |
| DAF | 3329289 | |
| DITCH WITCH | 5001779 | |
| DOOSAN | 97400033 | |
| DOOSAN | 47400033 | |
| EXMAN | SFF1000 | |
| FREIGHTLINER | DNP551000 | |
| FURUKAWA | 3381757H1 | |
| HITACHI | E12977622 | |
| HITACHI | L4377880 | |
| HITACHI | 4377880 | |
| HITACHI | 43778801 | |
| HYSTER | 1515707 | |
| HYUNDAI | 1SN626001 | |
| HYUNDAI | 11NB70010 | |
| IMPERIAL | 04FS1000 | |
| INGERSOLL RAND | 57479123 | |
| INTERNATIONAL | J329289 | |
| JCB | 32925968 | |
| JOHN DEERE | RE160384 | |
| KALMAR | 807201962 | |
| KAWASAKI | YE3329289 | |
| KAWASAKI | YEFS1000 | |
| KOBELCO | YN02PU1010P1 | |
| KOMATSU | 131036H2 | |
| KOMATSU | 1310368H2 | |
| KOMATSU | BF2486 | |
| KOMATSU | CUFS1000 | |
| KOMATSU | CU3329289 | |
| KRALINATOR | FS344 | |
| LIEBHERR | 5614398 | |
| LIUGONG | 53C0650 | |
| LIUGONG | 40C0433 | |
| MACK | 2191P551000 | |
| MANITOWOC | 4136470 | |
| MORBARK | 29213450 | |
| MTU | X57536400006 | |
| NEOPART | NEOFS1000 | |
| NEW HOLLAND | 84557707 | |
| NEW HOLLAND | 86021254 | |
| NEW HOLLAND | L86991015 | |
| NEW HOLLAND | 86991015 | |
| ORENSTEIN & KOPPEL | 1478371 | |
| PREVOST CAR | 19500500 | |
| SANY | 60205950 | |
| SANY | 60206018 | |
| SANY | B222100000596 | |
| SCHWING | 83550345 | |
| SISU | 1273400213 | |
| TEREX | 15271319 | |
| TORQUIP | 76194229 | |
| VERSATILE | 86029143 | |
| VMC | FS551000 | |
| VMC | FF551000 | |
| VME | 12977622 | |
| VOLVO | 12977622 | |
| VOLVO | FS1000 | |
| VOLVO | 85114046 | |
| WESTERN STAR TRUCK | 170013418 | |
| WHITE | 170014406 | |
| XCMG | 800163516 | |
| XCMG | 800105027 |
