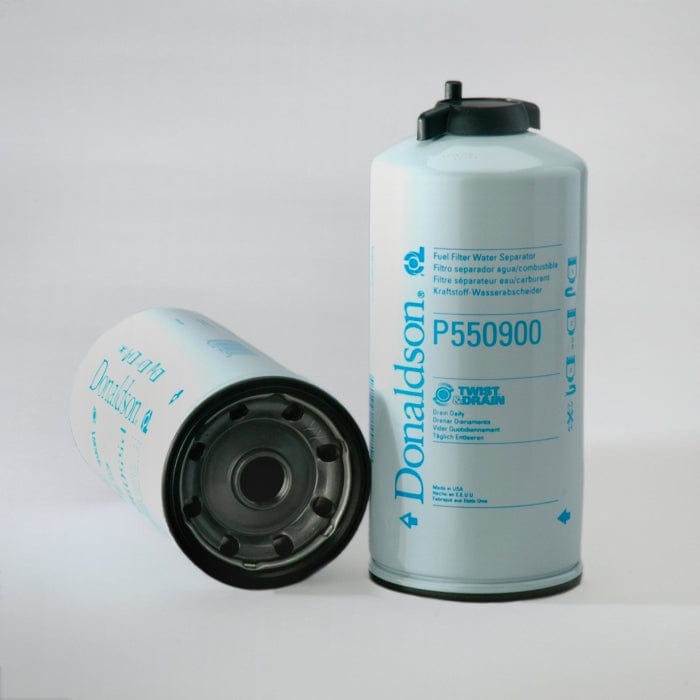

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P550900
Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P550900
Regular price
£36.51
Regular price
Sale price
£36.51
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550900
Fuel Filter, Water Separator Spin-On Twist&Drain| Stand Pipe | Yes Y/N |
| Outer Diameter | 4.22 inch (107.3 mm) |
| Thread Size | 1-14 UN |
| Length | 9.78 inch (248.3 mm) |
| Gasket OD | 3.86 inch (98 mm) |
| Gasket ID | 3.54 inch (90 mm) |
| Efficiency 99% | 20 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 85 Percent |
| Type | Water Separator |
| Style | Spin-On |
| Brand | Twist&Drain™ |
| Media Type | Cellulose |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Stand Pipe: Yes Y/N
- Outer Diameter: 107.3 mm (4.22 inch)
- Thread Size: 1-14 UN
- Length: 248.3 mm (9.78 inch)
- Gasket OD: 98 mm (3.86 inch)
- Gasket ID: 90 mm (3.54 inch)
- Efficiency 99%: 20 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 85 Percent
- Type: Water Separator
- Style: Spin-On
- Brand: Twist&Drain™
- Media Type: Cellulose
- Primary Application: Standard Drain Valve
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.108 m (4.30 inch)
- Packaged Width: 0.106 m (4.25 inch)
- Packaged Height: 0.246 m (9.85 inch)
- Packaged Weight: 1.028 kg (2.27 lb)
- Packaged Volume: 0.003 m3 (0.10 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330199718
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BOMAG | 332095668 | P551010 is 2 Pin WIF Sensor Alternative |
| CATERPILLAR | 1R0770 | P551010 is 2 Pin WIF Sensor Alternative |
| CATERPILLAR | 1R0769 | Donaldson Twist&Drain Style |
| CATERPILLAR | 1R0771 | |
| CATERPILLAR | 1749570 | P551010 is 2 Pin WIF Sensor Alternative |
| CATERPILLAR | 4238525 | P551010 is 2 Pin WIF Sensor Alternative |
| CATERPILLAR | 3261642 | P551010 is 2 Pin WIF Sensor Alternative |
| CATERPILLAR | 1R0781 | Not for CAT 785D and 994K sold outside EMEA |
| CATERPILLAR | 3261641 | |
| CATERPILLAR | 4238521 | P551010 is 2 Pin WIF Sensor Alternative |
| CATERPILLAR | 4238524 | P551010 is 2 Pin WIF Sensor Alternative |
| CHINA LOCAL | STCX769A | |
| CHINA LOCAL | STCX769B | |
| CHINA LOCAL | STCX770 | |
| CHINA LOCAL | STCX771A | |
| CHINA LOCAL | STCX771B | |
| CLAAS | 7992091 | |
| ECOLOG | 6003722 | |
| EPIROC | 3222343171 | |
| EPIROC | 6060008045 | |
| EPIROC | 2658383143 | |
| PERKINS | 4587259 | |
| SANDVIK | 55198718 | |
| SANDVIK | 912028700 | |
| SANDVIK | 69038969 | |
| SANDVIK | EN1001 | |
| VMC | AF550626 | P551010 is 2 Pin WIF Sensor Alternative |
| VMC | FS550626 | P551010 is 2 Pin WIF Sensor Alternative |
| WIRTGEN | 2110146 | |
| WIRTGEN | 187609 | |
| XCMG | 803442628 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ATLAS COPCO DM45 | - | DRILLING EQUIPMENT | - | CATERPILLAR C18 | - |
| CATERPILLAR 16H | - | GRADER | 16 SERIES | CATERPILLAR 3406T | - |
| CATERPILLAR 3196 | - | ENGINE | - | - 3196 | - |
| CATERPILLAR 322C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 322CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR 325C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 325CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 325CLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR 330C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 | - |
| CATERPILLAR 330CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 | - |
| CATERPILLAR 330CLN | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C9 ATAAC | - |
| CATERPILLAR 330CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C9 | - |
| CATERPILLAR 345D | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 345DL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C13 ACERT | - |
| CATERPILLAR 365C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 365CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C15 ACERT | - |
| CATERPILLAR 385C | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 385CL | - | EXCAVATOR TRACKED | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 385CMHPU | - | POWER UNIT | 300 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 525B | - | SKIDDER | - | CATERPILLAR 3126 | - |
| CATERPILLAR 570B | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126B | - |
| CATERPILLAR 572R II | - | PIPE LAYER | 500 SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR 580B | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126B | - |
| CATERPILLAR 627G | - | SCRAPER | 600 SERIES | CATERPILLAR 3306, C-9 | - |
| CATERPILLAR 631G | - | SCRAPER | - | CATERPILLAR 3408 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3408E | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR C9 | - |
| CATERPILLAR 637G | - | SCRAPER | COAL | CATERPILLAR 3306 | - |
| CATERPILLAR 638G | - | SCRAPER | - | CATERPILLAR C9 | - |
| CATERPILLAR 772 | - | DUMP TRUCK | 700 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 834H | - | DOZER WHEELED | 800 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR 836H | - | COMPACTOR | 800 SERIES | CATERPILLAR C18 ACERT | - |
| CATERPILLAR 844H | - | DOZER WHEELED | - | - 844H | - |
| CATERPILLAR 924H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 924HZ | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 928HZ | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 930H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C6.6TA ACERT | - |
| CATERPILLAR 938G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 938G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA1 | - |
| CATERPILLAR 950G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 953C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 962G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 962G II | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126BTA4 | - |
| CATERPILLAR 963C | - | LOADER TRACKED | 900 SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR 966M | - | LOADER WHEELED | - | CATERPILLAR C9.3 ACERT | - |
| CATERPILLAR 980G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3408TAE | - |
| CATERPILLAR 980M | - | LOADER WHEELED | - | CATERPILLAR C13 | - |
| CATERPILLAR 988H | - | LOADER WHEELED | 900 SERIES | CATERPILLAR C18TA ACERT | - |
| CATERPILLAR C32 | - | MARINE ENGINE | - | CATERPILLAR C32 | - |
| CATERPILLAR D5N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D5N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3126B | - |
| CATERPILLAR D6N LGP | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D6N XL | - | TRACTOR TRACKED | D SERIES | CATERPILLAR C6.6 ACERT | - |
| CATERPILLAR D7R | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R II | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R II LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R II XR | - | DOZER TRACKED | D SERIES | CATERPILLAR 3176C | - |
| CATERPILLAR D7R LGP | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D7R XR | - | DOZER TRACKED | D SERIES | CATERPILLAR C9 ACERT | - |
| CATERPILLAR D8R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR D8R II | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3406E | - |
| CATERPILLAR D9N | - | TRACTOR TRACKED | D SERIES | CATERPILLAR 3408 | - |
| CATERPILLAR D9R | - | DOZER TRACKED | D SERIES | CATERPILLAR 3408E | - |
| CATERPILLAR M325C | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3126B ATAAC | - |
| CATERPILLAR RR250B | - | ROAD STABILIZER | RR SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR SS250B | - | ROAD STABILIZER | SS SERIES | CATERPILLAR 3406C | - |
| CATERPILLAR TK1051 | - | FORESTRY EQUIPMENT | - | - TK1051 | - |
| CATERPILLAR TK370 | - | FELLER BUNCHER | - | CATERPILLAR 3126 | - |
| CATERPILLAR TK380 | - | FELLER BUNCHER | - | CATERPILLAR 3126 | - |
| CATERPILLAR TK711 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK721 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK722 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK732 | - | FELLER BUNCHER | - | CATERPILLAR C9 | - |
| CATERPILLAR TK741 | - | FORESTRY EQUIPMENT | - | - TK741 | - |
| CATERPILLAR TK751 | - | FORESTRY EQUIPMENT | - | - TK751 | - |
| CATERPILLAR TK752 | - | FORESTRY EQUIPMENT | - | - TK752 | - |
| CATERPILLAR W345C | - | EXCAVATOR WHEELED | W SERIES | CATERPILLAR C13 ACERT | - |
| WIRTGEN W 2200 | 2010 | MILLING EQUIPMENT | W SERIES | CATERPILLAR C27 ATAAC | - |
| XCMG XE700DF | - | EXCAVATOR | - | PERKINS - | - |
| XCMG XE750D | - | EXCAVATOR | - | PERKINS 2506D-E15TA | - |
| XCMG XE800D | - | EXCAVATOR TRACKED | - | PERKINS 2506D-E15TA | - |
| XCMG XE950DA | - | EXCAVATOR | - | PERKINS 2806D | - |
| XCMG XE950G | - | EXCAVATOR | - | PERKINS 2806D | - |
