• Donaldson Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P550248
1 1

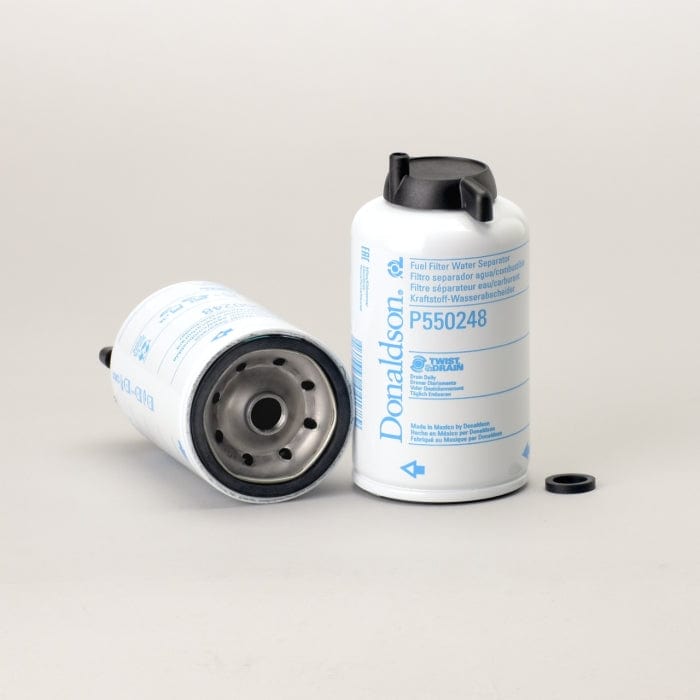

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P550248

Fuel Filter, Water Separator Spin-On Twist&Drain - Donaldson P550248

£14.39
£14.39
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550248

Fuel Filter, Water Separator Spin-On Twist&Drain
Stand Pipe Yes Y/N
Outer Diameter 3.04 inch (77.1 mm)
Thread Size M16 x 1.5
Length 5.81 inch (147.6 mm)
Gasket OD 2.76 inch (70.2 mm)
Gasket ID 2.38 inch (60.5 mm)
Efficiency 99% 15 micron
Efficiency Test Std ISO 19438
Emulsified H2O Efficiency 90 Percent
Collapse Burst 80 psi (5.5 bar)
Type Water Separator
Style Spin-On
Brand Twist&Drain™
Media Type Cellulose
Primary Application CUMMINS 3903202
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Stand Pipe: Yes Y/N
  • Outer Diameter: 77.1 mm (3.04 inch)
  • Thread Size: M16 x 1.5
  • Length: 147.6 mm (5.81 inch)
  • Gasket OD: 70.2 mm (2.76 inch)
  • Gasket ID: 60.5 mm (2.38 inch)
  • Efficiency 99%: 15 micron
  • Efficiency Test Std: ISO 19438
  • Emulsified H2O Efficiency: 90 Percent
  • Collapse Burst: 5.5 bar (80 psi)
  • Type: Water Separator
  • Style: Spin-On
  • Brand: Twist&Drain™
  • Media Type: Cellulose
  • Primary Application: CUMMINS 3903202
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.076 m (3.05 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.149 m (5.95 inch)
  • Packaged Weight: 0.438 kg (0.97 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-10
  • HTS Code: 8421230090
  • UPC Code: 742330041789

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO TP1069
AGCO 72515734
AWD A4027606
BERGERAT MONNOYEUR E6646
BIG A 95472
BLAW KNOX 0016482200
BLAW KNOX 9014100200
BLOUNT F433395
BOBCAT 6667352
BOMAG 05821330
BOMAG 5821330
CASE/CASE IH 86990957
CASE/CASE IH J931062
CASE/CASE IH J843760
CASE/CASE IH J903202
CASE/CASE IH J286503
CASE/CASE IH 84299977
CASE/CASE IH 84565895
CASE/CASE IH 84171692
CASE/CASE IH 114545A1
CASE/CASE IH 71104220
CATERPILLAR 3I1808
CAV 7176496
CLAAS 649500
COOPERS FSW4101
COOPERS AZF785
COOPERS AZL785
CROSLAND 5030
CUMMINS 3843760
CUMMINS 1492827
CUMMINS 3286503
CUMMINS 3931062
CUMMINS 3831062
CUMMINS 3931064
CUMMINS AX1004559
CUMMINS 3903202
DAF 0490160
DAF 490160
DAF CBU1177
DAF CBU1920
DAVCO P550248288140
DEZZI 350066
DMT CORPORATION 531009
DRESSER 1240619H1
ERF (E.R.F.) 2011055
ERF (E.R.F.) C3903202
FIAT 73175965
FIAT 73175973
FORD F3HZ9365E
FORD F3HZ9365C
FORD 9576P550248
FORD 3843760
FREIGHTLINER DNP550248
FURUKAWA 1290383H1
FURUKAWA 1240619H1
GRADALL 77383303
GRAINGER 56DM18
GREYFRIARS 837S
GT PIECES ET SERVICES 2241108
HAVAM HD0248
HOUGH 1240619H1
INGERSOLL RAND 59477570
INTERCONTINENTAL ALG2051
INTERNATIONAL 1133493R1
INTERNATIONAL 1240619H1
JLG 8320270
JOHN DEERE F121868
JOHN DEERE F433395
KENWORTH 3903202
KNECHT KC190
KOMATSU 1240619H2
KOMATSU 6732716310
KOMATSU 1240619H1
KOMATSU CUFS1251
KOMATSU 6733719110
KOMATSU 20701K1230
LEYLAND-DAF (LDV) CVU1177
LEYLAND-DAF (LDV) CBU1920
LEYLAND-DAF (LDV) CBU1177
LUCAS 601
LUCAS 7176601
LUCAS HDF601
MCCORMICK MCJ931062
MECALAC E537A0016
MECALAC 537A0016
MERCEDES-BENZ 940000604
MORBARK 29215544
NEW HOLLAND L86990957
NEW HOLLAND 76194582
NEW HOLLAND 86555246
NEW HOLLAND 73175965
NEW HOLLAND 71104220
NEW HOLLAND 87803264
ONAN 1866524
ORENSTEIN & KOPPEL 8480286
RENAULT VI 7701030195
ROVER CBU1177
SDMO 330560222
SHANTUI D0003401
TAYLOR V26560608
TFMC L02322
TIMBERJACK F433395
UNIPART 015007582
UNIPART CBU1177
UNIPART 15007582
UNITED CENTRAL INDUSTRIAL SUPP 688392
UNIVERSAL COACH PARTS T121082
VAPORMATIC VPD6032
VERMEER 237490003
VERMEER 2374900031
VMC FS550248
VOLVO 3134055
WEICHAI 1000700909
YALE 580004421
YALE 150127002
