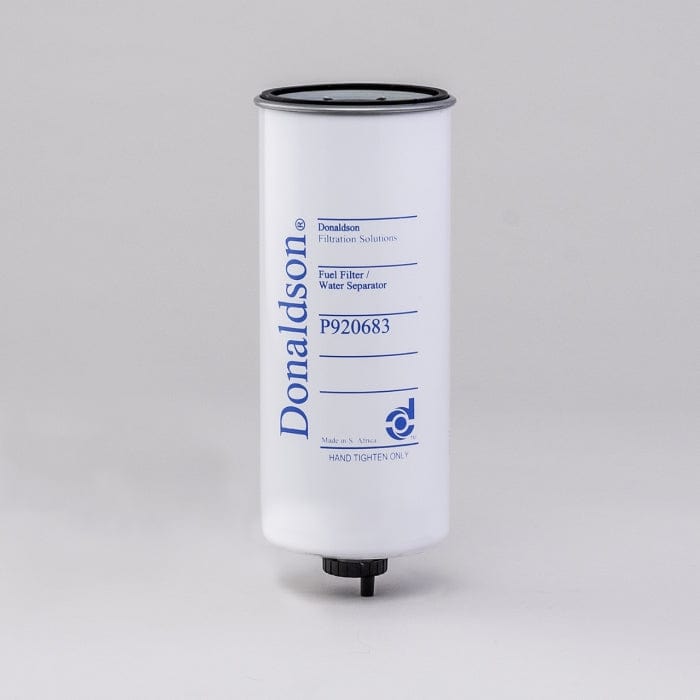

Fuel Filter, Water Separator Spin-On - Donaldson P920683
Fuel Filter, Water Separator Spin-On - Donaldson P920683
Regular price
£63.91
Regular price
Sale price
£63.91
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P920683
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.40 inch (111.8 mm) |
| Thread Size | 1 1/4-12 UN |
| Length | 11.33 inch (287.7 mm) |
| Gasket OD | 4.25 inch (108 mm) |
| Gasket ID | 3.86 inch (98 mm) |
| Efficiency 99% | 15 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 99.00 Percent |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 111.8 mm (4.40 inch)
- Thread Size: 1 1/4-12 UN
- Length: 287.7 mm (11.33 inch)
- Gasket OD: 108 mm (4.25 inch)
- Gasket ID: 98 mm (3.86 inch)
- Efficiency 99%: 15 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 99.00 Percent
- Collapse Burst: 6.9 bar (100 psi)
- Type: Water Separator
- Style: Spin-On
- Media Type: Cellulose
- Notes: Not for Marine Applications
Packaged Dimensions
- Packaged Length: 0.120 m (4.80 inch)
- Packaged Width: 0.120 m (4.80 inch)
- Packaged Height: 0.323 m (12.90 inch)
- Packaged Weight: 1.362 kg (3.00 lb)
- Packaged Volume: 0.005 m3 (0.17 ft3)
Other Information
- Country of Origin: South Africa
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330049143
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ASSOCIATE AUTOMOTIVE | XBU3194 | |
| BELL | AT252816 | |
| BELL | 220090 | |
| BELL | 220090B | |
| CATERPILLAR | 3I1424 | |
| D A PRODUCTS PTY LTD | XBU3194 | |
| DEZZI | 350057 | |
| FORD | 9576P920683 | |
| JOHN DEERE | AT252816 | |
| KOMATSU | 987811C1 | |
| LEYLAND-DAF (LDV) | RDK9220 | |
| LOESING | 020781 | |
| LOESING | 20781 | |
| MAN | 156125060501 | |
| MAN | 56125060501 | |
| MERCEDES-BENZ | HXV3974769969 | |
| NISSAN/UD TRUCKS | 1640020683ND | |
| NISSAN/UD TRUCKS | 1640020683 | |
| ROVER | RDK9220 | |
| TFMC | T47261 | |
| UNIPART | RDK9220 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 689080 |
