• Donaldson Fuel Filter, Water Separator Spin-On - Donaldson P555060
1 1

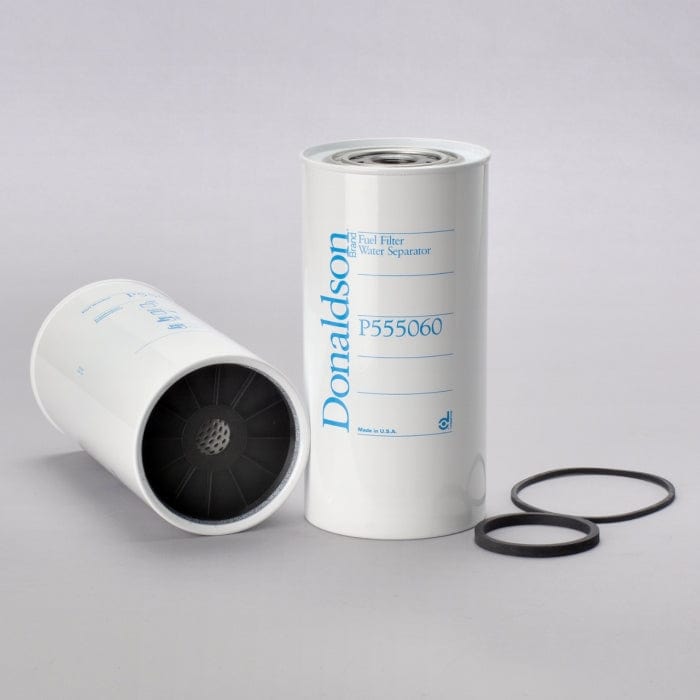

Fuel Filter, Water Separator Spin-On - Donaldson P555060

Fuel Filter, Water Separator Spin-On - Donaldson P555060

£44.26
£44.26
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P555060

Fuel Filter, Water Separator Spin-On
Outer Diameter 4.38 inch (111.3 mm)
Thread Size 1-14 UN
Length 8.57 inch (217.6 mm)
Bowl Thread 3 3/4-10 UN
Efficiency 50% 3 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95 Percent
Collapse Burst 75 psi (5.2 bar)
Type Water Separator
Style Spin-On
Media Type Cellulose
Primary Application RACOR S3206
View full details

Specifications

Attributes

  • Outer Diameter: 111.3 mm (4.38 inch)
  • Thread Size: 1-14 UN
  • Length: 217.6 mm (8.57 inch)

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.217 m (8.66 inch)
  • Packaged Weight: 0.785 kg (1.73 lb)
  • Packaged Volume: 0.003 m3 (0.09 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-08
  • HTS Code: 8421230090
  • UPC Code: 742330044919

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 95446
CATERPILLAR 3I1318
FREIGHTLINER DNP555060
INGERSOLL RAND 89303002
LOESING 025029
LOESING 25029
ORENSTEIN & KOPPEL 1450138
TEREX G6450540
WIRTGEN 119393

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
WIRTGEN W 2000 1999 MILLING EQUIPMENT W SERIES CATERPILLAR C15 ATAAC -
WIRTGEN W 2100 2004 MILLING EQUIPMENT W SERIES CATERPILLAR C18 ATAAC -
WIRTGEN W 2200 2010 MILLING EQUIPMENT W SERIES CATERPILLAR C27 ATAAC -
WIRTGEN W1000 - FINISHER - CATERPILLAR 3126B ATAAC -
