• Donaldson Fuel Filter, Water Separator Spin-On - Donaldson P554470
1 1

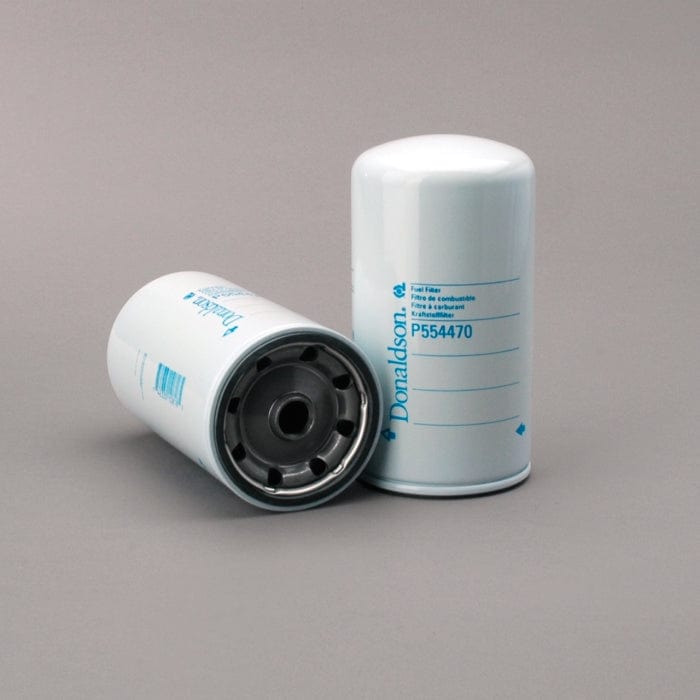

Fuel Filter, Water Separator Spin-On - Donaldson P554470

Fuel Filter, Water Separator Spin-On - Donaldson P554470

£16.20
£16.20
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P554470

Fuel Filter, Water Separator Spin-On
Outer Diameter 4.23 inch (107.5 mm)
Thread Size M22 x 1.5
Length 7.95 inch (202 mm)
Gasket OD 3.90 inch (99 mm)
Gasket ID 3.56 inch (90.3 mm)
Efficiency 99% 25 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 100 psi (6.9 bar)
Type Water Separator
Style Spin-On
Media Type Cellulose
Primary Application MACK 483GB470M
View full details

Specifications

Attributes

  • Outer Diameter: 107.5 mm (4.23 inch)
  • Thread Size: M22 x 1.5
  • Length: 202 mm (7.95 inch)
  • Gasket OD: 99 mm (3.90 inch)
  • Gasket ID: 90.3 mm (3.56 inch)
  • Efficiency 99%: 25 micron
  • Efficiency Test Std: SAE J1985
  • Emulsified H2O Efficiency: 95.00 Percent
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Water Separator
  • Style: Spin-On
  • Media Type: Cellulose
  • Primary Application: MACK 483GB470M

Packaged Dimensions

  • Packaged Length: 0.35 FT
  • Packaged Width: 0.35 FT
  • Packaged Height: 0.66 FT
  • Packaged Weight: 0.962 kg (2.12 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330108185

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 95588
KRALINATOR F358
KUBOTA 152133209
MACK 483GB470M
MACK 25502421
MACK 483GB470AM
MACK 2191P554470
VMC FF554470
VOLVO 85114062

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HAMM 6.4V - COMPACTOR - DEUTZ BF4L1011 -
KUBOTA L245DTP - TRACTOR - - L245DTP -
KUBOTA L245FP - TRACTOR - - L245FP -
KUBOTA L245HC - TRACTOR - - L245HC -
KUBOTA L245TP - TRACTOR - - L245TP -
