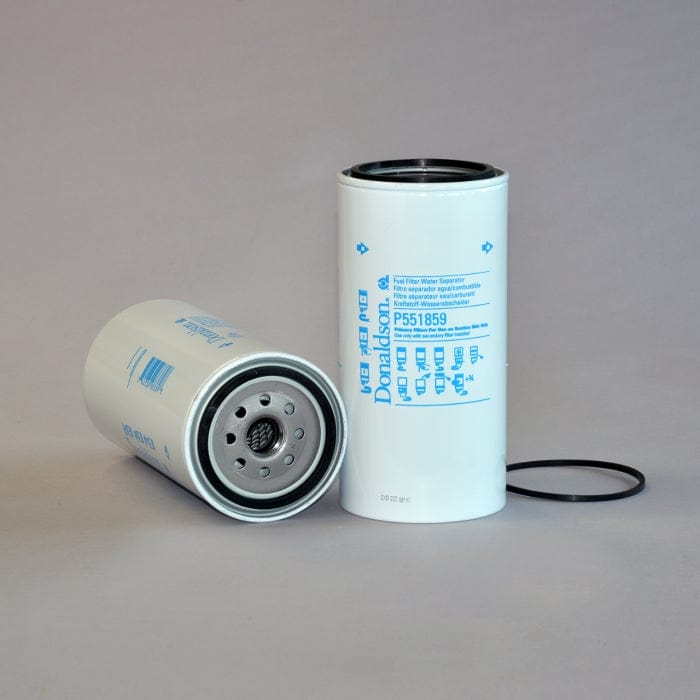

Fuel Filter, Water Separator Spin-On - Donaldson P551859
Fuel Filter, Water Separator Spin-On - Donaldson P551859
Regular price
£34.07
Regular price
Sale price
£34.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551859
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.25 inch (108 mm) |
| Thread Size | 1-14 UN |
| Length | 8.54 inch (217 mm) |
| Gasket OD | 3.48 inch (88.4 mm) |
| Gasket ID | 3.17 inch (80.4 mm) |
| Bowl Thread | 3 3/4-10 UN |
| Efficiency 90% | 30 micron |
| Efficiency Test Std | ISO 4402/11171 |
| Type | Water Separator |
| Style | Spin-On |
| Primary Application | RACOR R120P |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 108 mm (4.25 inch)
- Thread Size: 1-14 UN
- Length: 217 mm (8.54 inch)
- Gasket OD: 88.4 mm (3.48 inch)
- Gasket ID: 80.4 mm (3.17 inch)
- Bowl Thread: 3 3/4-10 UN
- Efficiency 90%: 30 micron
- Efficiency Test Std: ISO 4402/11171
- Type: Water Separator
- Style: Spin-On
- Primary Application: RACOR R120P
Packaged Dimensions
- Packaged Length: 0.38 FT
- Packaged Width: 0.38 FT
- Packaged Height: 0.77 FT
- Packaged Weight: 1.062 kg (2.34 lb)
- Packaged Volume: 0.003 m3 (0.11 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330983898
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ATLAS COPCO | 2914823600 | |
| ATLAS COPCO | 2914997400 | |
| ATLAS COPCO | 16260347 | |
| CATERPILLAR | 4308929 | |
| CHINA LOCAL | VF2129 | |
| CHINA LOCAL | VF1208 | |
| ISUZU | 8976051181 | |
| ISUZU | 8982019510 | |
| ISUZU | 8980818620 | |
| KAWASAKI | YZ8980219360 | |
| SANY | 60206781 | |
| SANY | 60037354 | |
| TEREX | 45056112 | |
| VMC | FS550748 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR CT660 | - | TRUCK | - | CATERPILLAR CT11 | - |
| CATERPILLAR CT660 | - | TRUCK | - | CATERPILLAR CT13 | - |
| CATERPILLAR CT660 | - | TRUCK | - | CATERPILLAR CT15 | - |
| ISUZU Giga C Series CXY415 CXY52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCN | - |
| ISUZU Giga C Series CXY455 CXY52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCC | - |
| ISUZU Giga C Series CXZ415 CXZ52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCN | - |
| ISUZU Giga C Series CXZ455 CXZ52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCC | - |
| ISUZU Giga C Series EXD455 EXD52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCC | - |
| ISUZU Giga C Series EXY455 EXY52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCC | - |
| ISUZU Giga C Series EXY510 EXY52 Sitec Series 2 | - | TRUCK | - | ISUZU 6WG1-TCS | - |
