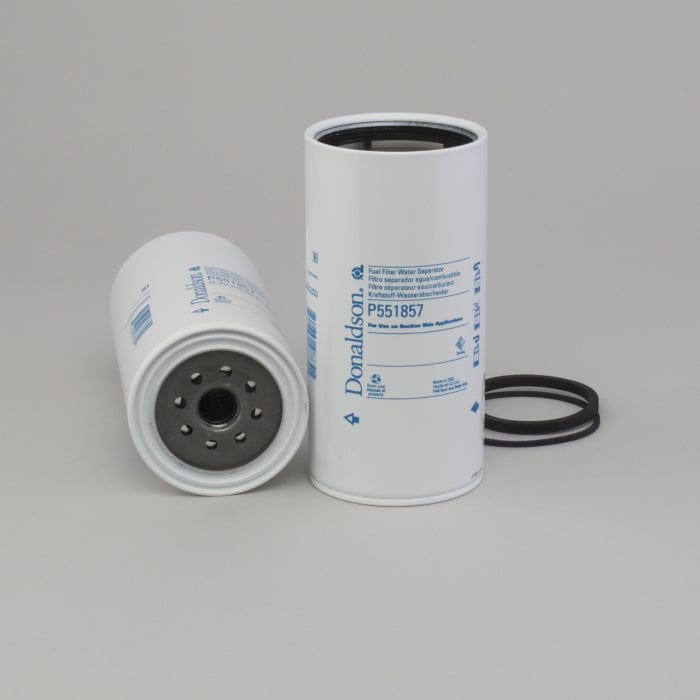

• Donaldson Fuel Filter, Water Separator Spin-On - Donaldson P551857
1 1

Fuel Filter, Water Separator Spin-On - Donaldson P551857

Fuel Filter, Water Separator Spin-On - Donaldson P551857

£37.13
£37.13
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551857

Fuel Filter, Water Separator Spin-On
Outer Diameter 4.29 inch (109 mm)
Thread Size 1-14 UN
Length 8.54 inch (217 mm)
Gasket OD 3.57 inch (90.8 mm)
Gasket ID 3.18 inch (80.8 mm)
Bowl Thread 3 3/4-10 UN
Efficiency 98% 2 micron
Efficiency Test Std ISO 4402/11171
Type Water Separator
Style Spin-On
Media Type Meltblown
Primary Application RACOR R120S
View full details

Specifications

Attributes

  • Outer Diameter: 109 mm (4.29 inch)
  • Thread Size: 1-14 UN
  • Length: 217 mm (8.54 inch)
  • Gasket OD: 90.8 mm (3.57 inch)
  • Gasket ID: 80.8 mm (3.18 inch)
  • Bowl Thread: 3 3/4-10 UN
  • Efficiency 98%: 2 micron
  • Efficiency Test Std: ISO 4402/11171
  • Type: Water Separator
  • Style: Spin-On
  • Media Type: Meltblown
  • Primary Application: RACOR R120S

Packaged Dimensions

  • Packaged Length: 0.123 m (4.90 inch)
  • Packaged Width: 0.123 m (4.90 inch)
  • Packaged Height: 0.230 m (9.20 inch)
  • Packaged Weight: 0.881 kg (1.94 lb)
  • Packaged Volume: 0.004 m3 (0.13 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330987391

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CATERPILLAR 1290373
MORBARK 29249535
VMC FS551746
