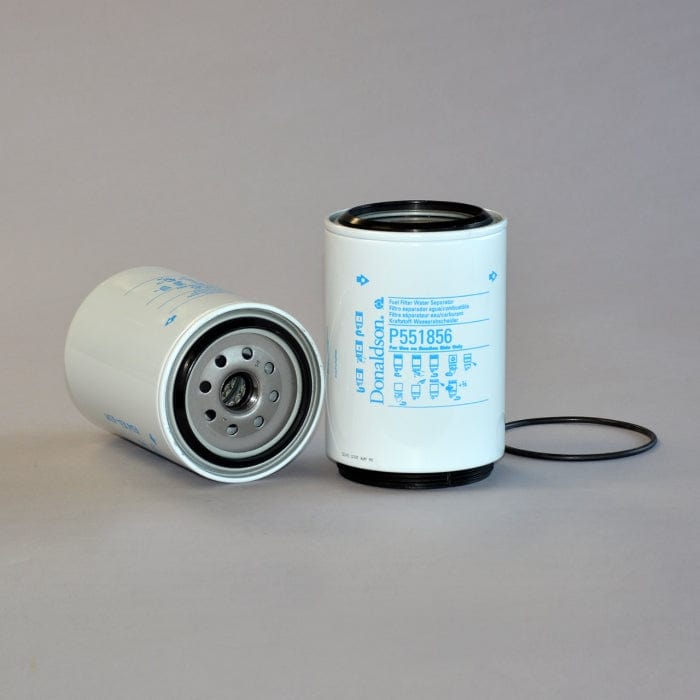

Fuel Filter, Water Separator Spin-On - Donaldson P551856
Fuel Filter, Water Separator Spin-On - Donaldson P551856
Regular price
£29.37
Regular price
Sale price
£29.37
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551856
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.24 inch (107.7 mm) |
| Thread Size | 1-14 UN |
| Length | 5.65 inch (143.5 mm) |
| Gasket OD | 3.54 inch (90 mm) |
| Gasket ID | 3.15 inch (80 mm) |
| Bowl Thread | 3 3/4-10 BUTT (ANSI B1.9) |
| Efficiency 90% | 30 micron |
| Efficiency Test Std | ISO 4402/11171 |
| Type | Water Separator |
| Style | Spin-On |
| Primary Application | RACOR R90P |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.7 mm (4.24 inch)
- Thread Size: 1-14 UN
- Length: 143.5 mm (5.65 inch)
- Gasket OD: 90 mm (3.54 inch)
- Gasket ID: 80 mm (3.15 inch)
- Bowl Thread: 3 3/4-10 BUTT (ANSI B1.9)
- Efficiency 90%: 30 micron
- Efficiency Test Std: ISO 4402/11171
- Type: Water Separator
- Style: Spin-On
- Primary Application: RACOR R90P
Packaged Dimensions
- Packaged Length: 0.38 FT
- Packaged Width: 0.38 FT
- Packaged Height: 0.53 FT
- Packaged Weight: 0.854 kg (1.88 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330983300
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| ALCO | SP1314 | |
| ATLAS COPCO | 2914807000 | |
| CHINA LOCAL | STCX785AB | |
| CHINA LOCAL | VF1467 | |
| CLAAS | 687110 | OEM Bowl Thread Style |
| CLAAS | 0687110 | |
| CLAAS | 11342140 | |
| CLAAS | 0007733150 | |
| CLAAS | 7733150 | |
| DAF | 1296851 | |
| GROVE | 04157422 | |
| GROVE | 3322877 | |
| GROVE | 4157422 | |
| HIMOINSA | 3035101 | |
| HITACHI | RE500186 | |
| HYUNDAI | 11EM52320 | |
| JOHN DEERE | RE500186 | |
| KNECHT | KC249D | |
| KOHLER | 411900028 | |
| KONECRANES | 8802008 | |
| MAN | 51125030066 | |
| MERCEDES-BENZ | 3754770002 | |
| MERCEDES-BENZ | A3754770002 | |
| PREVOST CAR | 19500494 | |
| SANDVIK | 912029800 | |
| SANY | A222100000207 | |
| SCANIA | 1393640 | |
| VMC | FS551767 | |
| VOLVO | 3945966 | |
| VOLVO | 8159975 | |
| VOLVO | 11110189 | |
| VOLVO | 81599755 |
