• Donaldson Fuel Filter, Water Separator Spin-On - Donaldson P551854
1 1

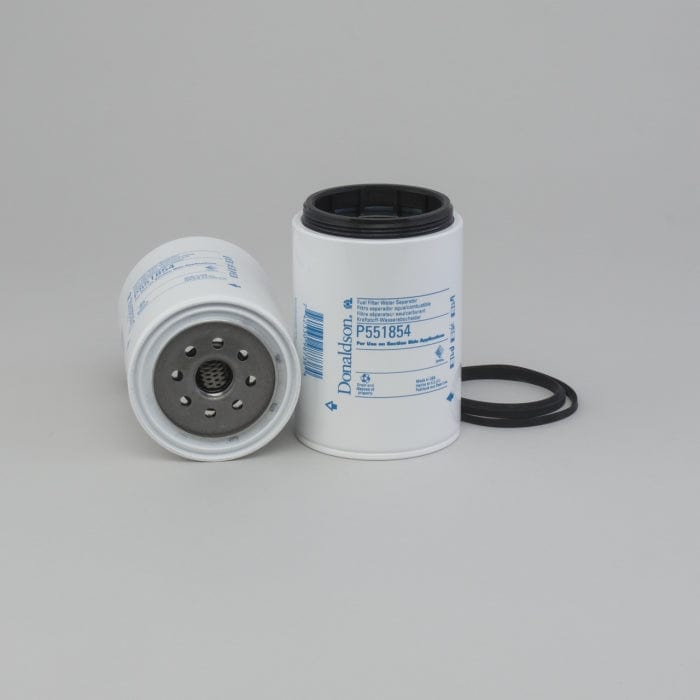

Fuel Filter, Water Separator Spin-On - Donaldson P551854

Fuel Filter, Water Separator Spin-On - Donaldson P551854

£26.04
£26.04
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551854

Fuel Filter, Water Separator Spin-On
Outer Diameter 4.33 inch (110 mm)
Thread Size 1-14 UN
Length 5.65 inch (143.5 mm)
Gasket OD 3.54 inch (90 mm)
Gasket ID 3.15 inch (80 mm)
Bowl Thread 3 3/4-10 BUTT (ANSI B1.9)
Overall Length 6.11 inch (155.2 mm)
Efficiency 98% 2 micron
Efficiency Test Std ISO 4402/11171
Type Water Separator
Style Spin-On
Media Type Meltblown
Primary Application RACOR R90S
View full details

Specifications

Attributes

  • Outer Diameter: 110 mm (4.33 inch)
  • Thread Size: 1-14 UN
  • Length: 143.5 mm (5.65 inch)
  • Gasket OD: 90 mm (3.54 inch)
  • Gasket ID: 80 mm (3.15 inch)
  • Bowl Thread: 3 3/4-10 BUTT (ANSI B1.9)
  • Overall Length: 155.2 mm (6.11 inch)
  • Efficiency 98%: 2 micron
  • Efficiency Test Std: ISO 4402/11171
  • Type: Water Separator
  • Style: Spin-On
  • Media Type: Meltblown
  • Primary Application: RACOR R90S

Packaged Dimensions

  • Packaged Length: 0.38 FT
  • Packaged Width: 0.38 FT
  • Packaged Height: 0.53 FT
  • Packaged Weight: 0.858 kg (1.89 lb)
  • Packaged Volume: 0.002 m3 (0.08 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330987384

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BLUEBIRD 1967009
DETROIT DIESEL 23514654
FREIGHTLINER ABPS3226FL01
GREYFRIARS 883S
HINO 234011700
HINO 234011700A
HINO S234011700

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
HINO 145 - TRUCK - HINO J05D-TA -
HINO 165 - TRUCK - HINO J05D-TA -
HINO 185 - TRUCK - HINO J05D-TA -
HINO 258 - TRUCK - HINO J08E-TA -
