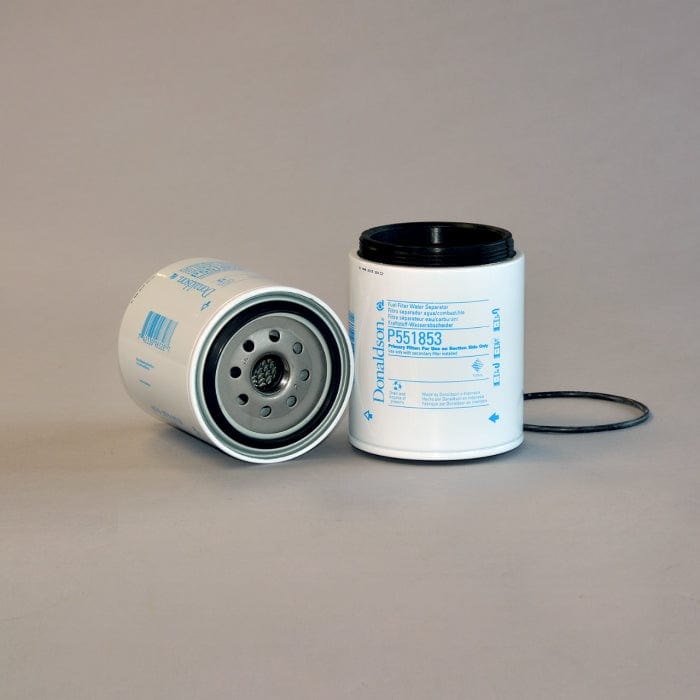

Fuel Filter, Water Separator Spin-On - Donaldson P551853
Fuel Filter, Water Separator Spin-On - Donaldson P551853
Regular price
£24.07
Regular price
Sale price
£24.07
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551853
Fuel Filter, Water Separator Spin-On| Outer Diameter | 4.24 inch (107.7 mm) |
| Thread Size | 1-14 UN |
| Length | 4.61 inch (117 mm) |
| Gasket OD | 3.54 inch (90 mm) |
| Gasket ID | 3.15 inch (80 mm) |
| Bowl Thread | 3 3/4-10 BUTT |
| Overall Length | 5.07 inch (128.7 mm) |
| Efficiency 90% | 30 micron |
| Efficiency Test Std | ISO 4402/11171 |
| Type | Water Separator |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.7 mm (4.24 inch)
- Thread Size: 1-14 UN
- Length: 117 mm (4.61 inch)
- Gasket OD: 90 mm (3.54 inch)
- Gasket ID: 80 mm (3.15 inch)
- Bowl Thread: 3 3/4-10 BUTT
- Overall Length: 128.7 mm (5.07 inch)
- Efficiency 90%: 30 micron
- Efficiency Test Std: ISO 4402/11171
- Type: Water Separator
Packaged Dimensions
- Packaged Length: 0.38 FT
- Packaged Width: 0.38 FT
- Packaged Height: 0.53 FT
- Packaged Weight: 0.776 kg (1.71 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330983287
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1285 | |
| AMERICAN MOTORS CORPORATION | 234011630 | |
| AMERICAN MOTORS CORPORATION | FC11090 | |
| AMERICAN PARTS | 95231 | |
| BLUEBIRD | 4299582 | |
| BOMBARDIER | 921144764 | |
| CARRIER TRANSICOLD | 3001099 | |
| CARRIER TRANSICOLD | 300109900 | |
| CARRIER TRANSICOLD | 3001079 | |
| CARRIER TRANSICOLD | 300107900 | |
| CASE/CASE IH | 84211170 | |
| CATERPILLAR | 3I2075 | |
| CHINA LOCAL | VF1914 | |
| EXXEL PTY LTD | 14240038 | |
| EXXEL PTY LTD | 141424038 | |
| FIAT | F1HZ9365A | |
| FORD | F1HZ9365A | |
| FORD | F08N9176AA | |
| FORD | F08N9176M | |
| FREIGHTLINER | DNP550730 | |
| GREYFRIARS | 857S | |
| HINO | 234011440 | |
| HINO | 234011441A | |
| HINO | 234011440A | |
| HINO | 234011441 | OEM Bowl Thread Style |
| HINO | 23304ev072 | |
| HYUNDAI | 11NA72011 | |
| HYUNDAI | 11NA72000 | |
| INGERSOLL RAND | 13224043 | |
| INGERSOLL RAND | 51949378 | |
| JCB | 32925218 | |
| KRALINATOR | FS239R | |
| KRALINATOR | FS239 | |
| MERCEDES-BENZ | A3760927001KZ | |
| NEW HOLLAND | 84989840 | |
| NEW HOLLAND | LV233990E0010 | OEM Bowl Thread Style |
| RENAULT VI | 8200102609 | |
| VMC | FS550746 | |
| VMC | FS550730 | |
| VMC | FS550436 | |
| VOLKSWAGEN | 2RD127491 | |
| VOLVO | 13224043 | |
| VOLVO | 8394365 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FORD 6.6L | - | ENGINE | - | - 6.6L | - |
| FORD 6.6L BRAZILIAN | - | ENGINE | - | - 6.6L BRAZILIAN | - |
| FORD 7.8L | - | ENGINE | - | - 7.8L | - |
| FORD 7.8L BRAZILIAN | - | ENGINE | - | - 7.8L BRAZILIAN | - |
| FORD F-COWL | - | TRUCK | - | FORD 7.8L | - |
| FORD F-COWL | - | TRUCK | - | FORD 6.6L | - |
| HINO BIRD OF PREY FM3M SHRIKE | 1991 - 1996 | TRUCK | - | HINO M10C 9.9L | - |
| HINO FS1K RANGER 50 | - | TRUCK | - | HINO K13C-TF | - |
| HINO GD1J RANGER 7 | - | TRUCK | - | - GD1J RANGER 7 | - |
| HINO GH1J RANGER 10 | - | TRUCK | - | - GH1J RANGER 10 | - |
| HINO RANGER 14 FM1J | 1996 - 2002 | TRUCK | - | HINO 7.96L J08C | - |
| HINO RANGER 5Z FT1J | 1996 - 2002 | TRUCK | - | HINO 7.96L J08C | - |
| HINO RANGER 8 GT1J | 1996 - 2002 | TRUCK | - | HINO 7.7L J08C | - |
| HINO RANGER 9 FG1J | 1996 - 2002 | TRUCK | - | HINO 7.96L J08C | - |
| HINO RANGER FL236 | - | TRUCK | - | HINO P11C-UB | - |
| NEW HOLLAND CR960 | - | COMBINE | CR SERIES | IVECO F2BE0684A | - |
| NEW HOLLAND CR980 | - | COMBINE | CR SERIES | IVECO F3AE0684D | - |
| NEW HOLLAND CX720 | - | COMBINE | CX SERIES | NEW HOLLAND 675TA | - |
| NEW HOLLAND CX740 | - | COMBINE | CX SERIES | NEW HOLLAND 675TA | - |
| NEW HOLLAND CX760 | - | COMBINE | CX SERIES | NEW HOLLAND 675TA | - |
| NEW HOLLAND CX780 | - | COMBINE | CX SERIES | NEW HOLLAND 675TA | - |
| NEW HOLLAND CX820 | - | COMBINE | CX SERIES | NEW HOLLAND 675TA | - |
| NEW HOLLAND CX840 | - | COMBINE | CX SERIES | NEW HOLLAND 675TA | - |
| NEW HOLLAND CX860 | - | COMBINE | CX SERIES | IVECO CURSOR | - |
| NEW HOLLAND CX880 | - | COMBINE | CX SERIES | IVECO CURSOR | - |
| NEW HOLLAND FX28 | - | HARVESTER | FX SERIES | IVECO FX28 | - |
| NEW HOLLAND FX30 | - | HARVESTER | FX SERIES | IVECO CURSOR 10 | - |
| NEW HOLLAND FX38 | - | HARVESTER | FX SERIES | IVECO FX38 | - |
| NEW HOLLAND FX40 | - | HARVESTER | FX SERIES | IVECO CURSOR 13 | - |
| NEW HOLLAND FX48 | - | HARVESTER | FX SERIES | IVECO FX48 | - |
| NEW HOLLAND FX50 | - | HARVESTER | FX SERIES | IVECO CURSOR 13 | - |
| NEW HOLLAND FX60 | - | HARVESTER | FX SERIES | CATERPILLAR C15 | - |
| VOLVO FH12 | - | TRUCK | - | VOLVO D12A | - |
