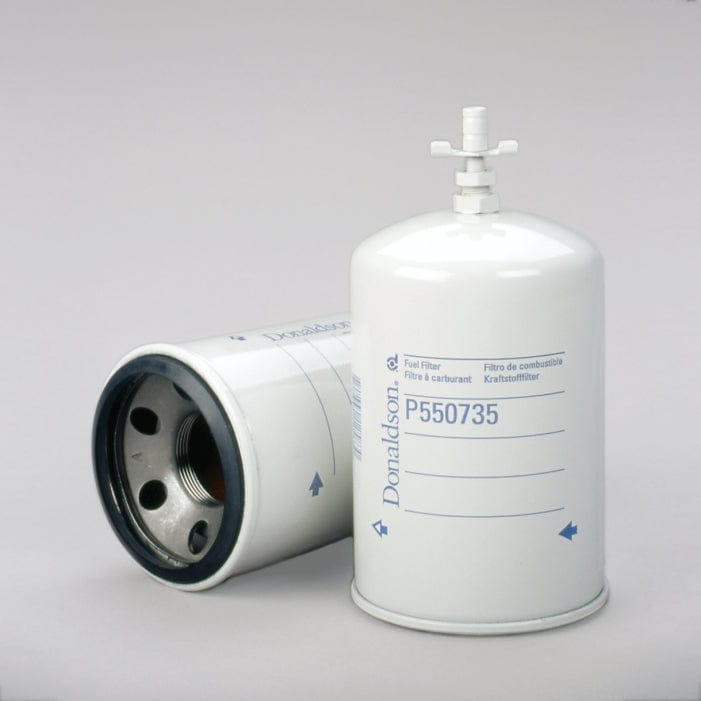

Fuel Filter, Water Separator Spin-On - Donaldson P550735
Fuel Filter, Water Separator Spin-On - Donaldson P550735
Regular price
£55.39
Regular price
Sale price
£55.39
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550735
Fuel Filter, Water Separator Spin-On| Outer Diameter | 3.78 inch (95.9 mm) |
| Thread Size | 1 1/2-16 UN |
| Length | 7.35 inch (186.7 mm) |
| Gasket OD | 3.46 inch (88 mm) |
| Gasket ID | 2.99 inch (76 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95 Percent |
| Collapse Burst | 400 psi (27.6 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Primary Application | CUMMINS NATURAL GAS ENGINES |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 95.9 mm (3.78 inch)
- Thread Size: 1 1/2-16 UN
- Length: 186.7 mm (7.35 inch)
Packaged Dimensions
- Packaged Length: 0.103 m (4.10 inch)
- Packaged Width: 0.098 m (3.90 inch)
- Packaged Height: 0.205 m (8.20 inch)
- Packaged Weight: 0.409 kg (0.90 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069095-02
- HTS Code: 8421230090
- UPC Code: 742330125830
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| BIG A | 95416 | |
| CUMMINS | 3606712 | |
| CUMMINS | 3607140 | |
| GILLIG | 8249024000 | |
| KRALINATOR | F296 | |
| PREVOST CAR | 19502588 | |
| VMC | NG550735 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| BLUEBIRD ALL AMERICAN | - | BUS | - | CUMMINS ISLG | - |
| BMC BELDE | - | BUS | - | CUMMINS CGE4 | - |
| BMC PROCITY | - | BUS | - | CUMMINS ISLG | - |
| CAPACITY OF TEXAS TJ9000 | - | TRUCK | - | CUMMINS ISLG | - |
| CRANE CARRIER COE2 | - | TRUCK | - | CUMMINS ISLG | - |
