• Donaldson Fuel Filter, Water Separator Spin-On - Donaldson P550729
1 1

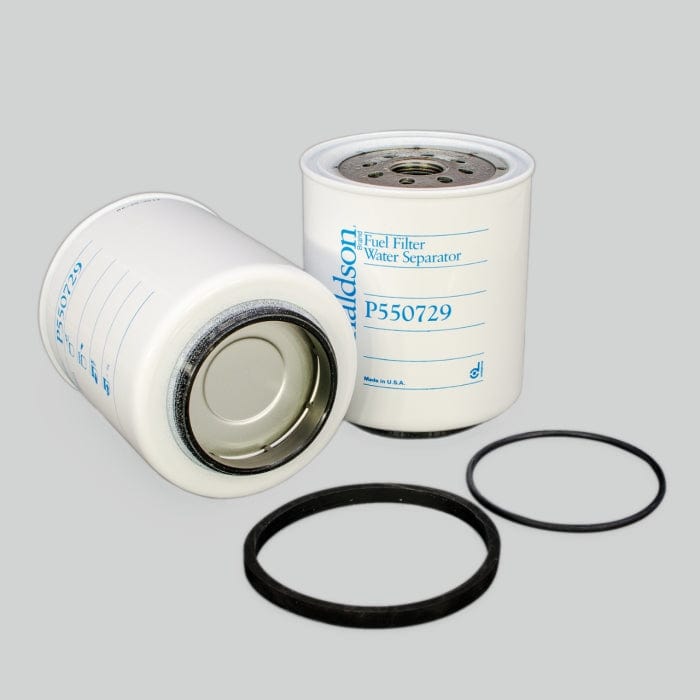

Fuel Filter, Water Separator Spin-On - Donaldson P550729

Fuel Filter, Water Separator Spin-On - Donaldson P550729

£38.75
£38.75
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550729

Fuel Filter, Water Separator Spin-On
Outer Diameter 4.36 inch (110.7 mm)
Thread Size 1-14 UN
Length 5.05 inch (128.3 mm)
Efficiency 50% 5 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 59 psi (4.1 bar)
Type Water Separator
Style Spin-On
Primary Application NAVISTAR 1677004C91
Notes Not for Marine Applications
View full details

Specifications

Attributes

  • Outer Diameter: 110.7 mm (4.36 inch)
  • Thread Size: 1-14 UN
  • Length: 128.3 mm (5.05 inch)
  • Efficiency 50%: 5 micron
  • Efficiency Test Std: SAE J1985
  • Emulsified H2O Efficiency: 95.00 Percent
  • Collapse Burst: 4.1 bar (59 psi)
  • Type: Water Separator
  • Style: Spin-On
  • Primary Application: NAVISTAR 1677004C91
  • Notes: Not for Marine Applications

Packaged Dimensions

  • Packaged Length: 0.130 m (5.20 inch)
  • Packaged Width: 0.109 m (4.35 inch)
  • Packaged Height: 0.133 m (5.30 inch)
  • Packaged Weight: 0.590 kg (1.30 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330043226

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO TP1280
BIG A 95232
DRESSER 1677004C91 OEM Bowl Thread Style
FORD 9576P550729
FREIGHTLINER DNP550729
FURUKAWA 1677004C91 OEM Bowl Thread Style
INTERNATIONAL 1618385C91 OEM Bowl Thread Style
INTERNATIONAL 1677004C91 OEM Bowl Thread Style
KRALINATOR FS246
VMC FS550729
