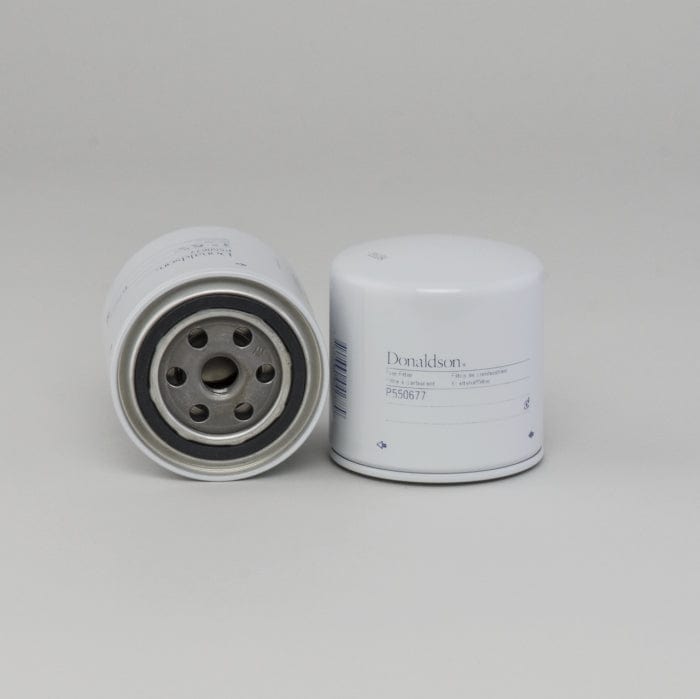

Fuel Filter, Water Separator Spin-On - Donaldson P550677

Fuel Filter, Water Separator Spin-On - Donaldson P550677

£15.17
£15.17
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550677

Fuel Filter, Water Separator Spin-On
Outer Diameter 3.69 inch (93.73 mm)
Thread Size 11/16-16 UN
Length 4.36 inch (110.74 mm)
Gasket OD 2.83 inch (71.88 mm)
Gasket ID 2.46 inch (62.48 mm)
Efficiency 50% 14 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 75 psi (5.2 bar)
Type Water Separator
Style Spin-On
View full details

Specifications

Attributes

  • Outer Diameter: 93.73 mm (3.69 inch)
  • Thread Size: 11/16-16 UN
  • Length: 110.74 mm (4.36 inch)

Packaged Dimensions

  • Packaged Length: 0.089 m (3.54 inch)
  • Packaged Width: 0.089 m (3.54 inch)
  • Packaged Height: 0.108 m (4.33 inch)
  • Packaged Weight: 0.431 kg (0.95 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330042779

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO TP1239
AMERICAN PARTS 95226
AMERICAN PARTS 95225
AMERICAN PARTS 3345
BIG A 95225
BIG A 95226
FACET MF55101
KRALINATOR GS129
MERCRUISER C3560494A
MERCRUISER 35805269
MERCRUISER 35802893T
MERCRUISER 35802893Q01
MERCRUISER 35802893Q
MERCRUISER 35604941
MERCRUISER 3560494
MERCRUISER 351604941
MERCRUISER 35807172
NELSON 85142N
SIERRA 187844
VMC FF550677
VOLVO 8556862
VOLVO 855686
