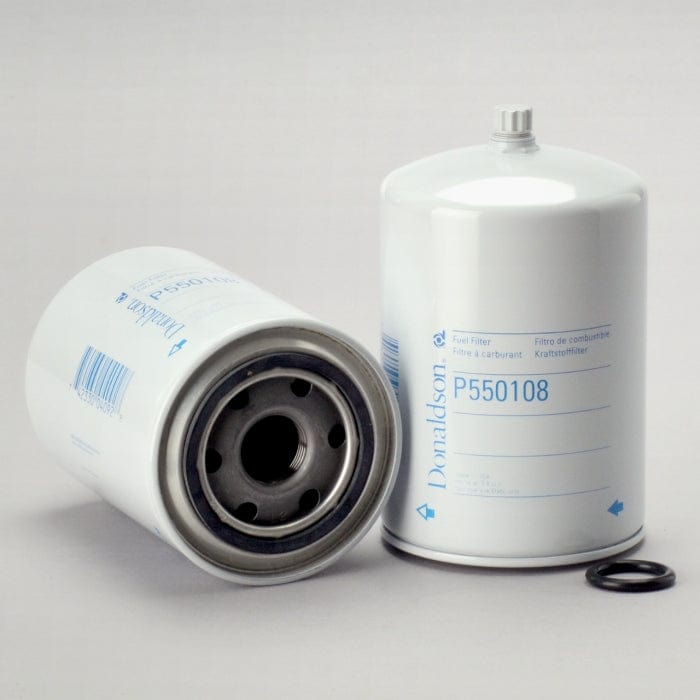

Fuel Filter, Water Separator Spin-On - Donaldson P550108
Fuel Filter, Water Separator Spin-On - Donaldson P550108
Regular price
£19.13
Regular price
Sale price
£19.13
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550108
Fuel Filter, Water Separator Spin-On| Outer Diameter | 3.69 inch (93.8 mm) |
| Thread Size | 1-14 UN |
| Length | 6.04 inch (153.4 mm) |
| Gasket OD | 2.73 inch (69.3 mm) |
| Gasket ID | 2.41 inch (61.3 mm) |
| Efficiency 50% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Collapse Burst | 59 psi (4.1 bar) |
| Type | Water Separator |
| Style | Spin-On |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93.8 mm (3.69 inch)
- Thread Size: 1-14 UN
- Length: 153.4 mm (6.04 inch)
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.177 m (7.09 inch)
- Packaged Weight: 0.518 kg (1.14 lb)
- Packaged Volume: 0.002 m3 (0.06 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-09
- HTS Code: 8421230090
- UPC Code: 742330040928
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP623 | |
| AMERICAN PARTS | 497 | |
| AMERICAN PARTS | 95244 | |
| BIG A | 95244 | |
| BIG A | 497 | |
| BOSCH-REXROTH | 1457434064 | |
| CATERPILLAR | 3I1890 | |
| COOP | FFJD16 | |
| COOPERS | Z38 | |
| COOPERS | FSM4047 | |
| CYCLONE | PM340 | |
| DELUXE | FF341 | |
| DELUXE | 341 | |
| DIEXA | DXTC15US | |
| FAMEL | FCS15 | |
| FORD | 9576P550108 | |
| GOULD | P340 | |
| GUD | Z38 | |
| JOHN DEERE | AR21627R | |
| JOHN DEERE | AR45097 | |
| JOHN DEERE | AR45098 | |
| JOHN DEERE | AR31267R | |
| JOHN DEERE | AR31627R | |
| JOHN DEERE | R34736R | |
| JOHN DEERE | R35736R | |
| JOHN DEERE | AR33926R | |
| JOHN DEERE | AR15097 | |
| JOHN DEERE | R32112R | |
| JOHN DEERE | R34736 | |
| KRALINATOR | F46 | |
| LOCKHEED | AP3412 | |
| LOCKHEED | LK3412 | |
| LOCKHEED | APF3412A | |
| P.B.R. | BG1500 | |
| PERRY | PF341 | |
| PHILLIPS 66 | P16 | |
| SAVARA | 92819317 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688260 | |
| VMC | FF550108 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| HITACHI EX450-5 | - | EXCAVATOR TRACKED | - | ISUZU 6RB1T | - |
| JOHN DEERE 3020 | - | TRACTOR | 3000 SERIES | JOHN DEERE 4270D | - |
| JOHN DEERE 4000 | - | TRACTOR | - | JOHN DEERE 6404D | - |
| JOHN DEERE 404 | - | POWER UNIT | - | - 404 | - |
| JOHN DEERE 500 | - | BACKHOE LOADER | - | JOHN DEERE - | - |
| JOHN DEERE 500A | - | BACKHOE LOADER | - | - 500A | - |
| JOHN DEERE 700 | - | TRACTOR | - | - 700 | - |
| JOHN DEERE 760 | - | SCRAPER | - | - 760 | - |
| JOHN DEERE 760 | - | TRACTOR | - | - 760 | - |
| JOHN DEERE 880 | - | WINDROWER | - | JOHN DEERE 135 GAS | - |
| JOHN DEERE X500 | - | LAWN EQUIPMENT | - | - X500 | - |
| KOMATSU PC450-6 | - | EXCAVATOR TRACKED | - | KOMATSU SA6D125E-2 | - |
