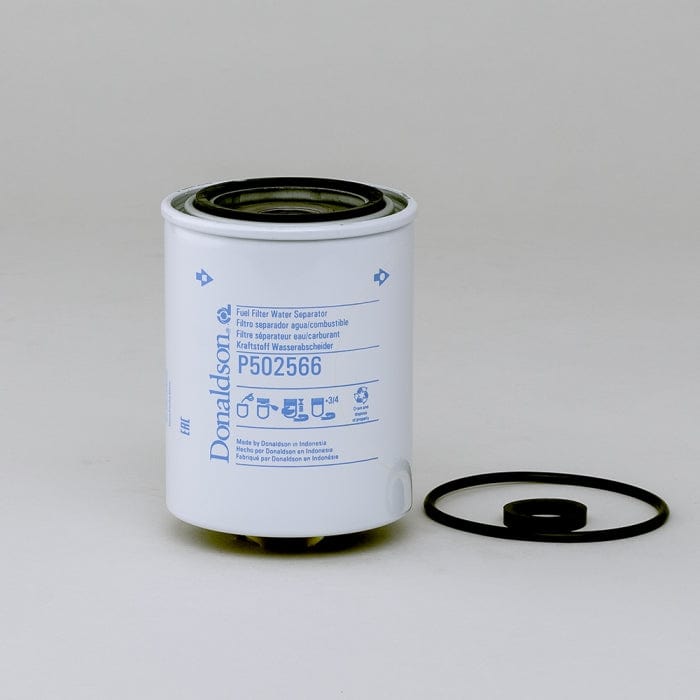

Fuel Filter, Water Separator Spin-On - Donaldson P502566
Fuel Filter, Water Separator Spin-On - Donaldson P502566
Regular price
£24.22
Regular price
Sale price
£24.22
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P502566
Fuel Filter, Water Separator Spin-On| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | M24 x 1.5 |
| Length | 4.65 inch (118 mm) |
| Gasket OD | 2.78 inch (70.7 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Bowl Thread | 1 1/4-10 UN |
| Efficiency Beta 75 | 12 micron |
| Efficiency Test Std | ISO 4548-12 |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: M24 x 1.5
- Length: 118 mm (4.65 inch)
- Gasket OD: 70.7 mm (2.78 inch)
- Gasket ID: 62 mm (2.44 inch)
- Bowl Thread: 1 1/4-10 UN
- Efficiency Beta 75: 12 micron
- Efficiency Test Std: ISO 4548-12
- Type: Water Separator
- Style: Spin-On
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.148 m (5.91 inch)
- Packaged Weight: 0.630 kg (1.39 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: Indonesia
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330977507
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CUMMINS | 4941237 | |
| DYNAPAC | 4700950301 | |
| DYNAPAC | 950301 | |
| KOMATSU | 6003194110 | |
| KOMATSU | 6003114110 | |
| KOMATSU | 6003114120 | |
| MECALAC | 537A0359 | |
| SCARAB SWEEPERS | 36195 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AMMANN AV95-2 | - | COMPACTOR | - | CUMMINS 4BT3.3 | - |
| DYNAPAC CC234HF | - | COMPACTOR | - | CUMMINS QSB3.3 | - |
| KOMATSU PC138US-10 | - | EXCAVATOR | - | KOMATSU SAA4D95LE | - |
| KOMATSU PC138US-11 | 2017 | EXCAVATOR TRACKED | - | KOMATSU SAA4D95LE-7 | - |
| KOMATSU PC138US-8 | - | EXCAVATOR TRACKED | - | KOMATSU SAA4D95LE-5A | - |
| KOMATSU PC88MR-8 | - | EXCAVATOR TRACKED | - | KOMATSU SAA4D95LE-5 | - |
| KOMATSU WA100M-6 | - | LOADER WHEELED | - | KOMATSU SAA4D95LE-5 3.3L | - |
