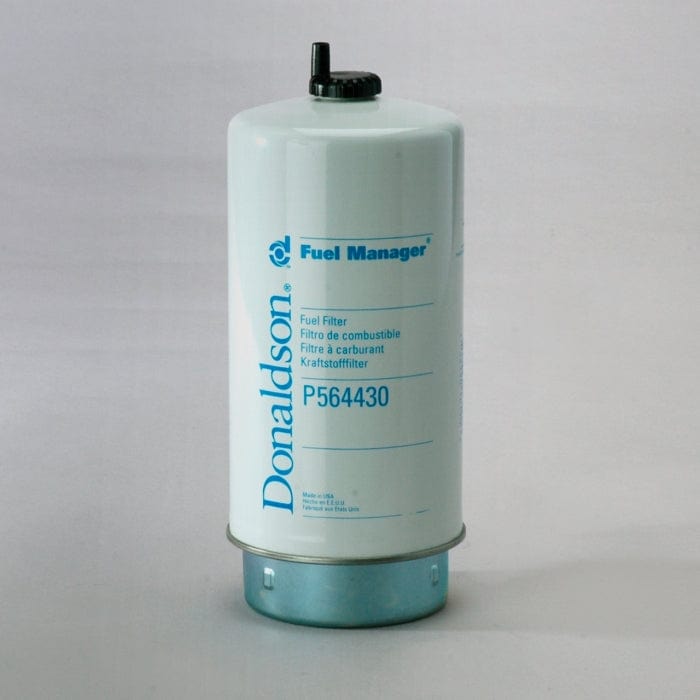

Fuel Filter, Water Separator Cartridge - Donaldson P564430

Fuel Filter, Water Separator Cartridge - Donaldson P564430

£48.71
£48.71
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P564430

Fuel Filter, Water Separator Cartridge
Outer Diameter 4.37 inch (111 mm)
Inner Diameter 3.74 inch (95 mm)
Length 9.25 inch (235 mm)
Efficiency 50% 30 micron
Efficiency Test Std SAE J1985
Emulsified H2O Efficiency 95.00 Percent
Type Water Separator
Style Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 111 mm (4.37 inch)
  • Inner Diameter: 95 mm (3.74 inch)
  • Length: 235 mm (9.25 inch)
  • Efficiency 50%: 30 micron
  • Efficiency Test Std: SAE J1985
  • Emulsified H2O Efficiency: 95.00 Percent
  • Type: Water Separator
  • Style: Cartridge

Packaged Dimensions

  • Packaged Length: 0.120 m (4.80 inch)
  • Packaged Width: 0.120 m (4.80 inch)
  • Packaged Height: 0.278 m (11.10 inch)
  • Packaged Weight: 0.863 kg (1.90 lb)
  • Packaged Volume: 0.004 m3 (0.15 ft3)

Other Information

  • Country of Origin: United States
  • NMFC Code: 069100-08
  • HTS Code: 8421230090
  • UPC Code: 742330161906

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DOOSAN 46492252
JCB 32007426
M.D.F. SARL MDF9137
