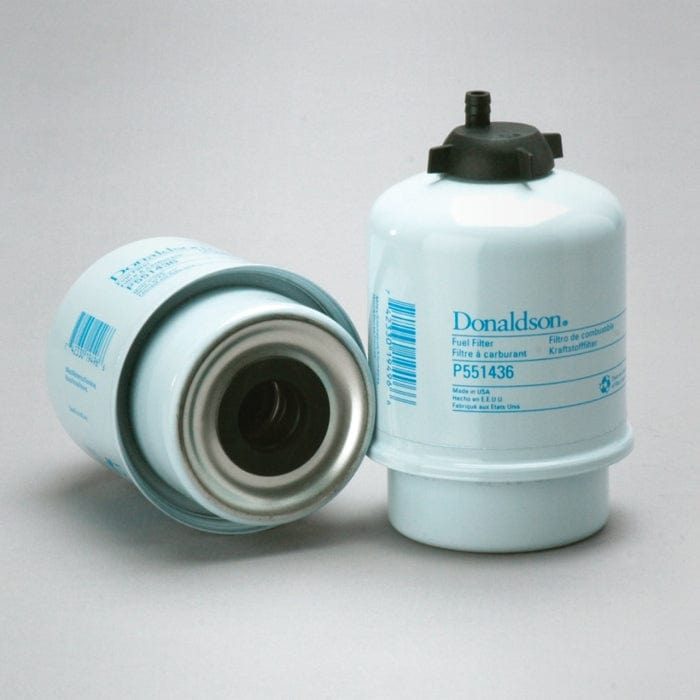

Fuel Filter, Water Separator Cartridge - Donaldson P551436
Fuel Filter, Water Separator Cartridge - Donaldson P551436
Regular price
£18.77
Regular price
Sale price
£18.77
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P551436
Fuel Filter, Water Separator Cartridge| Outer Diameter | 3.15 inch (80 mm) |
| Length | 5.33 inch (135.4 mm) |
| Efficiency 99% | 35 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Type | Water Separator |
| Style | Cartridge |
| Media Type | Cellulose, Silicone |
| Notes | Not for Marine Applications |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 80 mm (3.15 inch)
- Length: 135.4 mm (5.33 inch)
- Efficiency 99%: 35 micron
Packaged Dimensions
- Packaged Length: 0.28 FT
- Packaged Width: 0.28 FT
- Packaged Height: 0.45 FT
- Packaged Weight: 0.309 kg (0.68 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-05
- HTS Code: 8421230090
- UPC Code: 742330194966
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CATERPILLAR | 1512409 | |
| IMPERIAL | CV102721 | |
| KRALINATOR | FS253 | |
| ROOSAMASTER | 33962 | |
| ROOSAMASTER | 33748 | |
| VMC | FS550570 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CATERPILLAR 3013 | - | ENGINE | - | - 3013 | - |
| CATERPILLAR 3014 | - | ENGINE | - | - 3014 | - |
| CATERPILLAR 525B | - | SKIDDER | - | CATERPILLAR 3126 | - |
| CATERPILLAR 533 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 535B | - | SKIDDER | - | CATERPILLAR 3126 | - |
| CATERPILLAR 539 | - | FORESTRY EQUIPMENT | - | - 539 | - |
| CATERPILLAR 543 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 550 | - | FORESTRY EQUIPMENT | - | CATERPILLAR C7TA ACERT | - |
| CATERPILLAR 570 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 574 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126TA MUI | - |
| CATERPILLAR 580 | - | FORESTRY EQUIPMENT | - | CATERPILLAR 3126 | - |
| CATERPILLAR 908 | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR 924F | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3114T | - |
| CATERPILLAR 924G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3056T | - |
| CATERPILLAR 924GZ | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3056E DIT ATAAC | - |
| CATERPILLAR 928G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR 930G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3056T | - |
| CATERPILLAR 938G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 950G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR 962G | - | LOADER WHEELED | 900 SERIES | CATERPILLAR 3126TA | - |
| CATERPILLAR AP1000B | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1000D | - | PAVER | AP SERIES | CATERPILLAR C7.1 | - |
| CATERPILLAR AP1050B | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1055B | - | PAVER | AP SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR AP1055D | - | PAVER | AP SERIES | CATERPILLAR C7.1 | - |
| CATERPILLAR AP650B | - | PAVER | AP SERIES | CATERPILLAR 3054TA | - |
| CATERPILLAR AP655C | - | PAVER | AP SERIES | CATERPILLAR 3056E ATAAC | - |
| CATERPILLAR AP900B | - | PAVER | AP SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR BG2255C | - | PAVER | BG SERIES | CATERPILLAR 3056 | - |
| CATERPILLAR BG225C | - | PAVER | BG SERIES | CATERPILLAR 3054C | - |
| CATERPILLAR BG240C | - | PAVER | BG SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR BG2455C | - | PAVER | BG SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR BG2455D | - | PAVER | BG SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR BG245C | - | PAVER | BG SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR BG260C | - | PAVER | BG SERIES | CATERPILLAR 3116TA | - |
| CATERPILLAR BG260D | - | PAVER | BG SERIES | CATERPILLAR C7 ACERT | - |
| CATERPILLAR CB334D | - | COMPACTOR | CB SERIES | CATERPILLAR 3014 | - |
| CATERPILLAR CB335D | - | COMPACTOR | CB SERIES | CATERPILLAR 3013 | - |
| CATERPILLAR CHALLENGER 35 | - | TRACTOR | - | CATERPILLAR 3116 | - |
| CATERPILLAR CP533D | - | COMPACTOR | CP SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CP563D | - | COMPACTOR | CP SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR CS531D | - | COMPACTOR | CS SERIES | CATERPILLAR 3116 | - |
| CATERPILLAR CS533D | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CS563D | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CS573D | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR CS583D | - | COMPACTOR | CS SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR IT24F | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3114 DIT | - |
| CATERPILLAR IT38G | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126 DITA | - |
| CATERPILLAR IT62G | - | INTEGRATED TOOL CARRIER | IT SERIES | CATERPILLAR 3126 DITA | - |
| CATERPILLAR M318 | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR M320 | - | EXCAVATOR WHEELED | M SERIES | CATERPILLAR 3116T | - |
| CATERPILLAR TH103 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH350B | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054E | - |
| CATERPILLAR TH360B | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054E | - |
| CATERPILLAR TH460B | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054E | - |
| CATERPILLAR TH62 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH63 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH82 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
| CATERPILLAR TH83 | - | TELEHANDLER | TH SERIES | CATERPILLAR 3054T | - |
