• Donaldson Fuel Filter, Water Separator Cartridge - Donaldson P551052
1 1

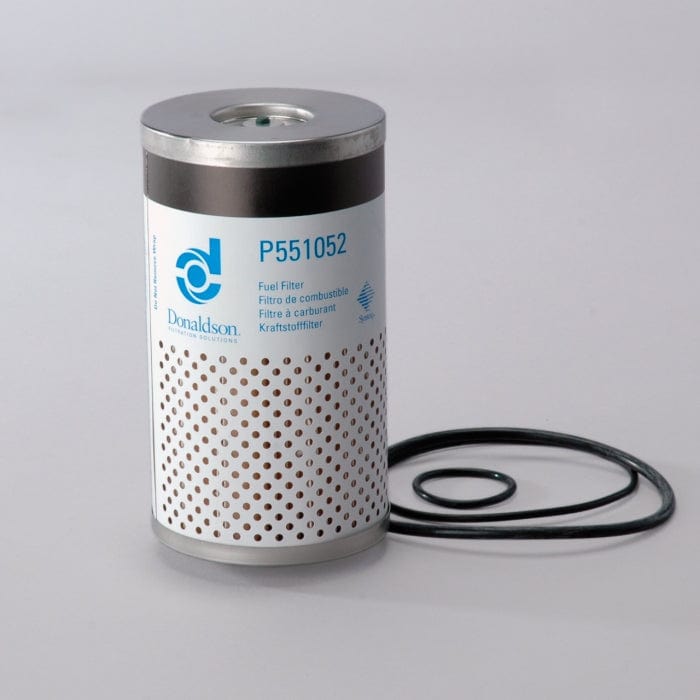

Fuel Filter, Water Separator Cartridge - Donaldson P551052

Fuel Filter, Water Separator Cartridge - Donaldson P551052

£14.19
£14.19
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P551052

Fuel Filter, Water Separator Cartridge
Outer Diameter 3.82 inch (97 mm)
Inner Diameter 0.66 inch (16.8 mm)
Length 6.76 inch (171.7 mm)
Overall Length 7.03 inch (178.6 mm)
Efficiency 99% 10 micron
Efficiency Test Std SAE J1488, J1985
Emulsified H2O Efficiency 95.00 Percent
Collapse Burst 100 psi (6.9 bar)
Type Water Separator
Style Cartridge
Media Type Meltblown
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Inner Diameter: 16.8 mm (0.66 inch)
  • Length: 171.7 mm (6.76 inch)
  • Overall Length: 178.6 mm (7.03 inch)
  • Efficiency 99%: 10 micron
  • Efficiency Test Std: SAE J1488
  • J1985:
  • Emulsified H2O Efficiency: 95.00 Percent
  • Collapse Burst: 6.9 bar (100 psi)
  • Type: Water Separator
  • Style: Cartridge
  • Media Type: Meltblown

Packaged Dimensions

  • Packaged Length: 0.103 m (4.10 inch)
  • Packaged Width: 0.099 m (3.95 inch)
  • Packaged Height: 0.179 m (7.15 inch)
  • Packaged Weight: 0.288 kg (0.64 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330971093

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
CASE/CASE IH 84283691
MAN 2Z0201512B
NEW HOLLAND 84283691
VOLKSWAGEN 2T2201847
