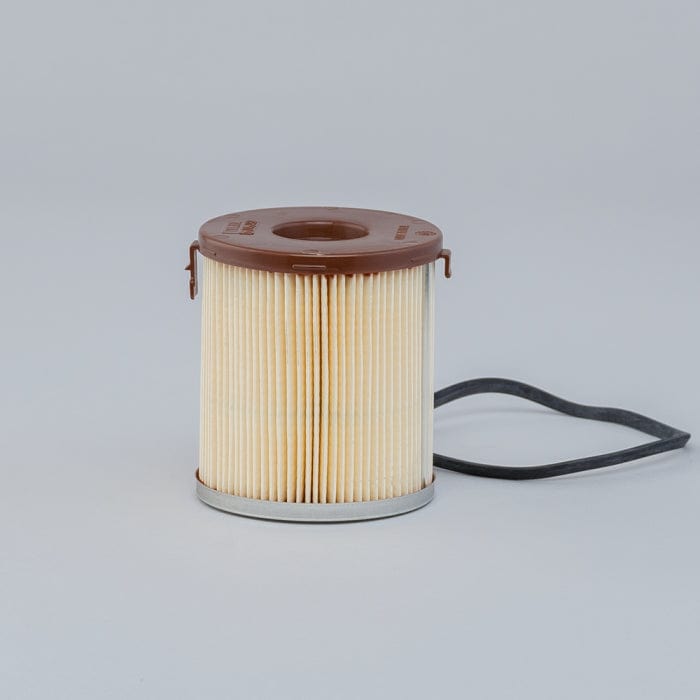

Fuel Filter, Water Separator Cartridge - Donaldson P550966
Fuel Filter, Water Separator Cartridge - Donaldson P550966
Regular price
£25.99
Regular price
Sale price
£25.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550966
Fuel Filter, Water Separator Cartridge| Outer Diameter | 3.56 inch (90.42 mm) |
| Inner Diameter | 0.66 inch (16.76 mm) |
| Length | 3.99 inch (101.35 mm) |
| Efficiency 50% | 7 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Type | Water Separator |
| Style | Cartridge |
| Media Type | Cellulose |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 90.42 mm (3.56 inch)
- Inner Diameter: 16.76 mm (0.66 inch)
- Length: 101.35 mm (3.99 inch)
- Efficiency 50%: 7 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95.00 Percent
- Type: Water Separator
- Style: Cartridge
- Media Type: Cellulose
Packaged Dimensions
- Packaged Length: 0.104 m (4.15 inch)
- Packaged Width: 0.101 m (4.05 inch)
- Packaged Height: 0.109 m (4.35 inch)
- Packaged Weight: 0.179 kg (0.40 lb)
- Packaged Volume: 0.001 m3 (0.04 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-06
- HTS Code: 8421230090
- UPC Code: 742330043530
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP1297 | |
| ATLAS | GF7715 | |
| BIG A | 95517 | |
| CASE/CASE IH | 1822631C91 | |
| CASE/CASE IH | F4TZ9N184A | |
| CATERPILLAR | 3I2103 | |
| CENEX | L3580F | |
| DEUSCH | FF4031 | |
| DEUSCH | FF785 | |
| DRESSER | 1822631C91 | |
| EVERGARD | F55055 | |
| FIAT | F4TZ9N184A | |
| FORD | 9576P550966 | |
| FORD | F4TZ9N184A | |
| FORD | F4TZ9N184B | |
| FURUKAWA | 1822631C91 | |
| GRANT | L3580F | |
| INTERNATIONAL | 1822631C91 | |
| KRALINATOR | FS749 | |
| NEW HOLLAND | F4TZ9N184A | |
| SERVICE CHAMP | 54070 | |
| VMC | FS550966 | |
| WARNER & SWASEY | L3580F |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| FORD E-SERIES VAN | 1997 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD E-SERIES VAN | 1995 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD E-SERIES VAN | 1996 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD E-SERIES VAN | 1998 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1998 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1998 | LIGHT TRUCK | - | FORD 5.8L V8 | - |
| FORD F-SERIES PICKUP | 1997 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1997 | LIGHT TRUCK | - | FORD 5.8L V8 | - |
| FORD F-SERIES PICKUP | 1996 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1994 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
| FORD F-SERIES PICKUP | 1995 | LIGHT TRUCK | - | INTERNATIONAL 7.3L V8 | - |
