• Donaldson Fuel Filter, Water Separator Cartridge - Donaldson P550737
1 1

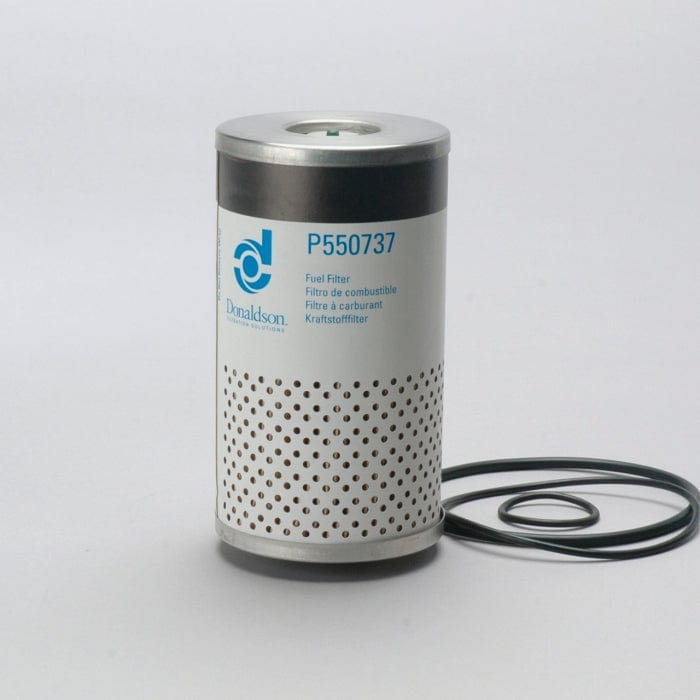

Fuel Filter, Water Separator Cartridge - Donaldson P550737

Fuel Filter, Water Separator Cartridge - Donaldson P550737

£24.27
£24.27
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550737

Fuel Filter, Water Separator Cartridge
Outer Diameter 3.82 inch (97 mm)
Inner Diameter 0.66 inch (16.8 mm)
Length 6.76 inch (171.7 mm)
Overall Length 7.03 inch (178.6 mm)
Efficiency 99% 40 micron
Efficiency Test Std SAE J1488, J1985
Emulsified H2O Efficiency 95 Percent
Collapse Burst 80 psi (5.5 bar)
Type Water Separator
Style Cartridge
Media Type Cellulose, Silicone
View full details

Specifications

Attributes

  • Outer Diameter: 97 mm (3.82 inch)
  • Inner Diameter: 16.8 mm (0.66 inch)
  • Length: 171.7 mm (6.76 inch)
  • Overall Length: 178.6 mm (7.03 inch)
  • Efficiency 99%: 40 micron
  • Efficiency Test Std: SAE J1488
  • J1985:
  • Emulsified H2O Efficiency: 95 Percent
  • Collapse Burst: 5.5 bar (80 psi)
  • Type: Water Separator
  • Style: Cartridge
  • Media Type: Cellulose
  • Silicone:

Packaged Dimensions

  • Packaged Length: 0.101 m (4.05 inch)
  • Packaged Width: 0.100 m (4.00 inch)
  • Packaged Height: 0.185 m (7.40 inch)
  • Packaged Weight: 0.293 kg (0.65 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330143322

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO PF2039
DAVCO 382116
DAVCO 382115
INTERNATIONAL 2586814C1
MACK 2191P550737
ORENSTEIN & KOPPEL 103865
TEREX 103865
VMC FS550737
VOLVO 85114063

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CUMMINS ISX15 - ENGINE TIER 4 - ISX15 -
INTERNATIONAL 9200I - TRUCK - CATERPILLAR C11 -
INTERNATIONAL 9200I - TRUCK - CATERPILLAR C15 -
INTERNATIONAL 9200I - TRUCK - CATERPILLAR C12 -
INTERNATIONAL 9200I - TRUCK - CATERPILLAR C13 -
