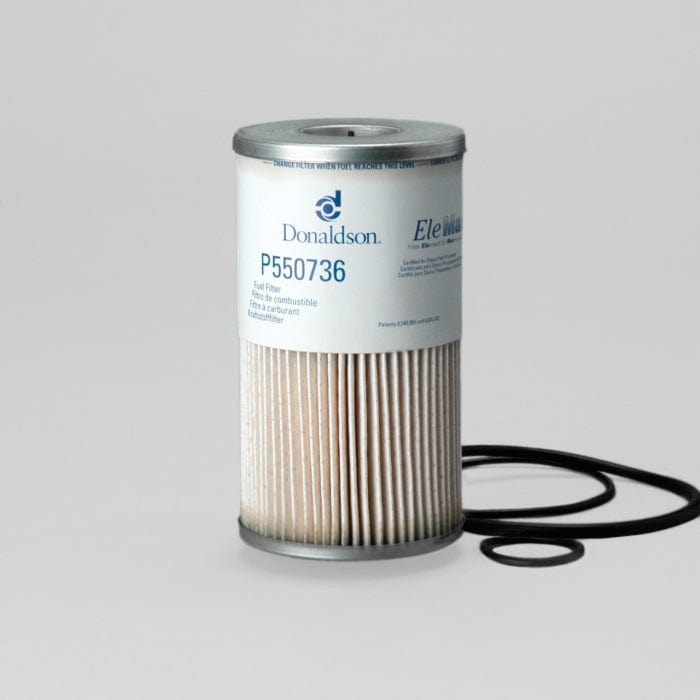

Fuel Filter, Water Separator Cartridge - Donaldson P550736
Fuel Filter, Water Separator Cartridge - Donaldson P550736
Regular price
£19.56
Regular price
Sale price
£19.56
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550736
Fuel Filter, Water Separator Cartridge| Outer Diameter | 3.82 inch (97 mm) |
| Inner Diameter | 0.66 inch (16.8 mm) |
| Length | 6.76 inch (171.7 mm) |
| Overall Length | 7.03 inch (178.6 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1488, J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Collapse Burst | 80 psi (5.5 bar) |
| Type | Water Separator |
| Style | Cartridge |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 97 mm (3.82 inch)
- Inner Diameter: 16.8 mm (0.66 inch)
- Length: 171.7 mm (6.76 inch)
- Overall Length: 178.6 mm (7.03 inch)
- Efficiency 99%: 25 micron
- Efficiency Test Std: SAE J1488
- J1985:
- Emulsified H2O Efficiency: 95.00 Percent
- Collapse Burst: 5.5 bar (80 psi)
- Type: Water Separator
- Style: Cartridge
Packaged Dimensions
- Packaged Length: 0.096 m (3.85 inch)
- Packaged Width: 0.104 m (4.15 inch)
- Packaged Height: 0.179 m (7.15 inch)
- Packaged Weight: 0.293 kg (0.65 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-04
- HTS Code: 8421230090
- UPC Code: 742330143339
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| CASE/CASE IH | 84273566 | |
| DAVCO | 382119 | |
| MERCEDES-BENZ | VABPN10G369FS | |
| VMC | FS550736 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| CUMMINS ISX15 | - | ENGINE | TIER 4 | - ISX15 | - |
| KENWORTH T680 | - | TRUCK | - | PACCAR MX13 | - |
| VOLVO CONSTRUCTION EQUIPMENT L150G | - | LOADER WHEELED | L SERIES | VOLVO D13H-E | TIER 4 |
| VOLVO VHD | - | TRUCK | VHD SERIES | VOLVO VED13 | - |
| VOLVO VN 430 | - | TRUCK | VN SERIES | VOLVO VED12 | - |
| VOLVO VN 630 | - | TRUCK | VN SERIES | CUMMINS ISX | - |
| VOLVO VNL 300 | - | TRUCK | VNL SERIES | CUMMINS ISX | - |
| VOLVO VNL 300 | - | TRUCK | VNL SERIES | VOLVO VED12 | - |
