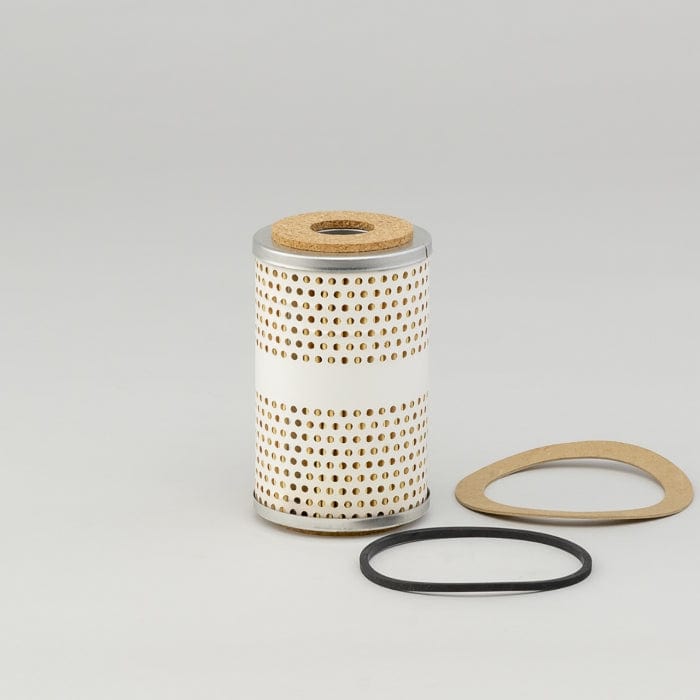

Fuel Filter, Water Separator Cartridge - Donaldson P550686
Fuel Filter, Water Separator Cartridge - Donaldson P550686
Regular price
£19.99
Regular price
Sale price
£19.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550686
Fuel Filter, Water Separator Cartridge| Outer Diameter | 3.01 inch (76.5 mm) |
| Inner Diameter | 1.04 inch (26.4 mm) |
| Length | 4.41 inch (112 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Water Separator |
| Style | Cartridge |
| Primary Application | FRAM CS1133PL |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 76.5 mm (3.01 inch)
- Inner Diameter: 26.4 mm (1.04 inch)
- Length: 112 mm (4.41 inch)
- Efficiency 99%: 25 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95.00 Percent
- Collapse Burst: 5.2 bar (75 psi)
- Type: Water Separator
- Style: Cartridge
- Primary Application: FRAM CS1133PL
Packaged Dimensions
- Packaged Length: 0.108 m (4.33 inch)
- Packaged Width: 0.108 m (4.33 inch)
- Packaged Height: 0.177 m (7.09 inch)
- Packaged Weight: 0.166 kg (0.37 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 069100-04
- HTS Code: 8421230090
- UPC Code: 742330042861
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP848 | |
| ALLIS-CHALMERS | 4055345 | |
| ALLIS-CHALMERS | 40553451 | |
| ALLIS-CHALMERS | 74055345 | |
| AMERICAN PARTS | 499 | |
| AMERICAN PARTS | 95134 | |
| BIG A | 95134 | |
| BIG A | 499 | |
| CONTINENTAL | PC1133S | |
| CUMMINS | 136197 | |
| CUMMINS | 136198 | |
| CUMMINS | 136201 | |
| CUMMINS | 301825 | |
| CUMMINS | 3001825 | |
| DIEXA | DXC1501 | |
| FIAT | 74387043 | |
| FIAT | 74055345 | |
| HITACHI | 74055345 | |
| INDUCONTROL | CPL1133SC | |
| MACK | 483GB234 | |
| NELSON WINSLOW | WCS1133PL | |
| VMC | FS550686 | |
| WINSLOW | WFCS1133PL | |
| WINSLOW | WCS1133PL |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 6000 | - | ENGINE | - | - 6000 | - |
| ALLIS-CHALMERS 7000 | - | ENGINE | - | - 7000 | - |
