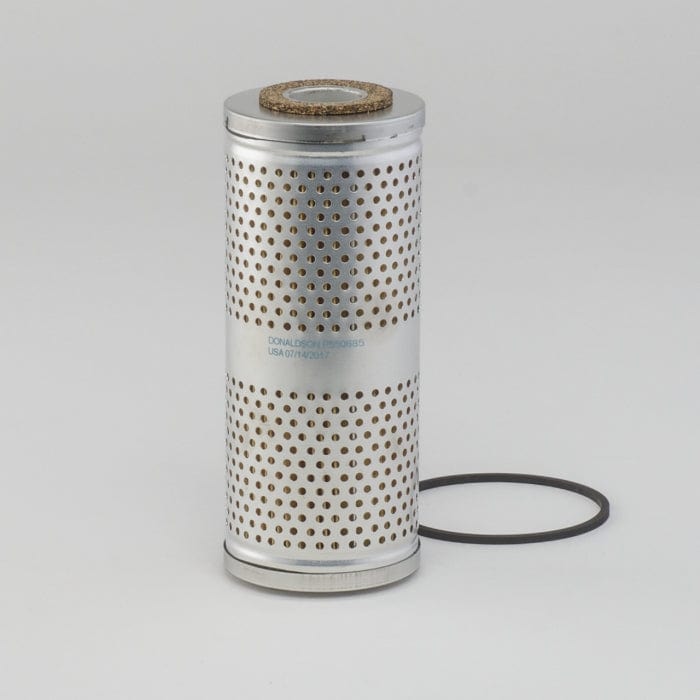

Fuel Filter, Water Separator Cartridge - Donaldson P550685
Fuel Filter, Water Separator Cartridge - Donaldson P550685
Regular price
£21.13
Regular price
Sale price
£21.13
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P550685
Fuel Filter, Water Separator Cartridge| Outer Diameter | 3.01 inch (76.45 mm) |
| Inner Diameter | 1.04 inch (26.42 mm) |
| Length | 7.34 inch (186.44 mm) |
| Efficiency 99% | 25 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Collapse Burst | 75 psi (5.2 bar) |
| Type | Water Separator |
| Style | Cartridge |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 76.45 mm (3.01 inch)
- Inner Diameter: 26.42 mm (1.04 inch)
- Length: 186.44 mm (7.34 inch)
- Efficiency 99%: 25 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95.00 Percent
- Collapse Burst: 5.2 bar (75 psi)
- Type: Water Separator
- Style: Cartridge
Packaged Dimensions
- Packaged Length: 0.079 m (3.15 inch)
- Packaged Width: 0.079 m (3.15 inch)
- Packaged Height: 0.197 m (7.87 inch)
- Packaged Weight: 0.329 kg (0.73 lb)
- Packaged Volume: 0.001 m3 (0.05 ft3)
Other Information
- Country of Origin: United States
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330042854
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP847 | |
| ALLIS-CHALMERS | 45071434 | |
| ALLIS-CHALMERS | 4057143 | |
| ALLIS-CHALMERS | 74507143 | |
| AMERICAN PARTS | 567 | |
| AMERICAN PARTS | 95133 | |
| BIG A | 95133 | |
| CONTINENTAL | PC1133C | |
| CUMMINS | 136198 | |
| DIEXA | DXC1503 | |
| FIAT | 74057143 | |
| FIAT | 4507143 | |
| FIAT | 74507143 | |
| HITACHI | 74507143 | |
| INDUCONTROL | CPL1133CC | |
| MACK | 483GB233 | |
| NELSON WINSLOW | WCC1133PL | |
| SAVARA | 92099817 | |
| SAVARA | 92099717 | |
| VMC | FS550685 | |
| WINSLOW | WCC1133PL | |
| WINSLOW | WFXCC1133PL |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| ALLIS-CHALMERS 6000 | - | ENGINE | - | - 6000 | - |
| ALLIS-CHALMERS AD30 | - | GRADER | - | - AD30 | - |
| ALLIS-CHALMERS AD40 | - | GRADER | - | DETROIT DIESEL - | - |
