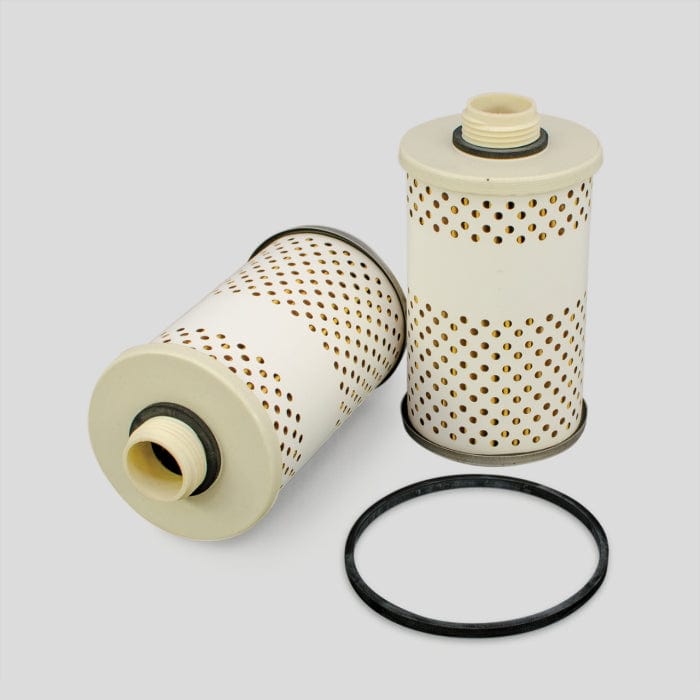

Fuel Filter, Water Separator Cartridge - Donaldson P550674

Fuel Filter, Water Separator Cartridge - Donaldson P550674

£9.03
£9.03
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550674

Fuel Filter, Water Separator Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 75.2 mm (2.96 inch)
  • Inner Diameter: 21.8 mm (0.86 inch)
  • Thread Size: 1 1/8-12 UN
  • Length: 132.8 mm (5.23 inch)
  • Efficiency 95%: 20 micron
  • Efficiency Test Std: SAE J1985
  • Emulsified H2O Efficiency: 95 Percent
  • Collapse Burst: 5.2 bar (75 psi)
  • Type: Water Separator
  • Style: Cartridge

Packaged Dimensions

  • Packaged Length: 0.079 m (3.15 inch)
  • Packaged Width: 0.079 m (3.15 inch)
  • Packaged Height: 0.138 m (5.51 inch)
  • Packaged Weight: 0.118 kg (0.26 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-03
  • HTS Code: 8421230090
  • UPC Code: 742330042755

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO TP631
AC DELCO TP1046
AC DELCO FF25
AMERICAN PARTS 96390
AMERICAN PARTS 517
AMERICAN PARTS 486
BIG A 96043
CATERPILLAR 3I2017
CHAMP 25F
COOP FF47015
CYCLONE FF100
DELUXE 91
DELUXE WD91
DRESSER 367389R91
DRESSER 367398R91
FURUKAWA 367389R91
FURUKAWA 367398R91
GOLDENROD 4705
JOHN DEERE TY15192
JOHN DEERE TY15193B
JOHN DEERE TY15193
JOHN DEERE TY15674
JOHN DEERE AT10213
KRALINATOR F747
TFMC L01727
VMC FF550674

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
MACK PINNACLE 2007 - 2018 TRUCK - MACK MP8 -
