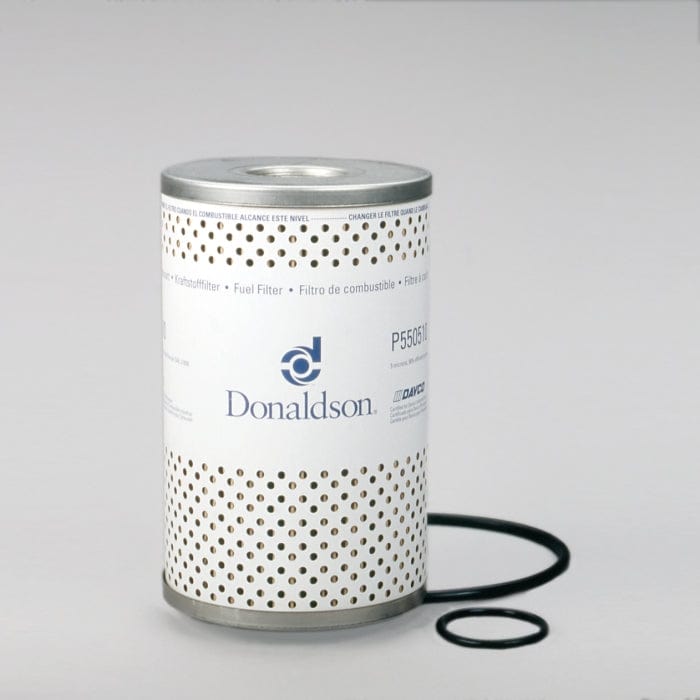

Fuel Filter, Water Separator Cartridge - Donaldson P550510

Fuel Filter, Water Separator Cartridge - Donaldson P550510

£17.01
£17.01
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550510

Fuel Filter, Water Separator Cartridge
View full details

Specifications

Attributes

  • Outer Diameter: 107 mm (4.21 inch)
  • Inner Diameter: 16.8 mm (0.66 inch)
  • Length: 171 mm (6.73 inch)
  • Gasket OD: 69 mm (2.72 inch)
  • Gasket ID: 62 mm (2.44 inch)
  • Overall Length: 177.8 mm (7.00 inch)
  • Efficiency 99%: 12 micron
  • Efficiency Test Std: SAE J1488
  • J1839:
  • J905:
  • Emulsified H2O Efficiency: 95 Percent
  • Type: Water Separator
  • Style: Cartridge
  • Media Type: Cellulose
  • Silicone:
  • Primary Application: DAVCO 102011

Packaged Dimensions

  • Packaged Length: 0.108 m (4.33 inch)
  • Packaged Width: 0.108 m (4.33 inch)
  • Packaged Height: 0.167 m (6.69 inch)
  • Packaged Weight: 0.388 kg (0.86 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-06
  • HTS Code: 8421230090
  • UPC Code: 742330116807

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
DAVCO 102011
DAVCO 102012
GILLIG 8250437000
TEREX 15503185
