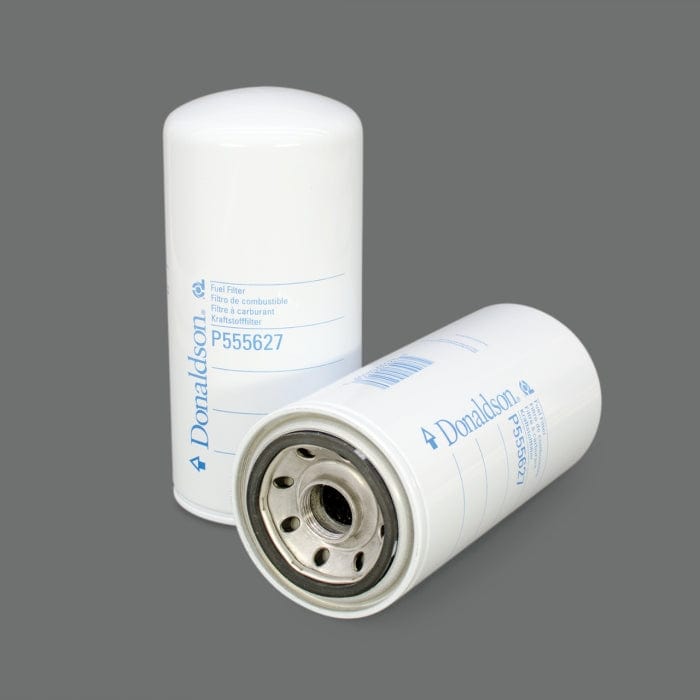

Fuel Filter, Spin-On Secondary - Donaldson P555627
Fuel Filter, Spin-On Secondary - Donaldson P555627
Regular price
£10.87
Regular price
Sale price
£10.87
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P555627
Fuel Filter, Spin-On Secondary| Outer Diameter | 3.66 inch (93 mm) |
| Thread Size | 1-14 UN |
| Length | 7.87 inch (200 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 9 micron |
| Efficiency Test Std | SAE J1985 |
| Emulsified H2O Efficiency | 95.00 Percent |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Water Separator |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CASE/CASE IH 625627C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 93 mm (3.66 inch)
- Thread Size: 1-14 UN
- Length: 200 mm (7.87 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 9 micron
- Efficiency Test Std: SAE J1985
- Emulsified H2O Efficiency: 95.00 Percent
- Collapse Burst: 6.9 bar (100 psi)
- Type: Water Separator
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CASE/CASE IH 625627C1
Packaged Dimensions
- Packaged Length: 0.099 m (3.94 inch)
- Packaged Width: 0.099 m (3.94 inch)
- Packaged Height: 0.197 m (7.87 inch)
- Packaged Weight: 0.586 kg (1.29 lb)
- Packaged Volume: 0.002 m3 (0.07 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 121510
- HTS Code: 8421230090
- UPC Code: 742330045060
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP811 | |
| AC DELCO | TP972 | |
| AG CHEM EQUIPMENT | 625627C1 | |
| ALLIS-CHALMERS | 40394407 | |
| AMERICAN PARTS | 561 | |
| AMERICAN PARTS | 524 | |
| AMERICAN PARTS | 95341 | |
| BERGERAT MONNOYEUR | E6765 | |
| BIG A | 95341 | |
| BIG A | 95341MP | |
| BIG A | 561 | |
| BIG A | 524 | |
| CARRIER TRANSICOLD | 20115704 | |
| CARRIER TRANSICOLD | 20113854 | |
| CASE/CASE IH | A184773 | |
| CASE/CASE IH | 625627C1 | |
| CASE/CASE IH | 625267C1 | |
| CASE/CASE IH | 702251C1 | |
| CASE/CASE IH | A194883 | |
| CATERPILLAR | 9Y4429 | |
| CATERPILLAR | 3I1331 | |
| CHAMP | FP251F | |
| CHARDONNET | 7255562700 | |
| COOP | FF1118 | |
| COOPERS | FSM4009 | |
| CYCLONE | PM471 | |
| DELUXE | 352 | |
| DELUXE | WD352 | |
| DRESSER | 702251C1 | |
| DRESSER | 625627C1 | |
| DRESSER | 703420C91 | |
| FORD | 9576P555627 | |
| FREIGHTLINER | DNP55562 | |
| FREIGHTLINER | DNP555627 | |
| FURUKAWA | 703420C91 | |
| GALION | 99501 | |
| GALION | 625627C1 | |
| GOULD | P471 | |
| HITACHI | 74394407 | |
| INTERNATIONAL | 625627C1 | |
| INTERNATIONAL | 625627C91 | |
| INTERNATIONAL | 2655627C1 | |
| INTERNATIONAL | 675627C1 | |
| INTERNATIONAL | 702251C1 | |
| INTERNATIONAL | 702251 | |
| INTERNATIONAL | 703420C91 | |
| JOHN DEERE | A184773 | |
| KOMATSU | 625627C1 | |
| KOMATSU | 3816256271 | |
| KOMATSU | 702251C1 | |
| KORODY COLYER | H625627 | |
| KRALINATOR | F170 | |
| LAND ROVER | 36015020 | |
| LAND ROVER | BBU5556 | |
| LANDA | 36015020 | |
| LEYLAND-DAF (LDV) | BBU5556 | |
| LOCKHEED | APF3239A | |
| LOCKHEED | LK3239 | |
| LOCKHEED | AP3239 | |
| ORENSTEIN & KOPPEL | 1450600 | |
| P.B.R. | BG1509 | |
| PAYHAULER | 625627C1 | |
| PERKINS | 26562001 | |
| PERRY | PF352 | |
| PRO MATCH | 9Y4429 | |
| STEWART & STEVENSON | 158814 | |
| TECHNOCAR | RN7001 | |
| TEXACO | HDF14 | |
| THERMO KING | 125704A | |
| THERMO KING | 125704 | |
| THERMO KING | 1389689 | |
| THERMO KING | 1389719 | |
| THERMO KING | 713990 | |
| TRUCK CARE | 7206120 | |
| UNIPART | BBU5556 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688928 | |
| UNIVERSAL COACH PARTS | T121091 | |
| VMC | FF555627 | |
| VOLVO | 3131417 | |
| WALGAHN-MOTORENTECHN | 00811439 | |
| WALGAHN-MOTORENTECHN | 811439 | |
| WHITE | 27009245 | |
| WHITE | 70010005 | |
| WHITE | 303483568 | |
| WHITE | 400002512 |
