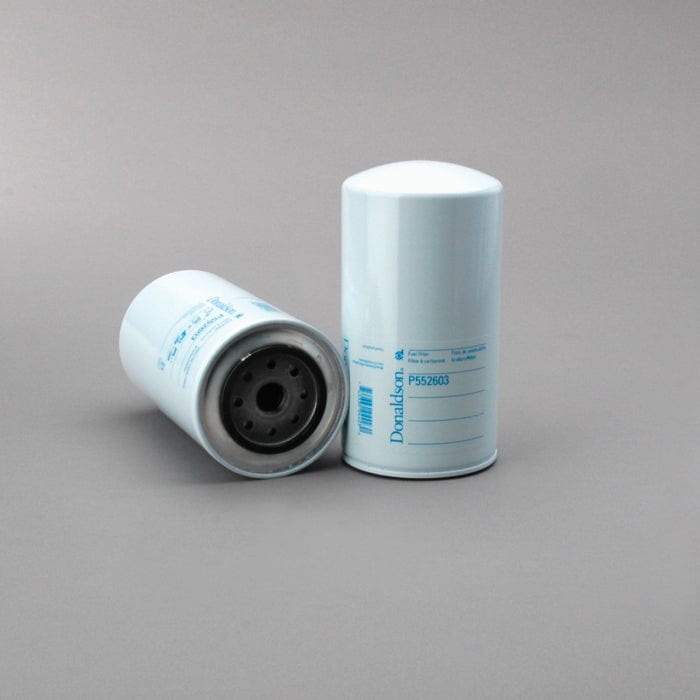

Fuel Filter, Spin-On Secondary - Donaldson P552603
Fuel Filter, Spin-On Secondary - Donaldson P552603
Regular price
£17.99
Regular price
Sale price
£17.99
Unit price
/
per
Shipping calculated at checkout.
Couldn't load pickup availability
Donaldson P552603
Fuel Filter, Spin-On Secondary| Outer Diameter | 4.23 inch (107.5 mm) |
| Thread Size | 7/8-14 UN |
| Length | 7.95 inch (202 mm) |
| Gasket OD | 2.83 inch (72 mm) |
| Gasket ID | 2.44 inch (62 mm) |
| Efficiency 99% | 12 micron |
| Efficiency Test Std | SAE J1985 |
| Collapse Burst | 100 psi (6.9 bar) |
| Type | Secondary |
| Style | Spin-On |
| Media Type | Cellulose |
| Primary Application | CASE/CASE IH 672603C1 |
Share
Collapsible content
Specifications
Attributes
- Outer Diameter: 107.5 mm (4.23 inch)
- Thread Size: 7/8-14 UN
- Length: 202 mm (7.95 inch)
- Gasket OD: 72 mm (2.83 inch)
- Gasket ID: 62 mm (2.44 inch)
- Efficiency 99%: 12 micron
- Efficiency Test Std: SAE J1985
- Collapse Burst: 6.9 bar (100 psi)
- Type: Secondary
- Style: Spin-On
- Media Type: Cellulose
- Primary Application: CASE/CASE IH 672603C1
Packaged Dimensions
- Packaged Length: 0.35 FT
- Packaged Width: 0.35 FT
- Packaged Height: 0.68 FT
- Packaged Weight: 1.017 kg (2.24 lb)
- Packaged Volume: 0.002 m3 (0.08 ft3)
Other Information
- Country of Origin: Mexico
- NMFC Code: 069100-10
- HTS Code: 8421230090
- UPC Code: 742330044230
Cross Reference
| Manufacturer Name | Manufacturer Part Number | Notes |
|---|---|---|
| AC DELCO | TP994 | |
| AC DELCO | TP862 | |
| AC DELCO | TP1246 | |
| AG CHEM EQUIPMENT | 672603C1C2 | |
| AGCO | 706101 | |
| AGCO | 72509522 | |
| ALLIS-CHALMERS | 4036711 | |
| ALLIS-CHALMERS | 74036711 | |
| AMERICAN PARTS | 95336MP | |
| AMERICAN PARTS | 95336 | |
| AMERICAN PARTS | 95338 | |
| AMERICAN PARTS | 548 | |
| BERGERAT MONNOYEUR | E6723 | |
| BIG A | 548 | |
| BIG A | 95336 | |
| BIG A | 95337 | |
| BIG A | 95338 | |
| CASE/CASE IH | A184774 | |
| CASE/CASE IH | 1809789C1 | |
| CASE/CASE IH | 672603C1 | |
| CASE/CASE IH | 1808623C1 | |
| CASE/CASE IH | 672603C2 | |
| CASE/CASE IH | 672603C3 | |
| CATERPILLAR | 9Y4425 | |
| CATERPILLAR | 3I1262 | |
| CAV | 7111396 | |
| CHAMP | FP603 | |
| CHARDONNET | 7255260300 | |
| COOP | FF482 | |
| COOP | FF1108 | |
| COOPERS | AZF395 | |
| COOPERS | FSS4010 | |
| COOPERS | AZA395 | |
| CROSLAND | 9339 | |
| CROSLAND | 5012 | |
| CYCLONE | PM482 | |
| DELUXE | FF363 | |
| DELUXE | 363 | |
| DELUXE | 353 | |
| DELUXE | WD353 | |
| DELUXE | WD363 | |
| DOMINION | 1808623C1 | |
| DRESSER | 672603C1 | |
| DRESSER | 672603C2 | |
| DRESSER | 572603 | |
| FG WILSON | 1000051229 | |
| FG WILSON | 1000065571 | |
| FIAT | 74036711 | |
| FLO-LINE NO. | PF5019 | |
| FORD | 9576FFP552603 | |
| FORD | 9613339 | |
| FORD | 5012321 | |
| FORD | 9576P552603 | |
| FREIGHTLINER | DNP552603 | |
| FURUKAWA | 1808623C1 | |
| FURUKAWA | 672603C2 | |
| FURUKAWA | 572603 | |
| GALION | 672603C1 | |
| GALION | 672603C2 | |
| GOULD | P482 | |
| GREYFRIARS | 813S | |
| GREYFRIARS | 807S | |
| GUARDIAN | G033336 | |
| GUD | Z114 | |
| HAVAM | HD0119 | |
| IMPERIAL | 04FS1231 | |
| INGERSOLL RAND | 57419673 | |
| INTERNATIONAL | 359251C1 | |
| INTERNATIONAL | 1808623C1 | |
| INTERNATIONAL | 672603C3 | |
| INTERNATIONAL | 674293C91 | |
| INTERNATIONAL | 672603C2 | |
| INTERNATIONAL | 672603C1 | |
| INTERNATIONAL | 1809789C1 | |
| JOHN DEERE | F041795 | |
| KOMATSU | 672603C1 | |
| KOMATSU | 672603C2 | |
| KOMATSU | 3816726032 | |
| KORODY COLYER | H672603 | |
| KRALINATOR | F219 | |
| LAND ROVER | 36015019 | |
| LAND ROVER | BBU5557 | |
| LAND ROVER | 10808724 | |
| LANDA | 36015019 | |
| LEYLAND-DAF (LDV) | BBU5557 | |
| LEYLAND-DAF (LDV) | 10808724 | |
| LOCKHEED | APF3244A | |
| LOCKHEED | LK3244 | |
| LOCKHEED | AP3244 | |
| LOCKHEED | APF3424A | |
| LOCKHEED | LK3424 | |
| LOCKHEED | AP3424 | |
| ORENSTEIN & KOPPEL | 1450599 | |
| PERKINS | 26562002 | |
| PERKINS | P26562002 | |
| PERKINS | P26560137 | |
| PERKINS | P26562003 | |
| PERKINS | 26560137 | |
| PERKINS | 901243 | |
| PHILLIPS 66 | P31 | |
| PRO MATCH | 9Y4428 | |
| PRO MATCH | 9Y4425 | |
| STEWART & STEVENSON | 158805 | |
| TAYLOR | P5597007 | |
| TAYLOR | 5597007 | |
| TEXACO | HDF13 | |
| TRUCK CARE | 7206110 | |
| UNIPART | 10808724 | |
| UNIPART | BBU5557 | |
| UNITED CENTRAL INDUSTRIAL SUPP | 688732 | |
| UNIVERSAL COACH PARTS | T121084 | |
| VMC | FF552603 | |
| VMC | FS552603 | |
| VOLVO | 3130933 | |
| WALGAHN-MOTORENTECHN | 811382 | |
| WALGAHN-MOTORENTECHN | 00811382 | |
| WHITE | 170035002 | |
| WHITE | 303497518 | |
| WHITE | 303073165 | |
| WHITE | 400002510 |
Equipment Compatibility
| Equipment | Year | Equipment Type | Equipment Options | Engine | Engine Option |
|---|---|---|---|---|---|
| AGCO 9755 | - | TRACTOR | 9000 SERIES | - 9755 | - |
| AGCO 9775 | - | TRACTOR | 9000 SERIES | - 9775 | - |
| AGCO 9785 | - | TRACTOR | 9000 SERIES | - 9785 | - |
| AGCO 9815 | - | TRACTOR | 9000 SERIES | - 9815 | - |
| ALLIS-CHALMERS 4W220 | - | TRACTOR | - | - 4W220 | - |
| ALLIS-CHALMERS 8010 | - | TRACTOR | - | ALLIS-CHALMERS 433I | - |
| ALLIS-CHALMERS 8030 | - | TRACTOR | - | ALLIS-CHALMERS 649T | - |
| ALLIS-CHALMERS 8050 | - | TRACTOR | - | ALLIS-CHALMERS 649I | - |
| ALLIS-CHALMERS 8070 | - | TRACTOR | - | ALLIS-CHALMERS 670T | - |
| ALLIS-CHALMERS L3 | - | COMBINE | - | - L3 | - |
| ALLIS-CHALMERS R6 | - | COMBINE | - | - R6 | - |
| CASE/CASE IH 10 HYDRO | - | TRACTOR | - | CASE/CASE IH D436 | - |
| CASE/CASE IH 100 HYDRO | - | TRACTOR | - | - 100 HYDRO | - |
| CASE/CASE IH 1066 | - | TRACTOR | - | - 1066 | - |
| CASE/CASE IH 1066 | - | TRACTOR | - | CASE/CASE IH DT414 | - |
| CASE/CASE IH 1466 | - | TRACTOR | - | CASE/CASE IH DT436 | - |
| CASE/CASE IH 1468 | - | TRACTOR | - | CASE/CASE IH DV550B | - |
| CASE/CASE IH 1486 | - | TRACTOR | - | CASE/CASE IH DT436 | - |
| CASE/CASE IH 1566 | - | TRACTOR | - | CASE/CASE IH DT436 | - |
| CASE/CASE IH 1568 | - | TRACTOR | - | CASE/CASE IH DV550B | - |
| CASE/CASE IH 1586 | - | TRACTOR | - | - 1586 | - |
| CASE/CASE IH 1680 | - | COMBINE | 1600 SERIES | - 1680 | - |
| CASE/CASE IH 1822 | - | COTTON PICKER | - | - 1822 | - |
| CASE/CASE IH 1844 | - | COTTON PICKER | - | - 1844 | - |
| CASE/CASE IH 186 | - | TRACTOR | - | - 186 | - |
| CASE/CASE IH 186 HYDRO | - | TRACTOR | - | CASE/CASE IH D436 | - |
| CASE/CASE IH 3388 | - | TRACTOR | - | CASE/CASE IH DT436 | - |
| CASE/CASE IH 3488 | - | TRACTOR | - | INTERNATIONAL D466 | - |
| CASE/CASE IH 3588 | - | TRACTOR | - | CASE/CASE IH DT466 | - |
| CASE/CASE IH 3688 | - | TRACTOR | - | CASE/CASE IH D436 | - |
| CASE/CASE IH 3788 | - | TRACTOR | - | - 3788 | - |
| CASE/CASE IH 403 | - | COMBINE | HILLSIDE | CASE/CASE IH D360 | - |
| CASE/CASE IH 4166 | - | TRACTOR | - | CASE/CASE IH DT436 | - |
| CASE/CASE IH 4186 | - | TRACTOR | - | CASE/CASE IH DT436 | - |
| CASE/CASE IH 453 | - | COMBINE | HILLSIDE | CASE/CASE IH D360 | - |
| CASE/CASE IH 5288 | - | TRACTOR | - | CASE/CASE IH DT466B | - |
| CASE/CASE IH 5488 | - | TRACTOR | - | CASE/CASE IH DTI466 | - |
| CASE/CASE IH 5488 | - | TRACTOR | - | CASE/CASE IH DT466B | - |
| CASE/CASE IH 6388 | - | TRACTOR | - | CASE/CASE IH DT436B | - |
| CASE/CASE IH 6588 | - | TRACTOR | - | CASE/CASE IH DT466B | - |
| CASE/CASE IH 6788 | - | TRACTOR | - | CASE/CASE IH DT466B | - |
| CASE/CASE IH 70 HYDRO | - | TRACTOR | - | - 70 HYDRO | - |
| CASE/CASE IH 7288 | - | TRACTOR | - | - 7288 | - |
| CASE/CASE IH 7488 | - | TRACTOR | - | - 7488 | - |
| CASE/CASE IH 815 | - | COMBINE | - | CASE/CASE IH D414 | - |
| CASE/CASE IH 815 | - | COMBINE | - | CASE/CASE IH DT414 | - |
| CASE/CASE IH 815 | - | COMBINE | - | CASE/CASE IH DDT414 | - |
| CASE/CASE IH 886 | - | TRACTOR | - | CASE/CASE IH 360 | - |
| CASE/CASE IH 915 | - | COMBINE | - | CASE/CASE IH DDT414 | - |
| CASE/CASE IH 915 | - | COMBINE | - | CASE/CASE IH DT414 | - |
| CASE/CASE IH 966 | - | TRACTOR | - | CASE/CASE IH D414 | - |
| CASE/CASE IH 986 | - | TRACTOR | - | CASE/CASE IH D436 | - |
| CASE/CASE IH HYDRO 10 | - | TRACTOR | - | CASE/CASE IH D436 | - |
| CASE/CASE IH HYDRO 100 | - | TRACTOR | - | - HYDRO 100 | - |
| CASE/CASE IH HYDRO 70 | - | TRACTOR | - | CASE/CASE IH D312 | - |
| CASE/CASE IH HYDRO 86 | - | TRACTOR | - | CASE/CASE IH D312 | - |
| CASE/CASE IH M10A | - | FORKLIFT | M SERIES | CASE/CASE IH DT466B | - |
| HOBART D2300 | - | WELDER | - | - D2300 | - |
| HOBART D400 | - | WELDER | - | - D400 | - |
| HOBART D412 | - | WELDER | - | - D412 | - |
| HOBART DCC510 | - | WELDER | - | - DCC510 | - |
| HOBART DR353 | - | WELDER | - | - DR353 | - |
| INTERNATIONAL 2000 SERIES | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL 4700 | - | TRUCK | - | INTERNATIONAL DT360 | - |
| INTERNATIONAL 4700LP | - | TRUCK | - | INTERNATIONAL DT360 | - |
| INTERNATIONAL 4700SCD | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL 4800 | - | TRUCK | - | INTERNATIONAL DT360 | - |
| INTERNATIONAL 4800 | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL 4900 | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL 8100 SERIES | - | TRUCK | - | INTERNATIONAL DT530 | - |
| INTERNATIONAL DT360 | - | ENGINE | - | - DT360 | - |
| INTERNATIONAL DT466 | - | ENGINE | NGD MODELS | - DT466 | - |
| INTERNATIONAL DT466B | - | ENGINE | - | - DT466B | - |
| INTERNATIONAL DT530 | - | ENGINE | - | - DT530 | - |
| INTERNATIONAL DTA360 | - | ENGINE | - | - DTA360 | - |
| INTERNATIONAL PAYSTAR 5000 | - | TRUCK | - | INTERNATIONAL DT466 | - |
| INTERNATIONAL S1900 TOWMASTER | - | TRUCK | - | INTERNATIONAL DT466 | - |
| JOHN DEERE 1460 | - | COMBINE | - | - 1460 | - |
| JOHN DEERE 915 | - | COMBINE | - | - 915 | - |
| KOMATSU 100C | - | LOADER TRACKED | - | - 100C | - |
| KOMATSU 175C | - | LOADER TRACKED | - | CASE/CASE IH DT466 | - |
| KOMATSU 29B | - | EARTH MOVING EQUIPMENT | - | - 29B | - |
| KOMATSU 515 | - | LOADER WHEELED | - | CUMMINS 6BT5.9 | - |
| KOMATSU 515 | - | LOADER WHEELED | - | - 515 | - |
| KOMATSU 530 | - | LOADER WHEELED | - | CASE/CASE IH DT414 | - |
| KOMATSU 530 | - | LOADER WHEELED | - | CASE/CASE IH DT466C | - |
| KOMATSU 530 | - | LOADER WHEELED | - | - 530 | - |
| KOMATSU 540 | - | LOADER WHEELED | - | - 540 | - |
| KOMATSU E200 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT414 | - |
| KOMATSU E200 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT466 | - |
| KOMATSU E412 | - | EARTH MOVING EQUIPMENT | - | CASE/CASE IH DT466 | - |
| KOMATSU H60B | - | LOADER WHEELED | - | - H60B | - |
| KOMATSU H60E | - | LOADER WHEELED | - | - H60E | - |
| KOMATSU H65C | - | LOADER WHEELED | - | CASE/CASE IH DT414 | - |
| KOMATSU H80B | - | LOADER WHEELED | - | CASE/CASE IH DT466 | - |
| KOMATSU H80B | - | LOADER WHEELED | - | - H80B | - |
| KOMATSU H90E | - | LOADER WHEELED | - | CASE/CASE IH DT573B | - |
| KOMATSU JH65CH | - | LOADER WHEELED | - | CASE/CASE IH DT414 | - |
| KOMATSU JH90EH | - | LOADER WHEELED | - | CASE/CASE IH DVT573B | - |
| KOMATSU L175E | - | LOADER | - | - L175E | - |
| KOMATSU S10 | - | LOGGER | - | - S10 | - |
| KOMATSU TD12 | - | DOZER TRACKED | - | CASE/CASE IH D466 | - |
| KOMATSU TD12C | - | DOZER TRACKED | - | - TD12C | - |
| KOMATSU TD15B | - | DOZER TRACKED | - | CASE/CASE IH DT466 | - |
| KOMATSU TD15B | - | DOZER TRACKED | - | CASE/CASE IH DT407 | - |
| KOMATSU TD15C | - | TRACTOR TRACKED | - | - TD15C | - |
| KOMATSU TD15E LT | - | TRACTOR TRACKED | STANDARD | - TD15E LT | - |
| KOMATSU TD15E LT | - | TRACTOR TRACKED | DIRECT DRIVE | - TD15E LT | - |
