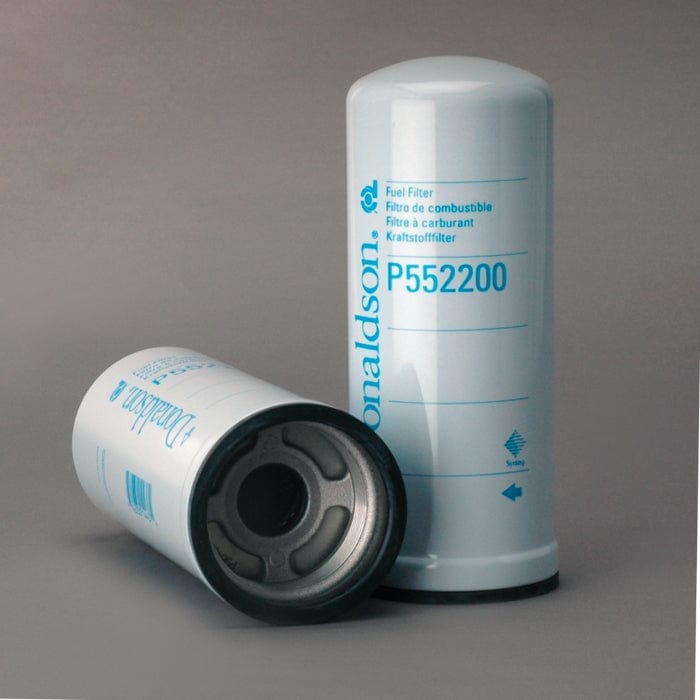

Fuel Filter, Spin-On Secondary - Donaldson P552200

Fuel Filter, Spin-On Secondary - Donaldson P552200

£31.92
£31.92
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P552200

Fuel Filter, Spin-On Secondary
Outer Diameter 3.58 inch (91 mm)
Thread Size M72 x 2
Length 9.00 inch (228.6 mm)
Gasket OD 3.72 inch (94.5 mm)
Gasket ID 3.10 inch (78.7 mm)
Efficiency 99% 8 micron
Efficiency Test Std SAE J1985
Type Secondary
Style Spin-On
Media Type Cellulose, Meltblown
Primary Application CUMMINS 4088272
View full details

Specifications

Attributes

  • Outer Diameter: 91 mm (3.58 inch)
  • Thread Size: M72 x 2
  • Length: 228.6 mm (9.00 inch)
  • Gasket OD: 94.5 mm (3.72 inch)
  • Gasket ID: 78.7 mm (3.10 inch)
  • Efficiency 99%: 8 micron
  • Efficiency Test Std: SAE J1985
  • Type: Secondary
  • Style: Spin-On
  • Media Type: Cellulose
  • Meltblown:
  • Primary Application: CUMMINS 4088272

Packaged Dimensions

  • Packaged Length: 0.093 m (3.70 inch)
  • Packaged Width: 0.088 m (3.50 inch)
  • Packaged Height: 0.225 m (9.00 inch)
  • Packaged Weight: 0.779 kg (1.72 lb)
  • Packaged Volume: 0.002 m3 (0.07 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-05
  • HTS Code: 8421230090
  • UPC Code: 742330144374

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
BIG A 95711
CUMMINS 4088272
CUMMINS 4920586
KRALINATOR F3711
MACK 2191P552200
MACK 5839FF220
MACK 3076P9644
VMC FF552200
VOLVO FF2200
VOLVO 85114047
VOLVO 4088272

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
CUMMINS ISM - ENGINE - - ISM -
CUMMINS ISX11.9 - ENGINE - - ISX11.9 -
CUMMINS ISX15 - ENGINE TIER 4 - ISX15 -
FREIGHTLINER ARGOSY - TRUCK - CUMMINS ISX -
FREIGHTLINER CASCADIA - TRUCK - CUMMINS ISX15 -
