• Donaldson Fuel Filter, Spin-On Secondary - Donaldson P550943
1 1

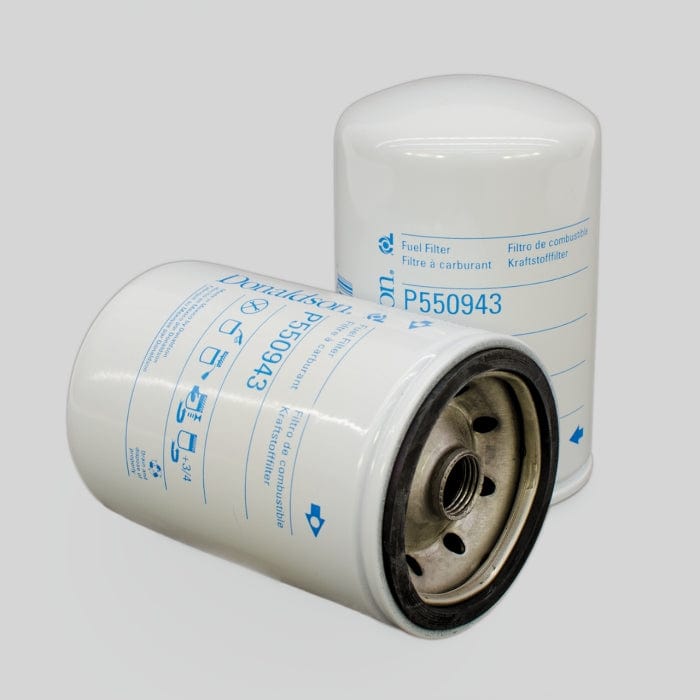

Fuel Filter, Spin-On Secondary - Donaldson P550943

Fuel Filter, Spin-On Secondary - Donaldson P550943

£6.64
£6.64
Sale Sold out
Shipping calculated at checkout.
In the unlikely event of a delivery delay exceeding 10 working days, would you accept an alternative brand equivalent? (If no, we will contact you in the event of an unexpected delay)

Donaldson P550943

Fuel Filter, Spin-On Secondary
Outer Diameter 3.03 inch (77 mm)
Thread Size M16 x 1.5
Length 4.72 inch (120 mm)
Gasket OD 2.76 inch (70.2 mm)
Gasket ID 2.38 inch (60.5 mm)
Efficiency 99% 9 micron
Efficiency Test Std ISO 19438
Type Secondary
Style Spin-On
Media Type Cellulose
View full details

Specifications

Attributes

  • Outer Diameter: 77 mm (3.03 inch)
  • Thread Size: M16 x 1.5
  • Length: 120 mm (4.72 inch)
  • Gasket OD: 70.2 mm (2.76 inch)
  • Gasket ID: 60.5 mm (2.38 inch)
  • Efficiency 99%: 9 micron
  • Efficiency Test Std: ISO 19438
  • Type: Secondary
  • Style: Spin-On
  • Media Type: Cellulose

Packaged Dimensions

  • Packaged Length: 0.078 m (3.10 inch)
  • Packaged Width: 0.078 m (3.10 inch)
  • Packaged Height: 0.115 m (4.60 inch)
  • Packaged Weight: 0.404 kg (0.89 lb)
  • Packaged Volume: 0.001 m3 (0.03 ft3)

Other Information

  • Country of Origin: Mexico
  • NMFC Code: 069100-09
  • HTS Code: 8421230090
  • UPC Code: 742330043400

Cross Reference

Manufacturer Name Manufacturer Part Number Notes
AC DELCO TP943
AMERICAN PARTS 95124
AMERICAN PARTS 3344
APOLLO LFP943F
ATLAS TP943
BIG A 3344
BIG A 95124
BOSCH-REXROTH 1457434165
CAM2 LFP943F
CARCARE DF3711
CATERPILLAR 3I1221
CATERPILLAR 9Y4421
CENEX LFP943F
CHAMP LFP943F
CHAMPION ROAD 16088000000
CHARDONNET 7255094300
CITGO LFP943F
DAVCO 350924
DEUSCH FF680
EVERGARD F59265
FIAAM FP4980
FORD 9576P550943
FREIGHTLINER DNP550943
GRANT LFP943F
GUARDIAN G033124
KOHLER GM25537
KOHLER 25537
KOHLER 41190026
KRALINATOR F156
PRO MATCH 9Y4421
QUAKER STATE QS3711
UNITED CENTRAL INDUSTRIAL SUPP 688608
VMC FF550943
WALGAHN-MOTORENTECHN 811349
WALGAHN-MOTORENTECHN 00811349
WARNER & SWASEY LFP943F

Equipment Compatibility

Equipment Year Equipment Type Equipment Options Engine Engine Option
GMC 1500 - TRUCK - GMC 6.2L V8 -
GMC 2500 - TRUCK - GMC 6.2L V8 -
GMC 3500 SERIES - TRUCK - GMC 6.2L V8 -
